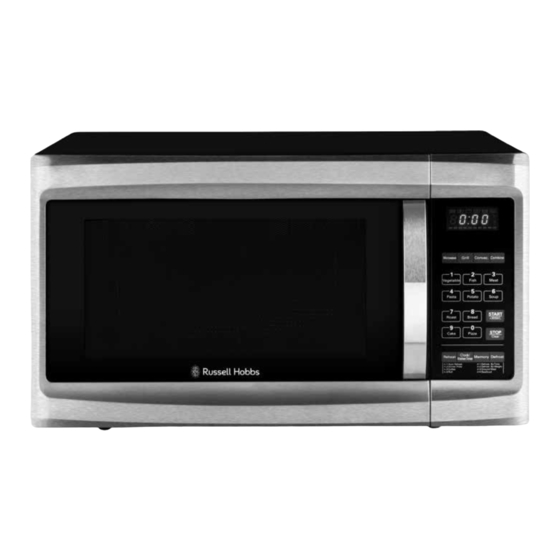

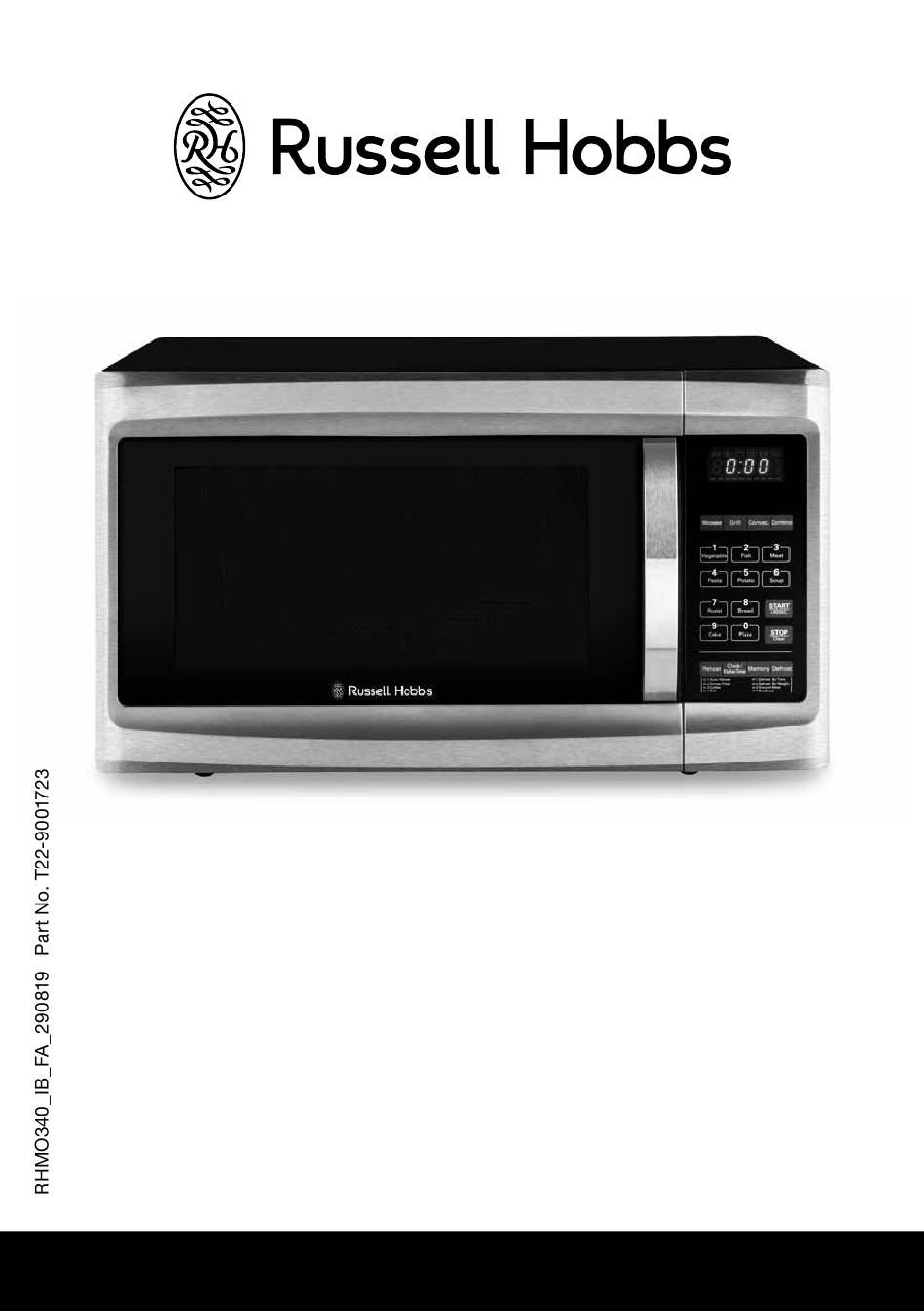

- Page 1 CONVECTION MICROWAVE OVEN & GRILL 1 YEAR WARRANTY RHMO340 INSTRUCTIONS & WARRANTY...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS General Safeguards To protect against electrical hazards do not immerse the power cord, plug, or microwave oven in water or any other liquid. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 20. This appliance is not intended to be operated by means of an external timer or separate remote control system. 21. Do not leave the microwave oven unattended when in use. Location of Oven Install or locate this microwave oven only in accordance with the installation instructions provided.
- Page 4 Do not cook food wrapped in paper towels, unless your cook book contains instructions, for the food you are cooking. Remove wire twist ties and metal handles from paper or plastic containers / bags before placing them in the oven. Only use the rack when operating in Grill or Convection cooking mode.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy. The door is fitted with safety interlock switches that prevent the microwave oven from operating with the door open.
- Page 6 To test a container / utensil for safe microwave oven use: Add 1 cup of cool water to a heat resistant glass jug and place it in the microwave oven alongside the empty container/utensil to be tested; heat for one (1) minute at maximum power. If the container/utensil you are testing is microwave oven safe (transparent to microwave energy) it should remain comfortably cool, the water in the glass jug should be hot.
- Page 7 MATERIALS YOU CAN USE IN THIS MICROWAVE OVEN NOTE: Always try to use items labelled as microwave safe to minimise any uncertainty. Aluminium foil Shielding only. Use only small amounts of foil to wrap or cover thinner sections of meat or poultry, for example, the small end of a shank or the wings of a chicken, to prevent overcooking.
-
Page 8: Materials To Be Avoided In Microwave Oven
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN Aluminium tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. - Page 9 SETTING UP YOUR OVEN NAMES OF OVEN PARTS AND ACCESSORIES Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: • Glass turntable x 1 • Turntable ring assembly x 1 •...
-
Page 10: Turntable Installation
TURNTABLE INSTALLATION Hub underside a. Never place the glass turntable upside down. The glass turntable movement should never be restricted. Glass tray b. Both glass turntable and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass turntable for cooking. -
Page 11: Operation
OPERATION Microwave cooking Grill cooking Convection oven cooking Combination cooking Number Keys: 1 – 0 / Pre-set cooking menus : Vegetables, Fish, Meat, Pasta, Potato, Soup, Roast, Bread, Cake and Pizza Start / + 30Sec. Stop / Clear Reheat Clock / Kitchen Timer 10. -
Page 12: Kitchen Timer
KITCHEN TIMER NOTE: This is a countdown timer only and does not control or start any cooking modes. During the Kitchen Timer function, other programs cannot be selected. Press ‘CLOCK/KITCHEN TIMER’ twice. The LED screen will display 00:00 with the leftmost “0”... -
Page 13: Grill Cooking
GRILL COOKING The Grill function is useful for cooking thin slices of meat, steak, chops, kebabs, sausages and pieces of chicken. It is also suitable for toasted sandwiches, grilling vegetables and melting cheese on toast. Press ‘Grill’ once. The LED screen will display ‘G-1’. NOTE: There is only one setting for grilling. - Page 14 Press the ‘START/+30SEC’ key to begin the pre-heating process. The Convection cooking icon will flash on the LED screen while it is heating. Once it has reached temperature the unit will sound twice and the temperature will flash on the LED screen. NOTE: When preheating, the cooking time cannot be input until after the unit reaches temperature and the door has been opened.
-
Page 15: Combination Cooking
COMBINATION COOKING The Combination function allows you to Microwave, Grill and Convection cook food in the same cooking session. This is useful for cooking and warming foods, then leaving a crisp brown top, such as microwaving a meat pie and browning the pastry top. You can select from four different combinations: Combinations Times... - Page 16 REHEAT There is no need to set the power level or cooking time when using the ‘Reheat’ function. Simply select the most appropriate setting for the food being reheated and its weight or quantity. Times Display Weight (g) (press ‘Reheat’) h-1 (Auto Reheat) h-2 (Dinner Plate - leftovers) 1(approximately 240g)
-
Page 17: Defrost By Time
DEFROST BY TIME Press the ‘Defrost’ key once then the LED screen will display ‘d-1’. Set the defrost time by pressing the number keys to enter the required defrosting time in minutes and seconds. For example, to cook for 1 min 30 secs, enter 1,3,0. To defrost for 15 minutes, enter 1,5,0,0. - Page 18 VEGETABLES Vegetable mode will automatically cook fresh vegetables according to the weight of the food you set. You can select a weight (see below) and the microwave will automatically set the power and time for cooking. Times (press ‘Vegetable’) Weight Time Once 150g...
- Page 19 MEAT Meat mode will automatically cook fresh meat according to the weight of the food you set. You can select a weight (see below) and the microwave will automatically set the power and time for cooking. Times (press ‘Meat’) Weight Time Once 150g...
- Page 20 POTATO Potato mode will automatically cook potatoes based on the quantity you select. You can cook up to 3 potatoes at a time. Press ‘Potato’ repeatedly until the number required appears on the LED screen. NOTE: The potato quantity has a corresponding weight: Press once = 1 or more potatoes at approximately 230 grams in total Press twice = 2 or more potatoes at approximately 460 grams in total Press 3 times = 3 or more potatoes at approximately 690 grams in total...
- Page 21 ROAST Roast mode will automatically roast meat (from raw) based on the weight you select. Times (press ‘Roast’) Weight Time Once 500g 29 mins Twice 750g 34 mins Three times 1000g 39 mins Four times 1200g 44 mins Press ‘Roast’ repeatedly until the required weight appears on the LED screen. Press ‘START/+30SEC’...
- Page 22 CAKE Cake mode will automatically bake a cake. The oven will automatically set the power and time for baking based on a weight of 475g. NOTE: There is only one weight setting available for baking a cake. Ensure the weight of the mix is approximately 475g.
-
Page 23: Multi-Stage Cooking
MEMORY This function allows you to program your own settings into the memory of the microwave oven. You can store up to 3 memory programs. Programming memories: Press ‘Memory’ repeatedly to cycle through memory locations 1 to 3. Stop on the location you wish to program. -
Page 24: Lock Function
Press ‘Microwave’ repeatedly until ‘P 80’ (for 80% power) appears. Using the number keys, enter the time in minutes and seconds -1,2,0,0. Press ‘START/+30SEC’ to commence the 2 stage defrost/microwave program that you have just set up. ENQUIRING FUNCTION You can use the ENQUIRING FUNCTION to check the time or power settings whilst the microwave is cooking. -
Page 25: Maintenance
MAINTENANCE Troubleshooting COMMON QUERIES Issue Answer Microwave oven interfering with TV reception Microwave oven may cause interference with radio and TV reception. This is similar to interference received from other small electrical appliances (such as vacuum cleaners, electric fans). Place the oven as far away from radios and television sets as possible. - Page 26 Spectrum Brands Australia Pty Ltd Spectrum Brands New Zealand Ltd Locked Bag 3004 Braeside PO Box 9817 Newmarket Victoria 3195 Australia Auckland 1149 New Zealand Customer Service in Australia Customer Service in New Zealand TollFree: 1800 623 118 TollFree: 0800 736 776 Email: info@spectrumbrands.com.au Email: service@spectrumbrands.co.nz Website: www.spectrumbrands.com.au...
- Page 27 Warranty Conditions 4. The Goods must be used in accordance with the manufacturer’s instructions. This Warranty does not apply should the defect in or failure of the Goods be attributable to misuse, abuse, accident or non-observance of manufacturer’s instructions on the part of the user.
- Page 28 RUSSELL HOBBS® and logo are Trade Marks of Spectrum Brands, Inc., or one of its subsidiaries. Manufactured in China to Spectrum Brands specifications. © 2019 Spectrum Brands, Inc.
