MOUNT INSTALLATIONS
MOUNT INSTALLATIONS
"S" Mount
"SL" Mount
REMARK: Be careful during installation do not use too much strenght but tighten the metal
ring A by means of the suitable tool. TIGHTENING TORQUE: 3 4 Nm
ATTENZIONE: Porre attenzione durante l'installazione. Non serrare con troppa forza ma avvitare
l'anello metallico A utilizzando la chiave adeguata. COPPIA DI SERRAGGIO: 3 4 Nm
ALTERNATIVE MOUNT TYPE
ALTERNATIVE MOUNT TYPE
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/08/2010 - Cod. ID388
42 mm
1"-3/5
A
39 mm
1"-1/2
MAG 125 S Black:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 127 mm
Materials: Chromed Brass, Nylon, Rubber
Cable: 3.6 m RG 58 / PL 259 R male
Antenna connection: UHF-female
P/N 2502602.02 MAG 125 S Black
SKA 47/135
SKA 47/135

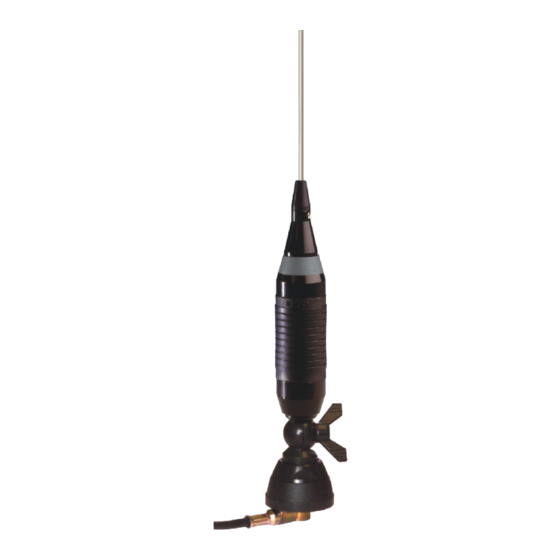

Dual band VHF Mobile Antenna 47...63 & 135...175 MHz
Advertisement
Table of Contents
Related Manuals for Sirio Antenne SKA 47/135
Summary of Contents for Sirio Antenne SKA 47/135

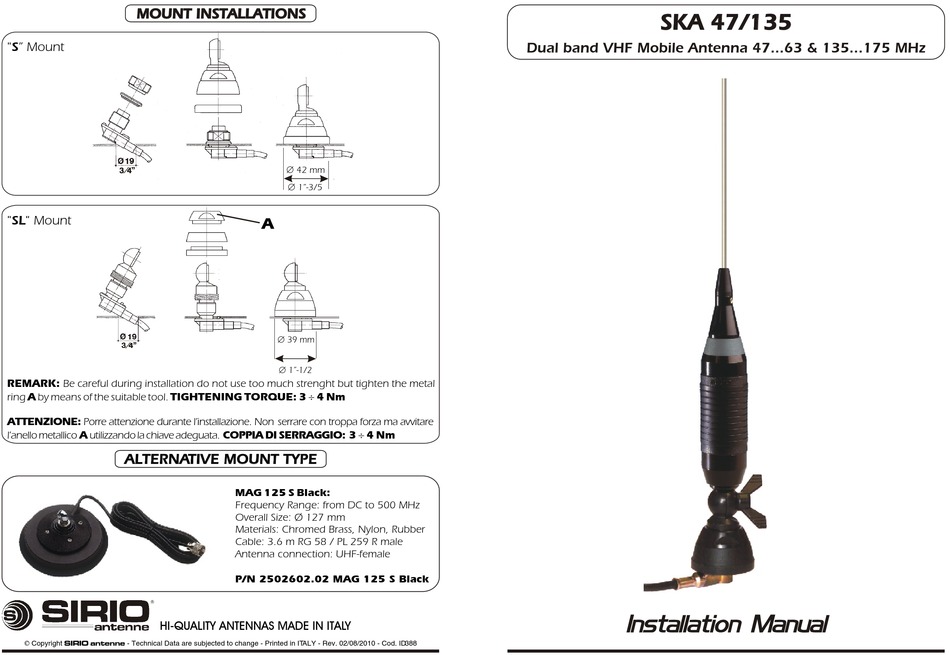

- Page 1 Cable: 3.6 m RG 58 / PL 259 R male Antenna connection: UHF-female P/N 2502602.02 MAG 125 S Black HI-QUALITY ANTENNAS MADE IN ITALY B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/08/2010 - Cod. ID388...
