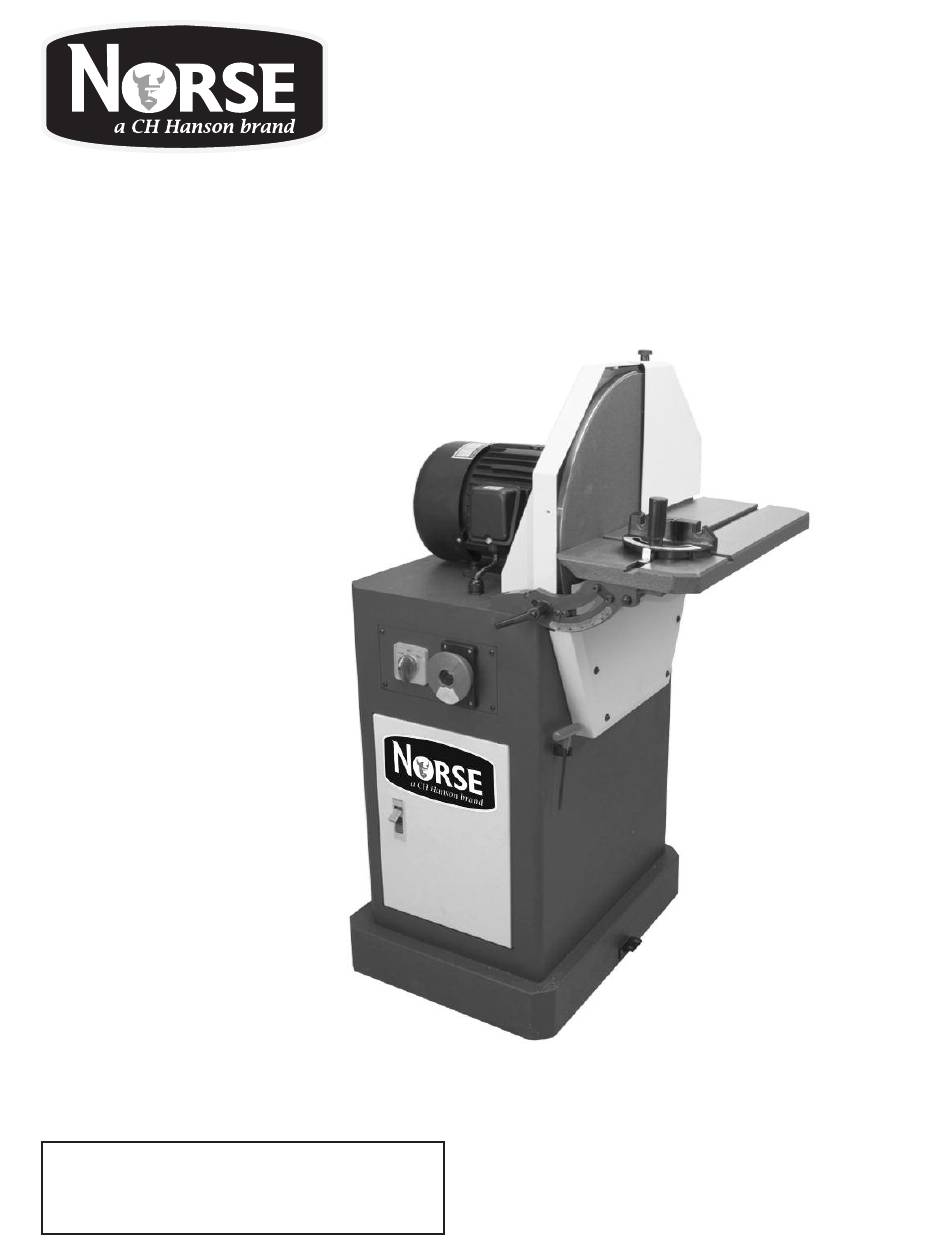

- Page 1 Operating Manual & Parts List 9681310 & 9681311 DISC SANDER with Stand Read carefully and follow all safety rules and operating instructions before first use of this product. 9644211.01-0519...
- Page 2 Model #: ___________________ Serial #: ____________________ Purch. Date: ________________...
-
Page 3: Getting Started
NORSE Operating Manual & Parts List 9681310 & 9681311 GETTING STARTED • All tools should be visually inspected before use, in addition to regular periodic maintenance inspections. Save this manual • Be sure that the voltage labeled on the unit matches your You will need this manual for the safety warnings and power supply. -
Page 4: Specifications
NORSE Operating Manual & Parts List 9681310 & 9681311 three wires of the extension cord should be of the proper • Never operate the machine without the disc guards in place. gauge. • Completely disconnect this machine from its power source •... - Page 5 NORSE Operating Manual & Parts List 9681310 & 9681311 Electrical connections ASSEMBLY/INSTALLATION Make sure the tool is off before plugging it This tool must be connected to or plugged into a power source to prevent accidental into a properly grounded outlet. Never starts.
-
Page 6: Operation
NORSE Operating Manual & Parts List 9681310 & 9681311 ASSEMBLY/INSTALLATION (CONTINUED) OPERATION Lifting and setting up the machine Dusty work environments may be hazardous to your health. Always wear a Shown below are the dimensions for the disc sanding machines. OSHA/NIOSH approved, properly fitting face mask or You can use the information below to place your machine into its respirator. - Page 7 NORSE Operating Manual & Parts List 9681310 & 9681311 Table parallel alignment to disc Table parallel alignment to disc Table parallel alignment to disc lel alignment to disc Use the supplied 4 mm hex wrench attached to the base to Use the supplied 4 mm hex wrench attached to the base to Use the supplied 4 mm hex wrench attached to the base to remove the four hex bolts (C) holding on the lower guard.
-
Page 8: Troubleshooting Guide
NORSE Operating Manual & Parts List 9681310 & 9681311 urn the pointer from the middle OFF position to the left urn the pointer from the middle OFF position to the left urn the pointer from the middle OFF position to the left urn the pointer from the middle OFF position to the left FOR position, and the disc will spin in the counter-clockwise FOR position, and the disc will spin in the counter-clockwise... - Page 9 NORSE Operating Manual & Parts List 9681310 & 9681311 TROUBLESHOOTING GUIDE Symptom Possible Cause(s) Corrective Action Disc sander will not start or Disc sander is connected to an Confirm disc sander is connected to power and source restart. Machine trips circuit inappropriate power source.
- Page 10 NORSE Operating Manual & Parts List 9681310 & 9681311 WIRING DIAGRAM - MODEL 9681310 - 16” DISC SANDER WIRING DIAGRAM - MODEL 9681314 - 16” DISC SANDER...
- Page 11 NORSE Operating Manual & Parts List 9681310 & 9681311 WIRING DIAGRAM - MODEL 9681311 - 20” DISC SANDER WIRING DIAGRAM - MODEL 9681315 - 20” DISC SANDER...
- Page 12 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS ILLUSTRATION - MODEL 9681310 - 16” DISC SANDER REPAIR PARTS ILLUSTRATION FOR MODEL 9681314 - 16” DISC SANDER...
- Page 13 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS LIST - MODEL 9681310 - 16” DISC SANDER REPAIR PARTS LIST FOR MODEL 9681314 - 16” DISC SANDER Ref. Ref. Description Part No. Qty. Description Part No. Qty. Motor (1.5HP, 115V, 60Hz, 1PH, 4P) 9642598.01 Pointer 9642623.01...
- Page 14 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS ILLUSTRATION - MODEL 9681311 - 20” DISC SANDER REPAIR PARTS ILLUSTRATION FOR MODELS 9681315, 9681316 AND 9681317 - 20” DISC SANDERS...
- Page 15 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS LIST - MODEL 9681311 - 20” DISC SANDER REPAIR PARTS LIST FOR MODEL 9681315, 9681316 AND 9681317 - 20” DISC SANDERS Ref. Ref. Description Part No. Qty. Description Part No. Qty.
- Page 16 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS ILLUSTRATION FOR MITER GAUGE - MODELS 9681310 & 9681311 - DISC SANDERS REPAIR PARTS ILLUSTRATION FOR MITER GAUGE, MODELS 9681314, 9681315 AND 9681316 - DISC SANDERS...
- Page 17 NORSE Operating Manual & Parts List 9681310 & 9681311 REPAIR PARTS LIST FOR MITER GAUGE - MODELS 9681310 & 9681311 - DISC SANDERS REPAIR PARTS LIST FOR MITER GAUGE - 9681314, 9681315, 9681316 AND 9681317 - DISC SANDERS Ref. Ref. Description Part No.
- Page 18 NORSE Operating Manual & Parts List 9681310 & 9681311 NOTES...
- Page 19 NORSE Operating Manual & Parts List 9681310 & 9681311 NOTES...
- Page 20 NORSE Operating Manual & Parts List 9681310 & 9681311 NORSE WARRANTY NORSE by C.H. Hanson warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which it was intended.
