SunFounder Bionic Robot Lizard Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

About SunFounder
SunFounder is a technology company focused on Raspberry Pi and Arduino open source
community development. Committed to the promotion of open source culture, we strive to
bring the fun of electronics making to people all around the world and enable everyone to be a
maker. Our products include learning kits, development boards, robots, sensor modules and
development tools. In addition to high quality products, SunFounder also offers video tutorials
to help you build your own project. If you have interest in open source or making something
cool, welcome to join us! Visit
About This Kit
In this book, we will show you how to build the bionic robot via description, illustrations of
physical components, in both hardware and software respects. You may visit our
website
www.sunfounder.com
on
LEARN -> Get Tutorials
Free Support
If you have any TECHNICAL questions, add a topic under
website and we'll reply as soon as possible.
For NON-TECH questions like order and shipment issues, please
service@sunfounder.com. You're also welcomed to share your projects on FORUM.
Preface
www.sunfounder.com
to download the related code and view the user manual
and watch related videos under VIDEO.
for more!
FORUM
www.sunfounder.com
section on our
send an email to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bionic Robot Lizard and is the answer not in the manual?

Questions and answers

Related Manuals for SunFounder Bionic Robot Lizard

Summary of Contents for SunFounder Bionic Robot Lizard

  • Page 1 Preface About SunFounder SunFounder is a technology company focused on Raspberry Pi and Arduino open source community development. Committed to the promotion of open source culture, we strive to bring the fun of electronics making to people all around the world and enable everyone to be a maker.

  • Page 2: Table Of Contents

    Mechanical Fasteners ............................2 Electrical Components ............................3 Introduction ..................................5 Get Started ..................................6 Arduino ..................................6 Arduino Board – SunFounder Compatible ..................6 Install Arduino IDE ............................6 Install the Driver ............................7 Add Libraries..............................7 Test ...................................... 9 Assembly ..................................

  • Page 3: Components List

    Components List Acrylic Plate You need to clean the acrylic plates before using. Here takes one plate as example. Clean the residue by a tool with sharp Remove the stickers on the two faces of point. the plate.

  • Page 4: Mechanical Fasteners

    Mechanical Fasteners Name Components Qty. M1.2 x 4mm Self-tapping Screw M2 x 10 Screw M2 x 14 Screw M2.5 x 8 Screw M2.5 x 10 Screw M3 x 6 Screw M3 x 12 Screw M2 Nut M2.5 Nut M3 Self-locking Nut M2.5*13 Copper Standoff...

  • Page 5: Electrical Components

    Electrical Components Name Components Qty. 9g SF0180 Servo Nano board Expansion board 2S battery Cable Spiral Wrap Velcro Tape （Length 35mm） Mini USB Cable...
  • Page 6 IR Remote Control IR Receiver Module 3Pin-Anti-reverse Cable 2S Lithium Battery USB Charger Cable Phillips Screw Driver Cross Socket Wrench...

  • Page 7: Introduction

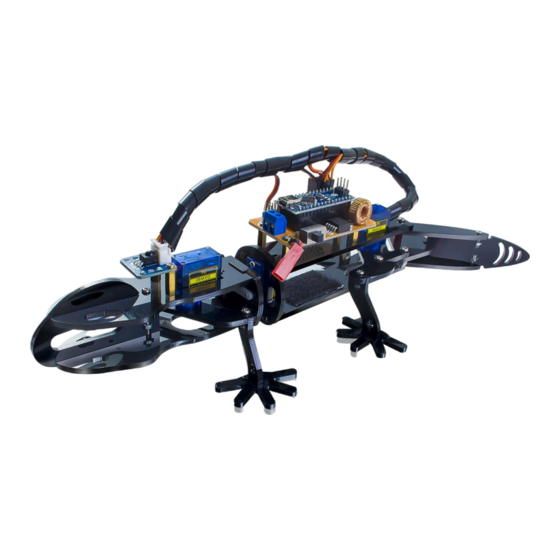

    Introduction This is a bionic robot - Lizard. It is control walking by three servos, the walking shape is imitate Lizard and looks flexible and vivid. Infrared module is equipped, you can control the Lizard walk by the remote controller.
