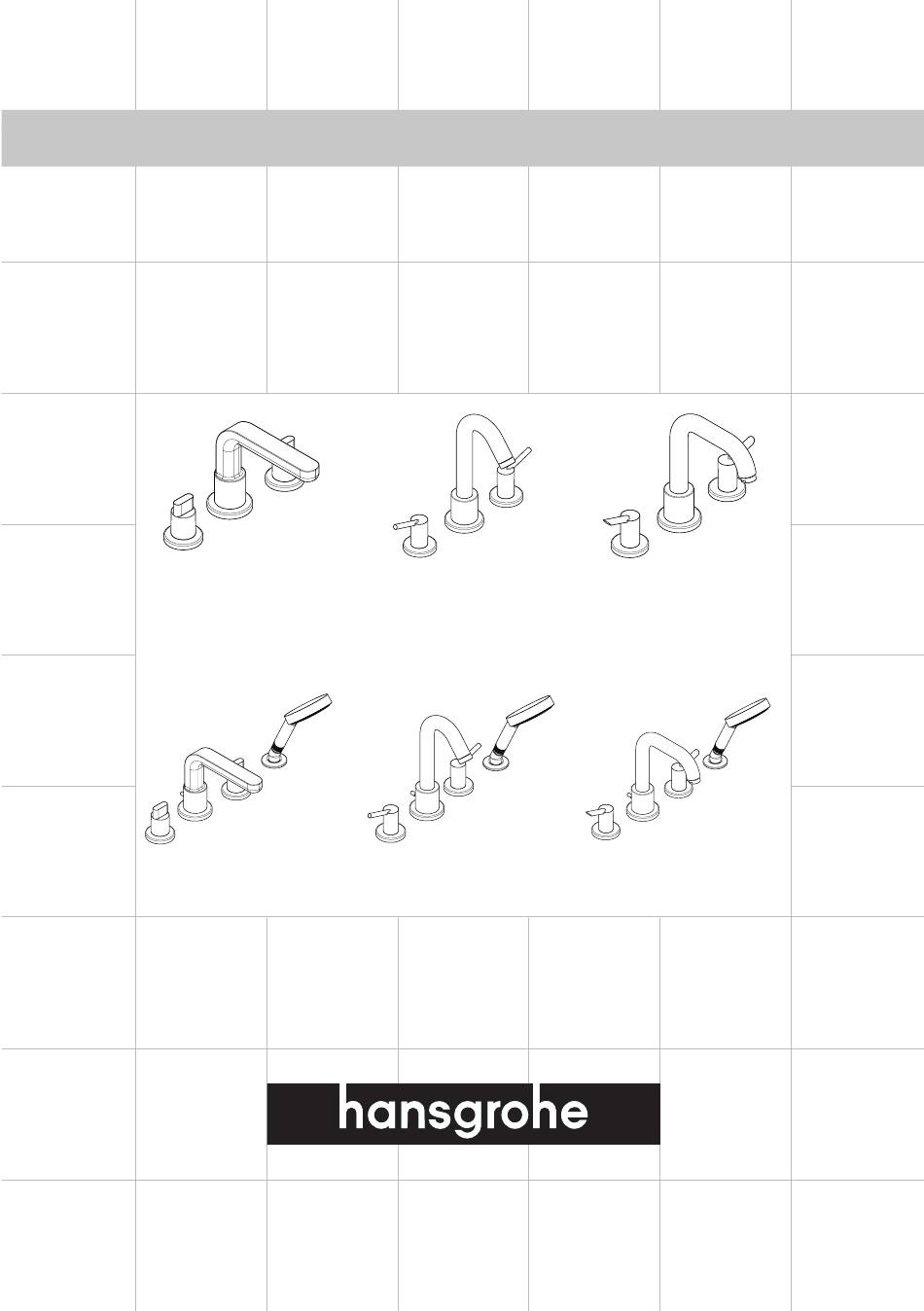

- Page 1 Installation Instructions / Warranty Talis Focus Metris 32313XX1 31732XX1 31436XX1 Metris Talis Focus 31446XX1 32314XX1 31733XX1...
-
Page 2: Installation Considerations
Trim, 3- and 4-Hole Roman Tub Sets 3-Hole 4-Hole Metris 31436001 31446001 Focus 31732001 31733001 Talis 32313XX1 32314XX1 Installation Considerations The 4-Hole Roman Tub Set trim kits require rough 06646000. The 3-Hole trim kits require rough 06607000. The rough valves are not included. The rough must be installed and the mounting surface complete and made watertight before instal- lation of this trim kit. - Page 3 32313XX1 32314XX1 31732XX1 31733XX1...
-
Page 4: Install The Handles
Installation - 3-Hole Trim Kits If you are using a 4-Hole set, please turn to page 6 Install the Handles Remove the plaster shields from the hot and cold valves and the spout tee. Install the handle escutcheons. Install the white plastic snap connectors and the screws. Push the handle down firmly over the snap connectors. - Page 5 Push the spout sealing ring firmly into the spout tee. Install the spout escutcheon. Press the spout over the spout tee. Install and tighten the set screw with a 3 mm Allen wrench. CAUTION: do not overtighten the set screw or the o-rings on the diverter will deform, which will cause a leak.
- Page 6 Installation - 4-Hole Trim Kits Install the Handles Remove the plaster shields from the hot and cold valves and the spout tee. Install the escutcheons. Install the white plastic snap connectors and screws. Push the handle down firmly over the snap connector. Assemble the Diverter and Spout Remove the brass plug from the tee.
- Page 7 Press the diverter assembly firmly into the spout tee until it is fully seated. Turn the guide bushing so that the slot faces the rear of the spout. Install the spout escutcheon. Firmly press the spout over the tee and diverter. Tighten the set screw with the included 3 mm Allen wrench.
- Page 8 Install the Handshower Holder Escutcheon and Handshower (4-Hole version only) Install the check valve in the elbow, with the arrow pointing in the direction of the water flow. Remove the plaster shield from the handshower holder. Pull out on the handshower hose. Screw the handshower holder escutcheon into place.
-
Page 9: Scale Removal
Scale Removal The Raindance Air 1-jet handshower incorporates the Rubit cleaning system. If scale deposits are noticed in the spray channels, turn the water on lightly and rub the spray channels with a finger or a sponge. If scale deposits are noticed on the spray face, pour about 3/4”... - Page 10 Replacement Parts 3-Hole Roman Tub Sets Metris Talis Focus...
- Page 11 Replacement Parts 4-Hole Roman Tub Sets 14x2.5 23x2.5 22x2 x2.5 Metris 14x2.5 14x2.5 23x2.5 23x2.5 22x2 22x2 x2.5 x2.5 Focus Talis...
- Page 12 Replacement Parts (see pages 10 & 11) aerator 1356XX0 spout escutcheon 777XX0 sealing ring 512000 snap connector 414000 diverter 6775000 diverter knob 707XX0 handshower 250XX1 check valve 4074000 handshower escutcheon 715XX0 10 elbow 2071XX0 11 spout 3105XX0 12 hot handle 3106XX0 13 cold handle 3107XX0...
-
