Mounting Instructions
For PC5921, PC5921EXT and PC5921EXT/R
Directions:
1 Locate the desired placement of the unit.

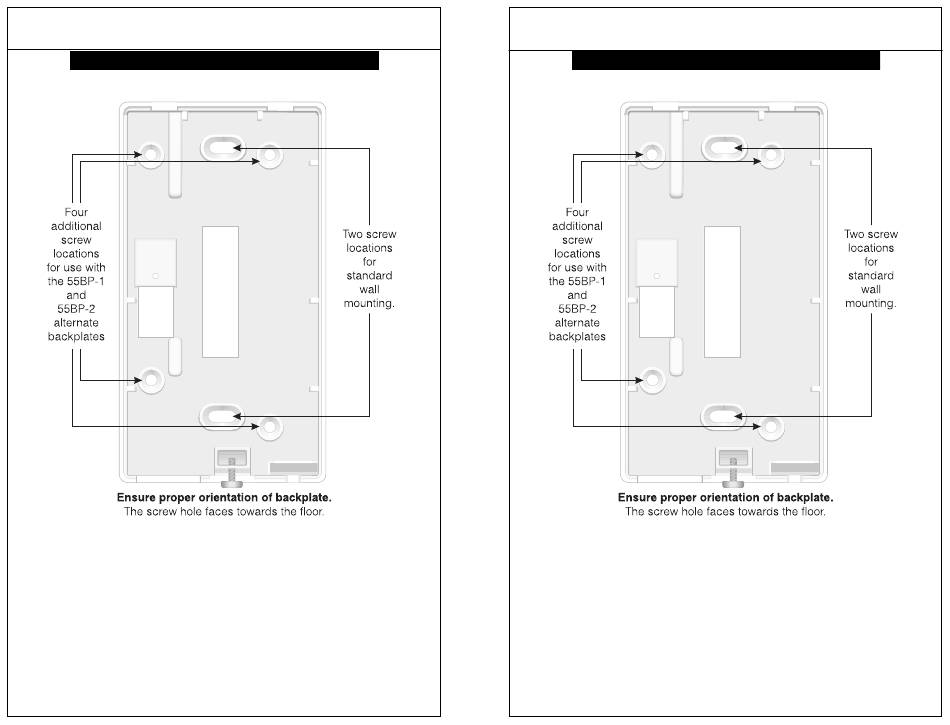

2 Place the backplate against the wall and mark the
desired screw locations.
3 We suggest that wall anchors be used for all screw
locations. When the anchors have been placed, secure
the backplate to the wall.
4 Secure the front to the backplate.
29002294 R0
Mounting Instructions
For PC5921, PC5921EXT and PC5921EXT/R
Directions:
1 Locate the desired placement of the unit.
2 Place the backplate against the wall and mark the
desired screw locations.
3 We suggest that wall anchors be used for all screw
locations. When the anchors have been placed, secure
the backplate to the wall.
4 Secure the front to the backplate.
29002294 R0
