Replacing a JCS 1200 Management Module Filler Tray
Removing a JCS 1200 Management Module Filler Tray
Topics include:
Removing a JCS 1200 Management Module Filler Tray on page 1
Installing a JCS 1200 Management Module Filler Tray on page 2
Figure 1 on page 1 shows how to remove and install a management module filler
tray.

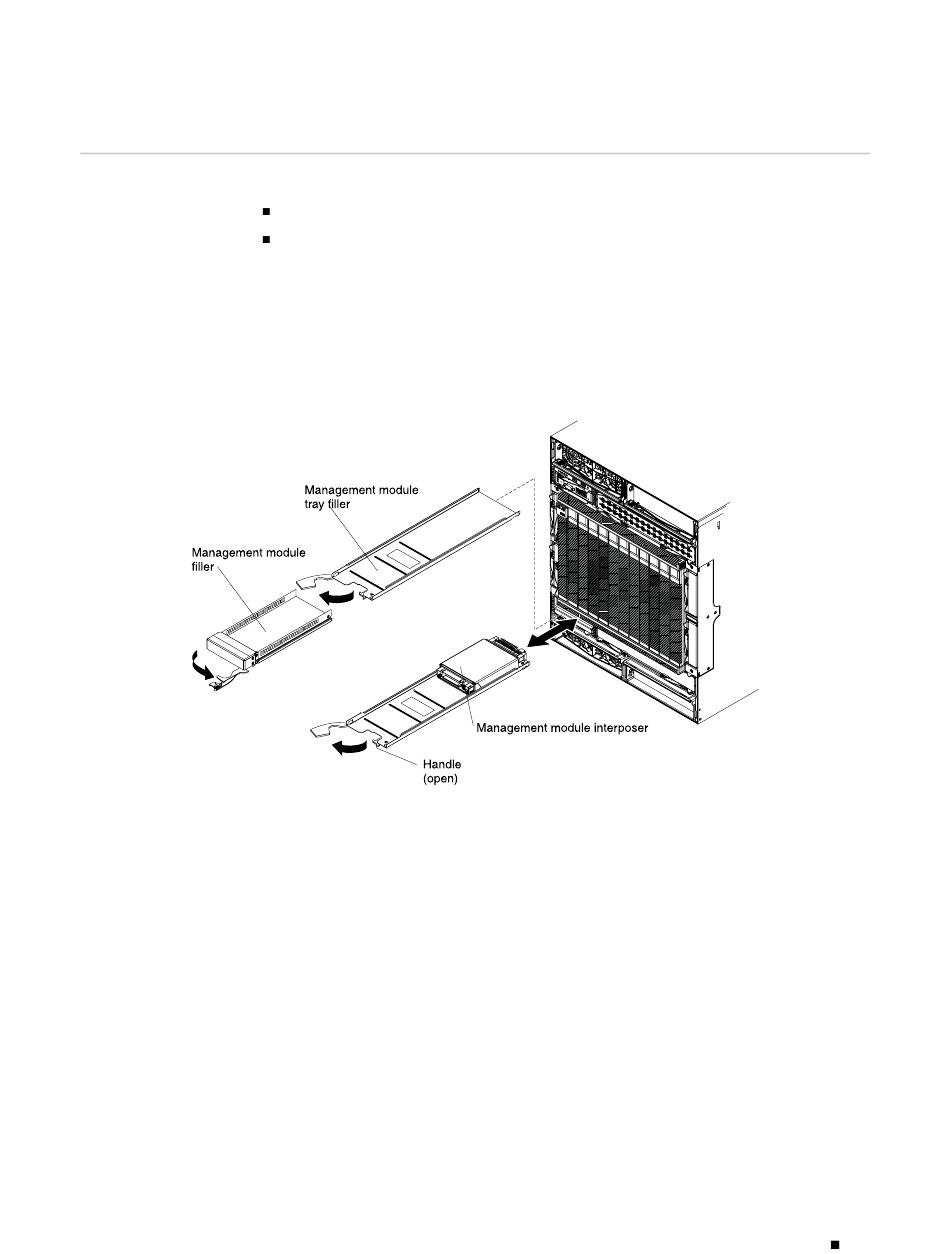

Figure 1: Removing and Installing a JCS 1200 Management Module Filler Tray
To remove a management module filler tray (see Figure 1 on page 1):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and
1.
connect the strap to one of the ESD points on the chassis.
Remove the management module or filler from the management module bay
2.
(see Removing a JCS 1200 Management Module or Module Filler).
Pull the management module filler tray release handle to the open position. The
3.
filler tray moves out of the bay approximately 0.25 in. (0.6 cm).
Slide the filler tray out of the bay.
4.
