Human Touch HT-3010 Replacing Instructions

It is imperative that Human Touch products are repaired in a manner that ensures product safety and regulatory compliance and that is fully consistent with the practices used
®
during the manufacturing process. Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair
instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
Tools Required: Phillips-head screwdriver, nail clipper or other instrument suitable for cutting zip ties, new zip tie, paper clip.
NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

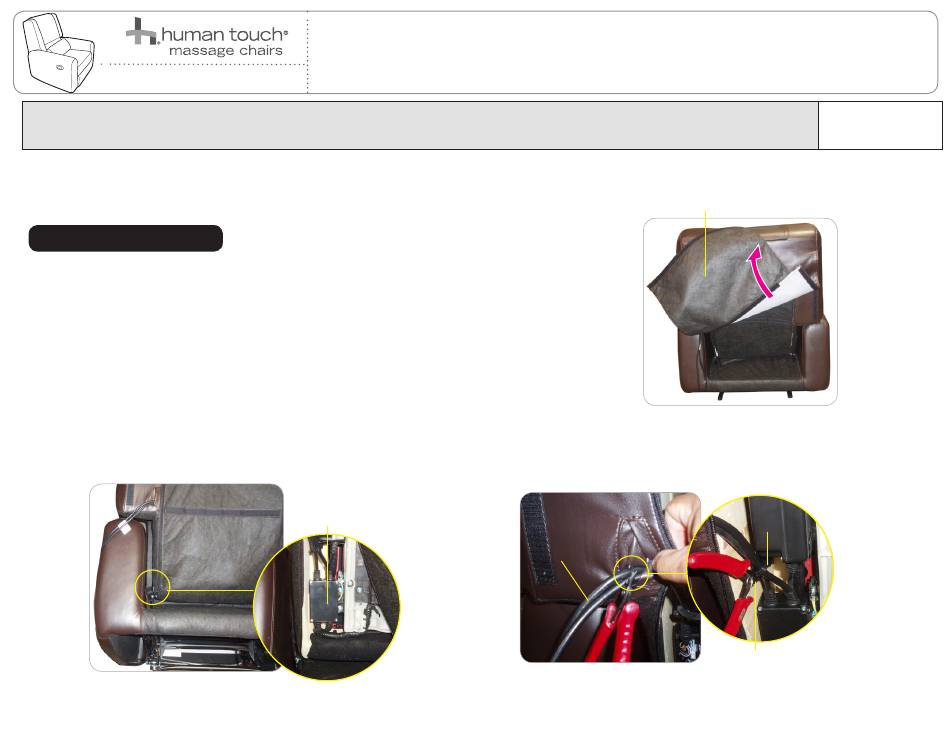

REMOVING THE CONTROLLER

1. Facing the back of the chair, pull up on the lower edge of the backrest cover then flip it over the top of
the backrest. (Fig.1)
2. Insert the end of a paper clip into the zipper, then open the zipper to expose the connector junction box. (Fig.2)
3. Follow the controller cord to the backrest until you locate the zip tie that secures the cord to the backrest. (Fig.3)
4. Using a nail clipper or other instrument suitable for cutting zip ties, cut and remove the zip tie. (Fig.3)
HT-3010
Connector
junction box
(Fig.2)

REPLACING THE CONTROLLER

Controller cord
Backrest cover
(Fig.1)
Zip ties
Nail clipper
(Fig.3)
October 08, 2010 X1103
SERVICE LEVEL: 2
1
