UTEPO N3-GSW0802T-POE User Manual

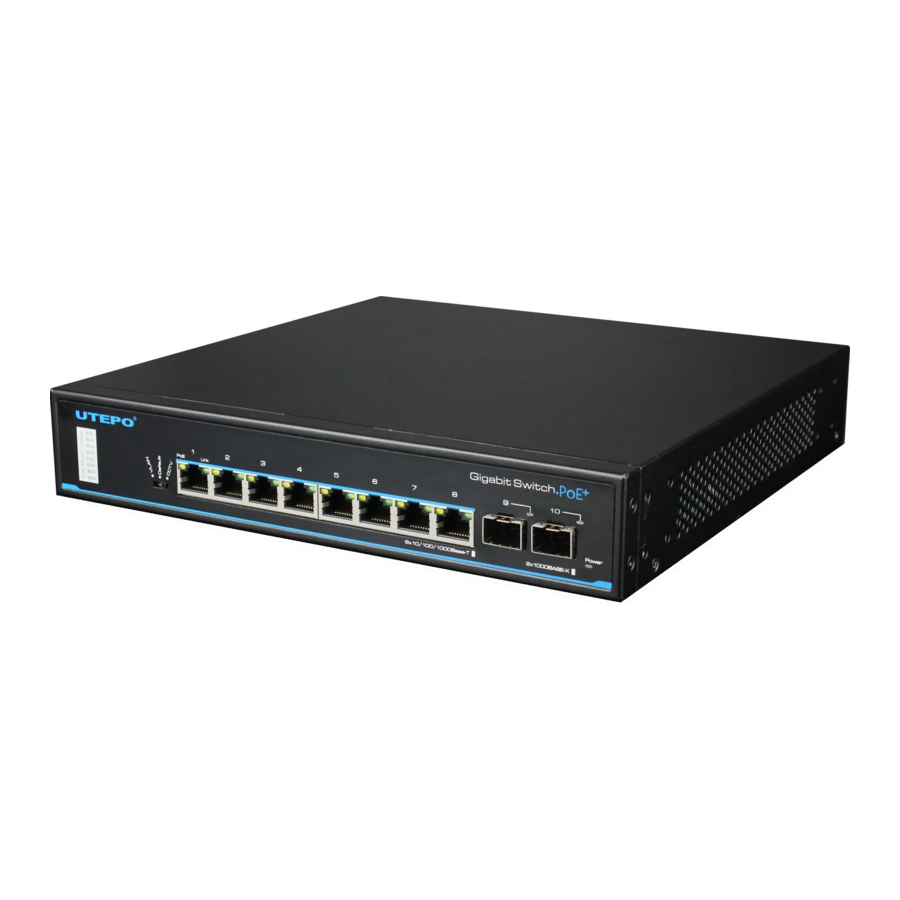

8 Ports Gigabit PoE Ethernet Switch
8 Ports Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit
Ethernet access and PoE applications. It provides eight Gigabit downlink ports, two Gigabit uplink
Ethernet port, The eight downlink ports support 802.3af/at standard and feature Max 30W PoE
power output of single port, Max 135W of whole machine. Support three kinds of work mode
(Default, VLAN, CCTV), and supports 8 LED digital tube display machine PoE power usage. It can
be widely used in security surveillance, hotels, schools, SMB engineer
Application
IP Camera
IP Camera
AP
AP
AP
Feature
Main Function: Provide 8*10/100/1000Base-T Ethernet ports(PoE) ,2* 10/100/1000BASE-T
Ethernet ports ;
Compliance with standards: IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、
IEEE802.3X、 IEEE802.3af/at;
PoE Power Display: Support 8 LED digital tube display machine POE power usage. whole
machine reaches 135W PoE power output;
One-key Smart: Support three kinds of working modes (Default, VLAN, CCTV);
Protection: Support 6KV surge immunity, EFT testing standard;
Operation Environment: Support -10℃~45℃ wide-temperature;
Operation: Plug&play, convenient to use, support desktop, wall-mounted installations.
Notice
The transmission distance depends on the signal source and cable quality; standard Cat5e/6
Ethernet cable is strongly suggested for reaching the maximum transmission distance!
1
User Manual
V1.0
ing and other occasions.
L C
D
8 Ports Gigabit PoE Ethernet Switch

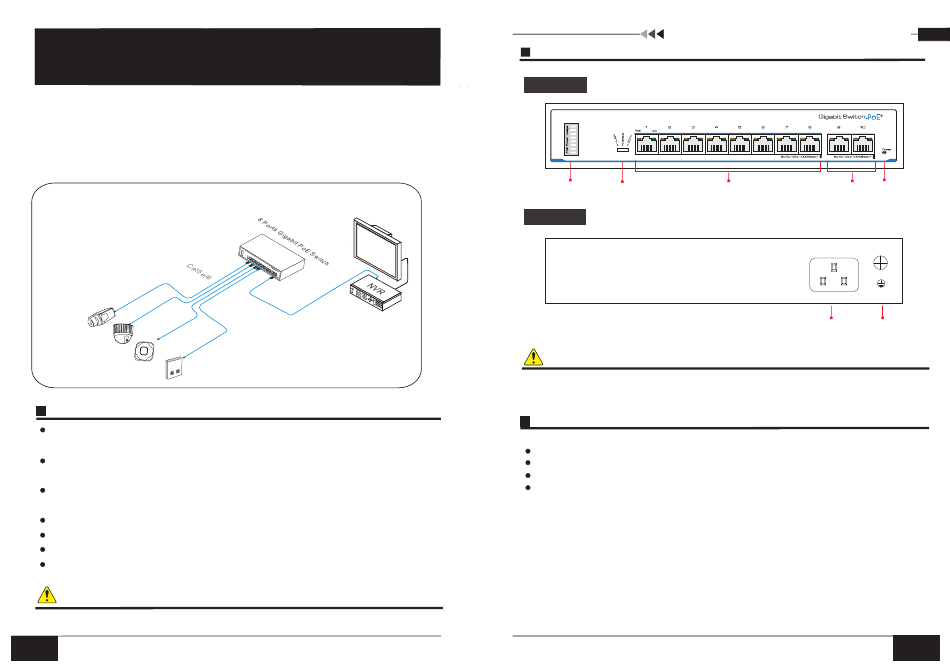

Board Diagram
Front Board
POE power display
PoE Ethernet Ports
One key smart
Back Board
Notice
1) Device must be connected with lightning protection grounding; otherwise protection level will be
greatly reduced; please use above No.20 wire to connect the grounding terminal;
2) The device requires rebooting after the dial switch has been utilized.
Installaiton Steps
Please check the following items before installation, if it is missing, please contact the dealer.
Ethernet Switch
AC Power Cable
Accessory
User Manual
Please follow installation steps as below:
1) Turn off the power of all the related devices before the installation; otherwise the device would be
damaged;
2 Connect PoE cameras with 1~8 downlink ports of product by Ethernet cable; )
3 Connect UPLINK port of product with NVR or PC by Ethernet cable; )
4) Connect power adapter;
5) Check if the installation is correct, equipment is in good condition, the connection is stable,then
power on for system;
6) Ensure the Ethernet equipment with power on can work properly.
4口百兆以太网交换机
Power LED
Uplink Ethernet Port
Power Port Grounding
1pc
1pc
1pc
1pc
2
