4 Ports PoE Ethernet Switch
User Manual
4 ports PoE Ethernet Switch is a
security surveillance Ethernet Switch which
high definition surveillance and security system. The product fully combines the characteristics
of security surveillance, provides fast packet forwarding ability and abundant backplane
bandwidth, which ensures clear image and fluent transmission. ESD and surge protection
circuit can improve product stability. The product supports one key CCTV model, with
function can restrain the nentwork storm, protect the information security, prevent the viral
transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and
Ethernet project needs.
Application
PoE IP Camera
PoE Dome Camera
PoE IP Camera
PoE PTZ Camera
Feature
● Major ports: 1pcs*100Mbps uplink Ethernet port, 4pcs*100Mbps downlink Ethernet
ports , every port supports MDI/MDIX;
● Special function:
One key CCTV model 1 4
with uplink ports;
● Power input: DC48V~57V;
● Transmission Distance : Ethernet port 0~100m;
could reach 250m in CCTV model; Uplink port can reach 100m;
● Standard: Meet IEEE802.3 ,IEEE802.3u,IEEE802.3 af/at standards, PoE use
End-Span, the spare cable can be of other use;
● Protection: Excellent anti-thunder, anti-static and anti-interference ability;
● Appearance: Delicate design and easy installation, configure the anti-theft lock
hole, guard against theft;
●Operation: Plug and Play, No Setting required.
Notice
The transmission distance is related to the connected cable. We suggest standard
Cat5e/6 network cable, so the transmission distance can up tofurthest!
1
VerB 1.3
aims at Ethernet
L C
;
~
downlink ports can only communicate
the furthest transmission distance

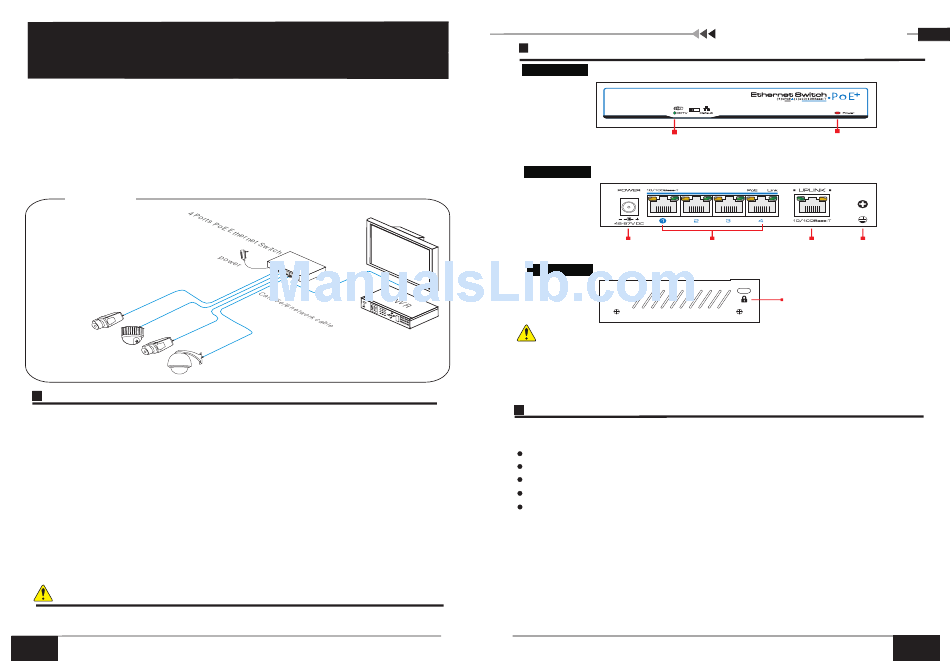

Board Diagram
Front board
VLAN
Back board
D
Side board
Notice
1
)
Device must be connected with lightning protection grounding; otherwise protection
level will reduce; please use above No.20 wire to connect the grounding terminal.
2
) Turn the dial switch for left, the equipment can enter surveillance module after providing
equipment power.
Installation steps
Please check the following items before installation, if it is missing, please contact the
dealer .
4 ports PoE Ethernet Switch
Power adaptor
AC power cable
Accessory
User manual
Please follow the below installation steps
1) Please turn off the signal power and display device power before installation, or it will
damage the transmission equipment;
2) Use network cable connect PoE IP camera and
3)
Use a network cable connect equipment uplink port and NVR or computer;
4)
Connect power adapter;
5) Check if the installation is correct, equipment is in good condition, the connection is stable,
then power on for system;
6) Ensure the Ethernet equipment with power on can work properly.
4 Ports PoE Ethernet Switch
Surveillance module
indicated light
normally on
Power
PoE downlink
Ethernet port Ground
input port
Ethernet port
1~4 downlink ports of product respectively;
Power
indicated light
Anti-Theft Lock
1pcs
1pcs
1pcs
1pcs
1pcs
2
