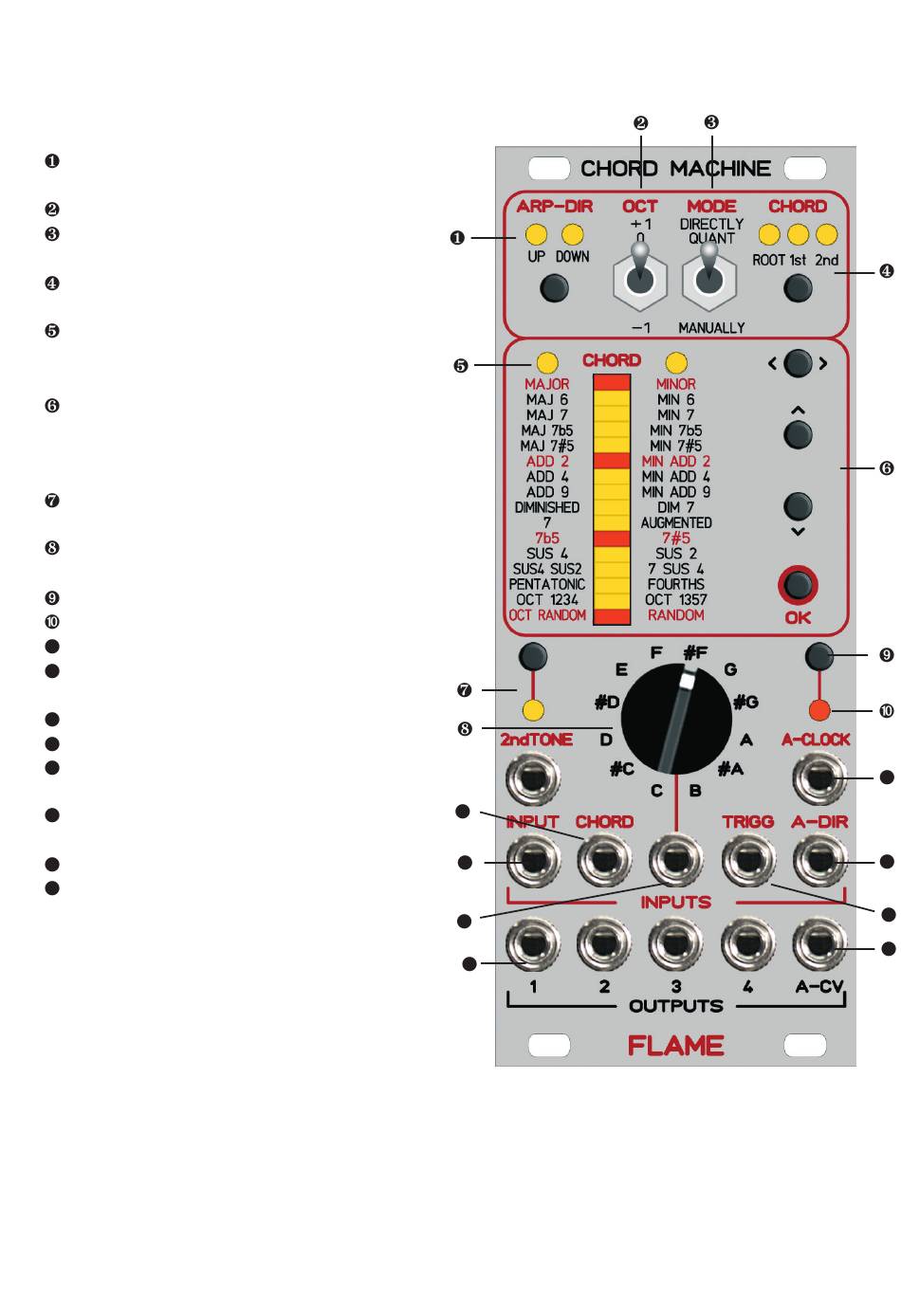

2.2 Module overview

LEDs/button Arpeggiator play mode
switch OCT (octaves)
switch MODE
LEDs/button chord variations
LEDs chord bank left/right
LEDs chords
button <> select chord bank
button select chord up/down
button OK
button/LED/input 2ndTone
rotary switch KEYNOTE manually
button Step Arpeggio manually
LED Step Arpeggio
Clock input Step Arpeggio
11
Clock input Arpeggio direction
12
CV INPUT chord spread / quantizer
13
CV CHORD input for chord select
14
CV TRANSPOSE input
15
(Keynote/Octaves/directly)
Trigger input OK
16
CV outputs 1..4 (chord notes 1..4)
17
CV output A-CV (arpeggiator note)
18
14
13
15
17
4
11
12
16
18
