Summary of Contents for Flame Clockwork

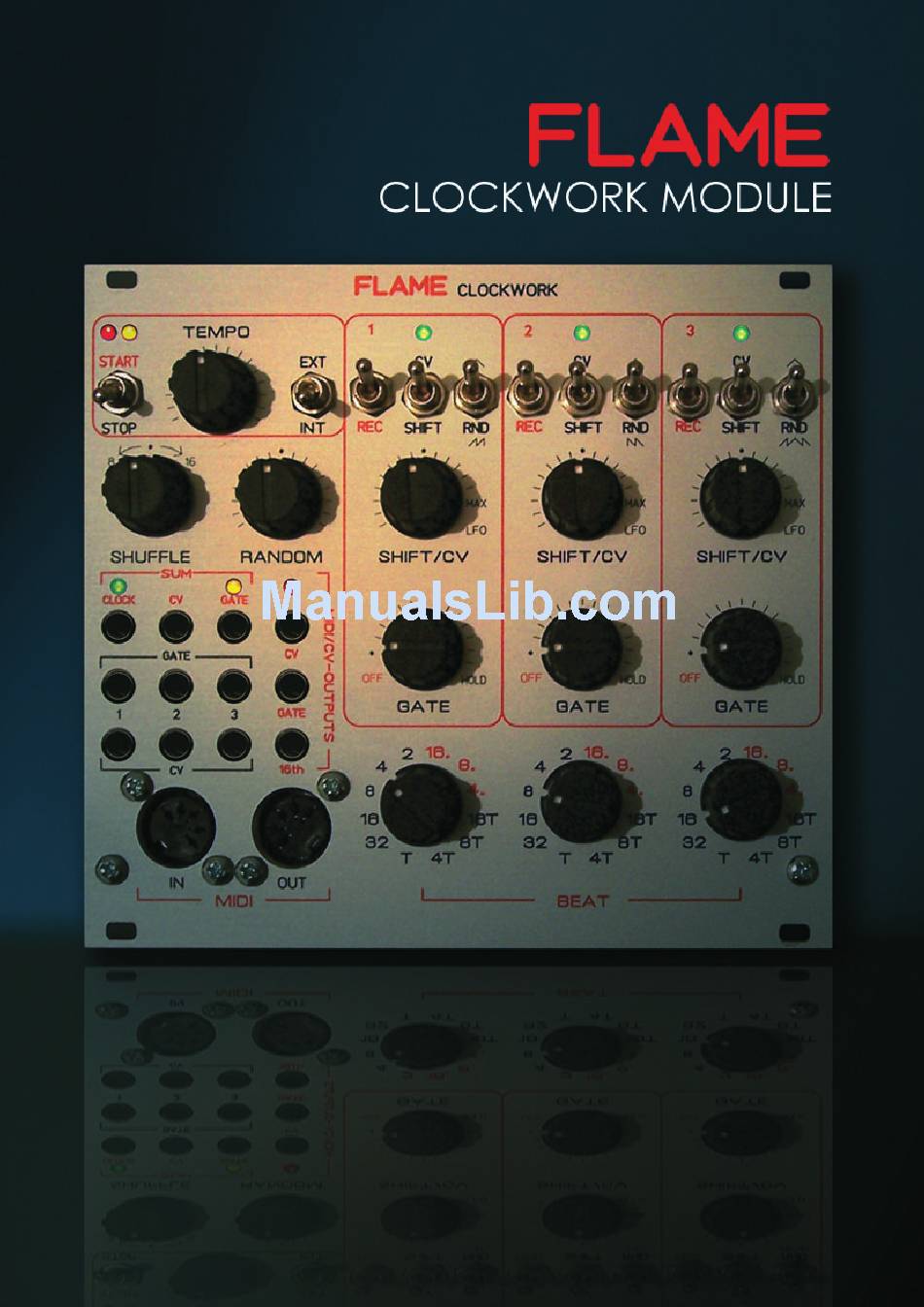

  • Page 1 manual Version 1.03 last update: april 2009...
  • Page 2 C C O O N N T T E E N N T T F F O O R R E E W W O O R R D D F F I I R R S S T T S S T T E E P P S S Security Advices Consignment Short describtion...
  • Page 3 Clockwork-concept enlarged with additional CV-outputs, Sum-outputs, Random functions, LFO's and MIDI-functions (MIDI-to-CV-interface, MIDI-con- trollers). The result of the Clockwork offers many possibilities with high fun- qualities. Due to the fact that we`ve had a great demand for a modular system version, now here comes the module in euro rack format.
  • Page 4 S S H H O O R R T T D D E E S S C C R R I I P P T T I I O O N N The Flame Clockwork is a versatile clock and tempo generator. In first line it´s designed to generate clock/trigger/gate signals for clocking units with tap and clock inputs, to fire envelopes or to control sequencers and sample&holds.
  • Page 5 S S H H O O R R T T O O V V E E R R V V I I E E W W Internal tempo generator (but the Clockwork can also be synchronized to external MIDI-Clock) Three independent clock-channels with adjustable divisor factor...
  • Page 6 F F I I R R S S T T S S T T E E P P S S F F R R O O N N T T P P A A N N E E L L / / C C O O N N N N E E C C T T I I O O N N S S / / C C A A B B L L E E C C O O N N N N E E C C T T I I N N G G C C A A B B L L E E...
  • Page 7 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 B B E E A A T T The BEAT-switch determines the division-factor of the internal or external MIDI-CLOCK in musical units.
  • Page 8 R R E E F F E E R R E E N N Z Z C C E E T T R R A A C C K K S S 1 1 - - 3 3 B B E E A A T T B B E E A A T T : : B B A A S S I I C C P P U U L L S S E E G G R R I I D D S S...
  • Page 9 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 G G A A T T E E With the switch GATE you can change the length of the Clock/CV-signal (length of the positive impulse = GATE), as well as the duration of the Midi-note (Note On/ Note Off) sended by the according chanel.
  • Page 10 So you can generate easy Offbeats e.g. (e.g. push-pull of Bassdrum and Snare). With help of two tracks can be generated flexible Shuffle-Beats and this yet with triplet or punctated notes. The Clockwork minimum needs one measure after start to adjust the correct beat with the according adjustment.
  • Page 11 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 C C V V If the left switch above SHIFT/CV-ruler is in upper position CV, the voltage at CV-output can be adjusted between 0 and 5 V (between zero and position MAX) with the control dial.
  • Page 12 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 L L F F O O If the left switch above SHIFT/CV-ruler is in upper position CV and the control- dial is in end-position (pot on right stop-position) the CV-output-jack converts into LFO.
  • Page 13 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 R R A A N N D D O O M M Some parameters of the tracks can be divercified by accident (RANDOM).
  • Page 14 R R E E F F E E R R E E N N C C E E T T R R A A C C K K S S 1 1 - - 3 3 A A N N A A L L O O G G - - O O U U T T P P U U T T S S Per track CLOCK/GATE (0/5V) and CV/LFO (0...approx.5V) come out of seperate jacks.
  • Page 15 R R E E F F E E R R E E N N C C E E G G L L O O B B A A L L F F U U N N C C T T I I O O N N S S T T E E M M P P O O / / S S Y Y N N C C For internal Clock put the SYNC-switch down on INT (internal Clock).
  • Page 16 R R E E F F E E R R E E N N C C E E G G L L O O B B A A L L F F U U N N C C T T I I O O N N S S S S H H U U F F F F L L E E By means of the SHUFFLE-ruler on all tracks running on 16th or 8th can be generated a shuffle.
  • Page 17 M M I I D D I I - - S S E E N N D D I I N N G G The CLOCKWORK only can send MIDI-data, when the internal sequencer is star- ted, or has been started via external MIDI-clock. If a track is switched off per GATE = OFF, no note-number of the track can be sendet, but the ruler/switches of the track can send nevertheless controller-data.
  • Page 18 M M I I D D I I - - C C L L O O C C K K Via midi-clock the CLOCKWORK can be synchronized with other sequencers and act as a master or slave. The running CLOCKWORK always sends MIDI- clock-data (internal clock the same as external clock). In STOP-mode no clock- instructions are generated.
  • Page 19 A A P P P P E E N N D D I I X X A A P P P P L L I I C C A A T T I I O O N N S S The Flame Clockwork is a versatile device for example: Rythmical filter-modulations...
  • Page 20 A A P P P P E E N N D D I I X X A A D D D D I I T T I I O O N N A A L L I I N N F F O O R R M M A A T T I I O O N N S S D D I I S S T T R R I I B B U U T T I I O O N N U U S S A A A A n n a a l l o o g g u u e e H H a a v v e e n n...
  • Page 21 A A P P P P E E N N D D I I X X A A D D D D I I T T I I O O N N A A L L I I N N F F O O R R M M A A T T I I O O N N S S T T E E C C H H N N I I C C A A L L D D E E T T A A I I L L S S Ruler 9 Potentiometer...
