Brodit 279018 Installation Instructions

4 September, 2020, www.brodit.com, © 2020 Brodit AB
Product 279018

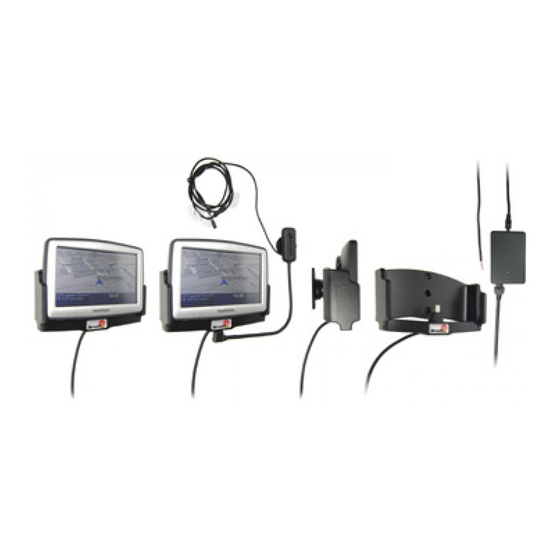

279018 Holder with Pass-Through Connector Active holder for fixed installation. With tilt swivel. 12/24 Volt.
Active holder with pass-through connector and for fixed installation. All cables that can be used with the GPS
device can also be used with the holder, for example a TMC cable. This means that you can have both charging
and TMC connected to the GPS in the same time! When you have attached the cable to the holder it is firmly in
place and you do not have connect it manually to the device each time you put the GPS in the holder.
The holder has a straight cable with open end for fixed installation. The cable is to be connected inside the
dashboard, this gives a discreet, neat installation without cables hanging over the interior.
You can easily take the device with you when leaving the vehicle. 12/24 Volt. The product is E-
approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended. The
holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Attach onto a ProClip
Mounting Platform.
Charging specifications:
Input voltage: DC/10-30V
Charging voltage: DC/4.75-5.3V
Output current(Typ): 2.0A
Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
LED charging indicator: Power input indicator(Green) , Ovp/Ocp/Output Short(Red)
Operating temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ +80°C
RoHS compliant: ROHS
EAN: 7320282790189
Item no 279018 fits:
TomTom XL 30-series (For all countries)
TomTom XL IQ Routes (For all countries)
TomTom XL Live IQ Route 2nd edition (For all countries)
