Q-Capture Component
The Q-capture sends a test signal from its output that is intended to be fed back
into its own input through the EQ-device. It should be opened on a live I/O. This
can be a Mono Auxiliary track or an Audio Track, depending on your Audio host.
Only a single instance of Q-Capture can work at a time.
T T S
HE RANSMITTING
section in the bottom part. The Transmitting section transmits the Q-Capture
signal to the track on which it is inserted. The track's output should go directly to
an analog output of the Workstation's I/O (as shown in Diagram # 1).
A graphic representation that indicates that signal is being transmitted will be
displayed.
T R S
HE ECEIVING ECTION
the top part. This section takes the live track input from the sampled EQ output
and displays a mode status: "Waiting" or "Receiving".
When the status indicates "Receiving", this means that a signal is being received
and that the system is ready for work.
When the word "Waiting" shows up, the loop (described in the set up section) is
not completed and the cloning signal is not returning to the Q-Capture.

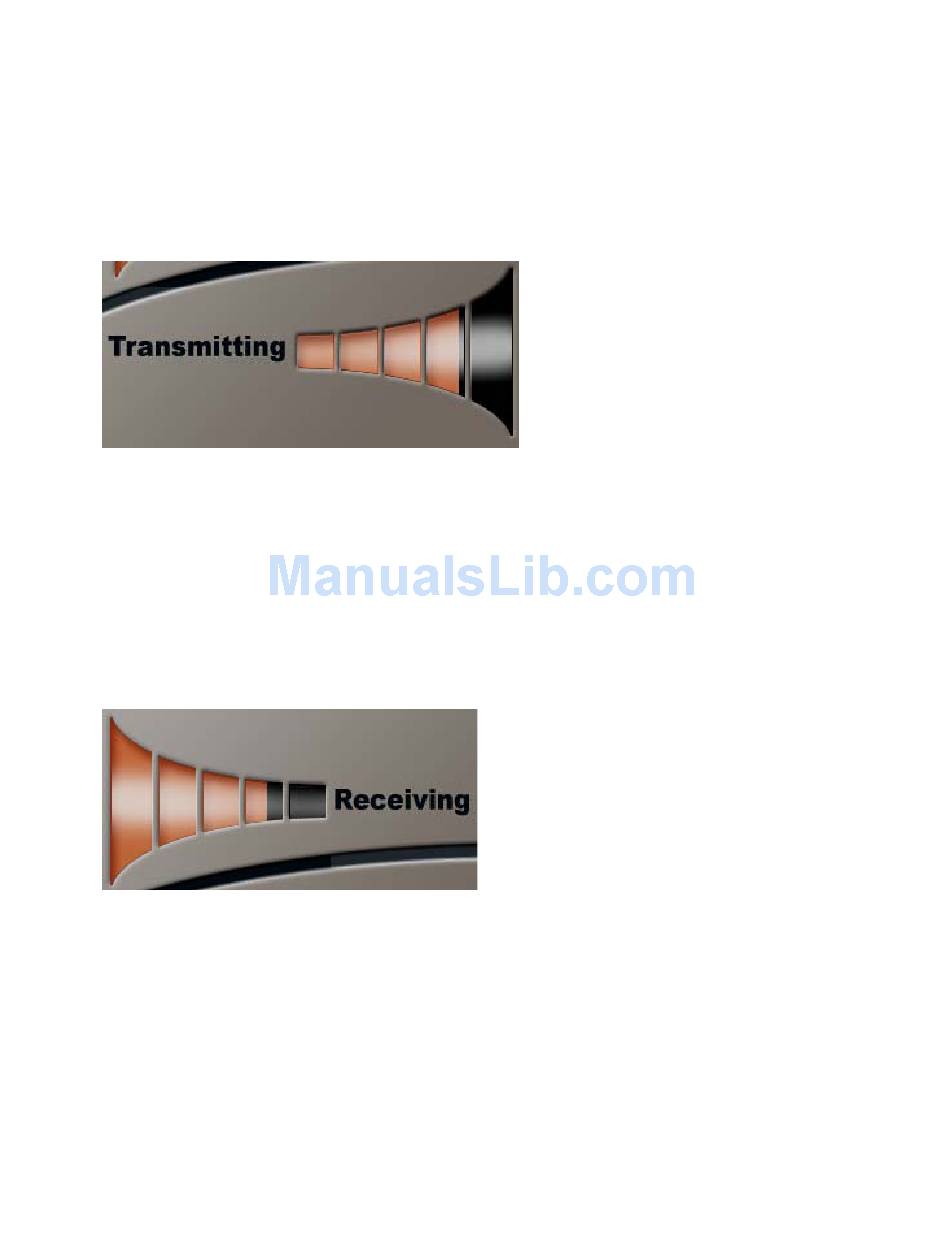

- The Q-Capture plug-in shows the Transmitting
ECTION
– The Q-Capture plug-in shows the Receiving section in
