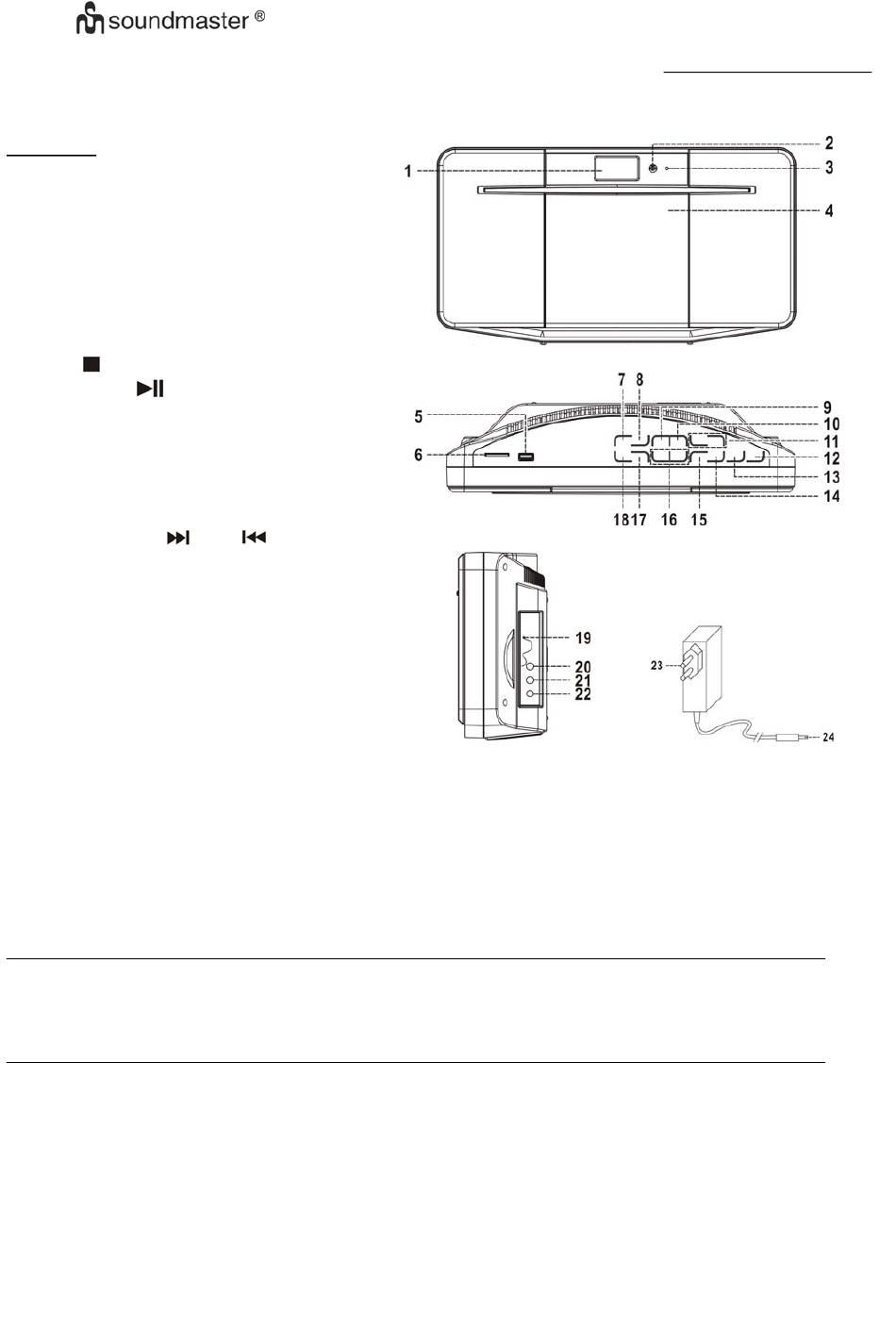

LOCATION OF CONTROLS

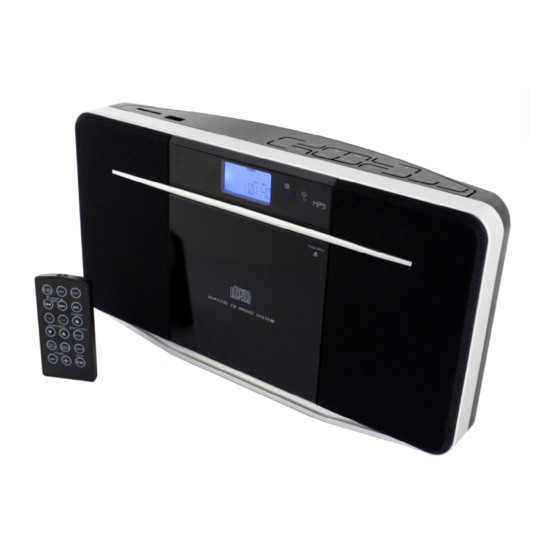

MAIN UNIT
1) LCD display
2) Remote sensor
3) Standby LED indicator
4) CD door
5) USB Socket
6) SD/MMC card slot
7) Snooze button
8) Alarm button
9) Stop
St-Mono button
/
10) Play/Pause
button
11) Volume knob
12) On/Standby button
13) Function button
14) Preset EQ button
15) Folder/Pre-Up button
16) Skip/Tuning Up
17) Memory/Clock-Adjust button
18) Play Mode button
19) FM wire antenna
20) Aux-in jack
21) 3.5mm Headphone jack
22) DC jack
23) AC/DC adaptor
24) DC plug
Caution:
Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.
This unit should not be adjusted or repaired by anyone except qualified service personnel.
Important:
Since movement of the CD mechanism and the sensitive circuitry may cause interference to the radio tuner nearby, switch this
unit off while operating other
Precautions for use
Installation
•
Unpack all parts and remove protective material.
•
Do not connect the unit to the mains before checking the main voltage and before all other connections have been made.
•
Do not cover any vents and make sure that there is a space of several centimeters around the unit for ventilation.
Connection
1.
Connect the DC plug (24) to the DC jack (22) of the main unit, then plug in the AC/DC adaptor (23) to the AC outlet. The unit
will go to standby mode and the Standby LED indicator (3) will light up.
2.
Turn on the unit (12), if the LCD display (1) is on with backlighting, it means the power supply is normal. Now your system is
ready to play the music.
/Down
button
radio devices
ENG 1
DISC4020 / English Manual
