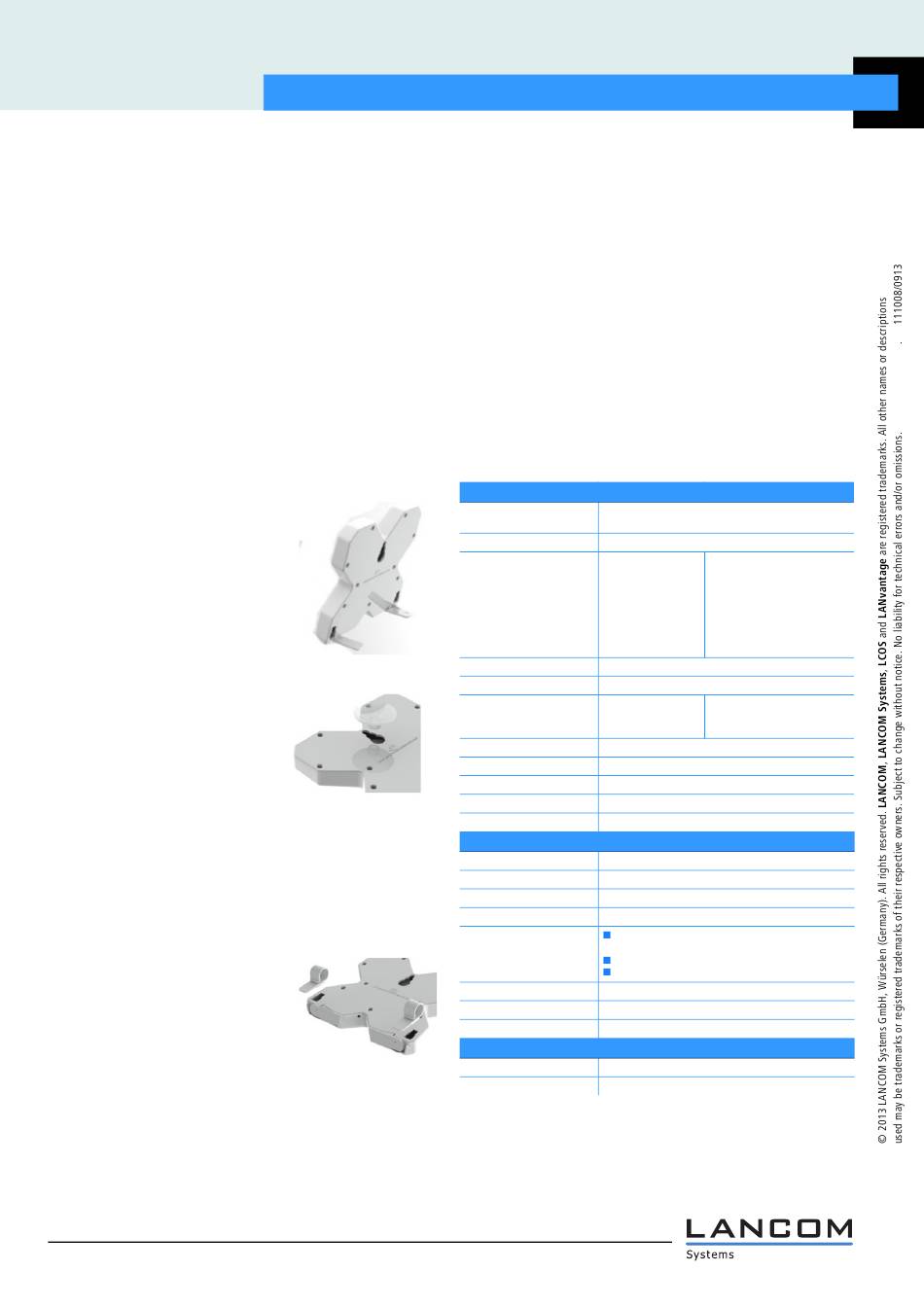

General information
The AirLancer Extender I-360-4G is an omni-directional MIMO antenna which
is designed to operate with devices that are able to take advantage of the scat-
tered signal paths which exist in everyday indoor environments. For this reason
the antenna does not need to be facing any particular direction to operate,
however, a place near the window is recommended. Please note: Metal coated
windows will negatively influence the performance of the antenna as well as it
should be avoided to place the antenna too close to metal objects.
Desk mounting
The AirLancer Extender I-360-4G can be easily
desk mounted using the integrated fold out feet.
Simply fold out both feet and position the
antenna as desired. For better stability it is re-
commended to feed the cabling through the
front view of the X-shape of the antenna from
behind. The feet can then be re-stowed for
transport.
Suction mounting
The AirLancer Extender I-360-4G can be suction
mounted to a window or other smooth surface
utilizing the supplied suction cup. Simply insert
the suction cup into the central keyhole slot.
Proceed to mount the antenna by pressing it
firmly onto the desired surface until a firm grip is
achieved. To dismount the antenna hold the suc-
tion cup firmly and slide the antenna upwards
dismounting the antenna from the suction cup. The suction cup can be removed
from the mounting surface with ease. Please note that not all surfaces are suit-
able for suction mounting. Due to temperature changes or changing air humid-
ity a permanent grip cannot be guaranteed. However, this mounting method is
ideal for temporary mounting.
Screen clip mounting
The AirLancer Extender I-360-4G can be screen
clip mounted using the two supplied clips.
Simply take the clips and slide them upwards
into the keyhole notches on either side of the
base of the antenna using a firm steady action.
When the screen mount clips are installed the
desk mount feet cannot be used
2/2
. . . c o n n e c t i n g
AirLancer Extender I-360-4G: Installation
y o u r
Right handling of antenna cables
Antenna cables can easily be damaged. The cables should not remain bunched
or tightly wound as this may affect performance.
Important information about RF exposure
In order to ensure compliance with the European R&TTE Directive 1995/5/EC,
FCC & ARPANSA regulations please maintain a minimum separation of 20 cm
between the antenna and any part of the body during use.
Technical details
Number of integrated anten- 2 (MIMO system)
nas
Frequency range 698-960 MHz and 1710-2700 MHz
Bands supported LTE, 4G:
Band 1 (2100 MHz)
Band 3 (1800 MHz)
Band 7 (2600 MHz)
Band 8 (900 MHz)
Band 20 (800 MHz)
Antenna characteristics Omni-directional antenna
VSWR <2.5:1
Gain (cable loss incl.) 698-960 MHz
1710-2170 MHz
2200-2700 MHz
Efficiency >70%
Correlation coefficient <0,1
Isolation >20dB
Max. input power 20 Watt
Impedance 50 Ω
Mechanical details
Size Height: 139 mm, Width: 151 mm
Operating temperature -40° to +80°C
Material UV-resistant plastic (ABS)
Color black
Mounting options Fold-out stand for mounting on window sills, desks
or electrical cabinets
Fixes to window panes by suction pad
Mounting holes for wall fixing
Cable material 2 x RG174 (cable thickness is 2.8 mm)
Cable length 2 m
Connectors 2 x SMA (m)
Item
Warranty 2 years
Item number 60918
b u s i n e s s
Other 2G and 3G bands:
GSM: GSM 900 (900 MHz)
GPRS: DCS 1800 (1800 MHz)
EDGE: PCS 1900 (1900 MHz)
UMTS (HSDPA, HSUPA,
HSPA+):
Band 1 (2100 MHz)
Band 8 (900 MHz)
0,3 dB
1,6 dB
0,4 dB
