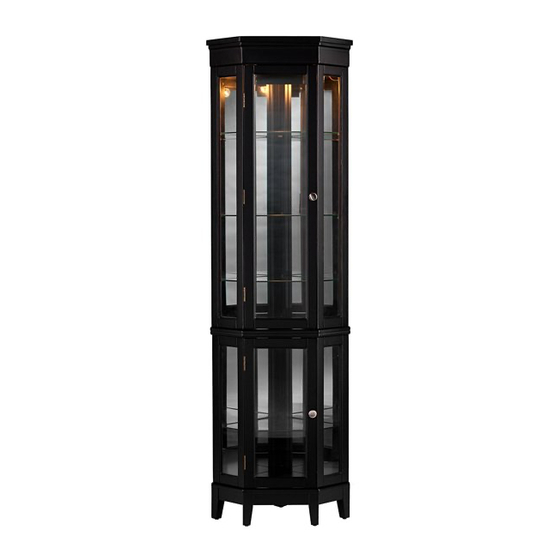

- Page 1 CM0697A0TX CM0697B0TX ESSEX CURIO Assembly Instructions For assistance with assembly, contact: Southern Enterprises Inc. customer service 1-800-633-5096 service@seidal.com www.seidal.com...
-
Page 2: Parts List
ESSEX CURIO Parts List Please review all parts and hardware before disposing of any packaging. Call customer service if missing hardware. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below . - Page 3 Quantity Quantity Quantity Of 1 Of 1 Of 1 top panel upper back rail upper left side panel Quantity Quantity Quantity Of 1 Of 1 Of 1 upper right side panel upper shelf lower shelf Quantity Quantity Quantity Of 1 Of 1 Of 1 lower back rail...
- Page 4 ESSEX CURIO Assembly Instructions Be gentle with parts, wood may scratch easily. Unpack and lay parts on a clean padded surface like carpet or blanket. Check that you have all parts indicated on the front page. Insert short flat head short screws (4) through metal shade (16) and tighten into predrilled holes on underside of top panel (A).
- Page 5 Please be careful attaching large back mirrors (O) into grooves of the unit. Attach upper back panels (M) into the slots of rear edges of the unit. Insert round head screws (8) through the holes on upper back panels (M) and tighten into corresponding holes on rear edges of the unit as shown on figure 4.
- Page 6 Tighten cam-bolts (19) into holes on upside of base (J). Insert wood dowels into holes on base (J) and fit into corresponding holes on bottom edges "Please do not over of parts (H, I, and G). tighten cam bolts. Insert cam-locks (20) into the bottom Please stop when you side holes on parts (H, I, and G) with feel tight"...
- Page 7 Insert flat head short screws (4) through the holes on hinges (7) and tighten into predrilled holes on edges of lower left side panel (H) and upper door (L). Insert small machine screw (6) through hole on lower door (L) and tighten into handle (5).
- Page 8 Fit shelf supports (17) into holes on the inside of the unit. Place glass shelves (Q) on shelf supports (17) as shown in figure 10. Figure 10 Wall Wall Attach brackets (10) to back panels using medium flat head screws (14). Tighten screws using phillips screwdriver.
- Page 9 Move the item close to the wall and tie brackets (10) with plastic straps (11) as shown in Figure 12. Fit the plug to the appropriate power source. Turn the light on and off by turning the switch on the side of light fixture as shown in figure 12.
-
Page 10: Parts Replacement Form
90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts. -
Page 11: Read And Follow All Safety Instructions
WARNING: USE THE PROPER BULB AND THE PROPER POWER SUPPLY LABELED ON THE LAMP HOLDER. THIS PRODUCT CAN ONLY BE USED INDOORS. IMPORTANT SAFETY INSTRUCTIONS WHEN USING ELECTRICAL PRODUCTS, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING. READ AND FOLLOW ALL SAFETY INSTRUCTIONS DO NOT USE SEASONAL PRODUCTS OUTDOORS UNLESS MARKED SUITABLE FOR INDOOR AND OUTDOOR USE.
