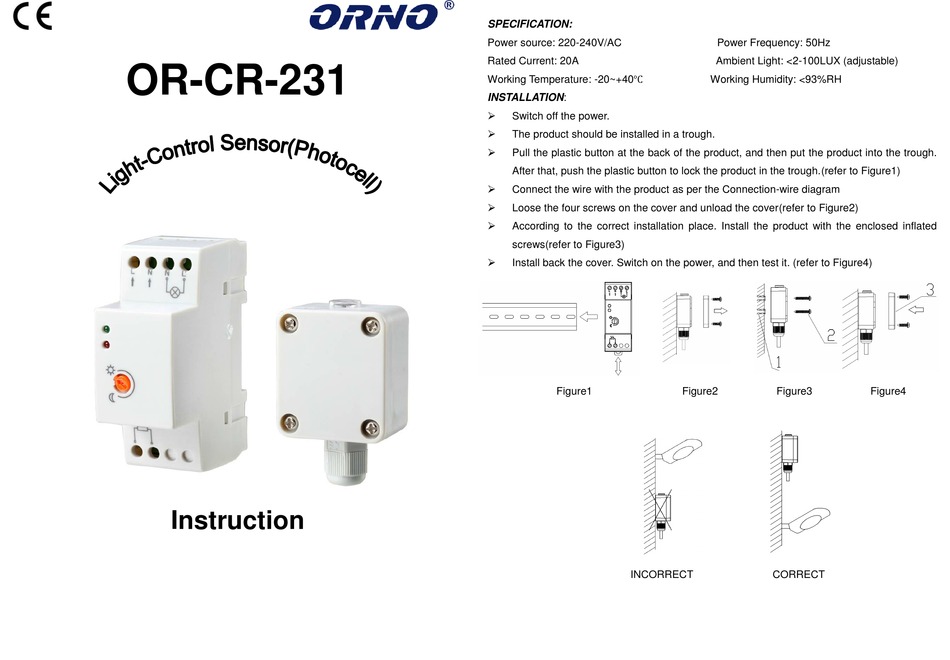

OR-CR-231
Instruction
SPECIFICATION:
Power source: 220-240V/AC
Rated Current: 20A
Working Temperature: -20~+40℃
INSTALLATION:
Switch off the power.
The product should be installed in a trough.
Pull the plastic button at the back of the product, and then put the product into the trough.
After that, push the plastic button to lock the product in the trough.(refer to Figure1)
Connect the wire with the product as per the Connection-wire diagram
Loose the four screws on the cover and unload the cover(refer to Figure2)
According to the correct installation place. Install the product with the enclosed inflated
screws(refer to Figure3)
Install back the cover. Switch on the power, and then test it. (refer to Figure4)
Figure1
INCORRECT
Power Frequency: 50Hz
Ambient Light: <2-100LUX (adjustable)
Working Humidity: <93%RH
Figure2
Figure3
CORRECT
Figure4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Orno OR-CR-231
Summary of Contents for Orno OR-CR-231
- Page 1 SPECIFICATION: Power source: 220-240V/AC Power Frequency: 50Hz Rated Current: 20A Ambient Light: <2-100LUX (adjustable) OR-CR-231 Working Temperature: -20~+40℃ Working Humidity: <93%RH INSTALLATION: Switch off the power. The product should be installed in a trough. Pull the plastic button at the back of the product, and then put the product into the trough.
- Page 2 In front of the photocell, it should be no swaying object. Don’t install the photocell under the light or in the place where the light will be irradiated to the photocell. ORNO LOGISTIC ul. Katowicka 134 43-190 Mikolow POLAND...
