Orno OR-CR-232 Operating And Assembly Instructions

OR-CR-232
ORNO-LOGISTIC Sp. z o.o.
ul. Rolników 437
44-141 Gliwice
tel. 32 43 43 110
IMPORTANT!
Before using the device, read this user manual and keep it for future reference. Accomplishment independent repairs and
modifications will result in the loss of the warranty. The manufacturer is not liable for damage that may result from incorrect
assembly or operation of the device. Due to the fact that technical data are subject to constant modifications, the Manufacturer
reserves the right to make changes regarding characteristics of the product and the introduction of other construction solutions
that do not degrade the parameters and functional values of the product. The latest version of the manual can be downloaded at
www.orno.pl. All rights to translation/interpretation and copyright these instructions are reserved.
Perform all operations with the power disconnected.
1.
Do not immerse the device in water or other liquids.
2.
Do not operate the device if the housing is damaged.
3.
Do not open the device and do not make any repairs yourself.
4.
Do not use the device contrary to its intended use.
5.
The installation may be carried out by an electrician or an experienced person.
6.
Do not use unstable items as the basis for installation.
7.
Do not place objects that could interfere with the sensor operation before the device.
8.
Each property is a user of electrical and electronic equipment, and thus a potential dangerous producer for people and the environment of waste,
for the presence of dangerous substances, mixtures and components in the equipment. On the other hand used equipment is a valuable material
from which we can recover raw materials such as copper, tin, glass, iron and others. The symbol of the crossed out trash can placed on the
equipment, packaging or documents attached to it means that the product must not be disposed of with other wastes. The marking means at the
same time that the equipment was placed on the market after a day August 13, 2005. It is the responsibility of the user to hand the used equipment
to a designated collection point for its proper collection processing. Information about the available collection system of waste electrical equipment
can be found in the information desk of the store and at the city/commune office. Proper handling of used equipment prevents negative
consequences for the environment and human health!
03/2018
The device is used to automatically control lighting or other electrical receivers at simultaneous energy savings. Its
task is to connect and disconnect the circuit if the illuminance falls below a certain level. The photosensitive sensor
is located in a special, small-sized box.
Power supply voltage: 230VAC / 50 Hz
Max. load: 2300W
Load current: 15A
Light intensity adjustment: <2 - 100 lux
Delay of switching on: 1-2 sec
Switch-off delay: 4-5 sec
Power consumption: about 0.5W
Degree of probe/sensor protection: IP65/IP20
Working temperature: -20
Sensor dimensions: 48 x 63.4 x 29.3 mm
The dimensions of the outer probe box: 42 x 48 x 30 mm
Net weight: 0.1 kg
CHARACTERISTIC:
TECHNICAL SPECIFICATIONS:
C ~ + 40 C
0 0

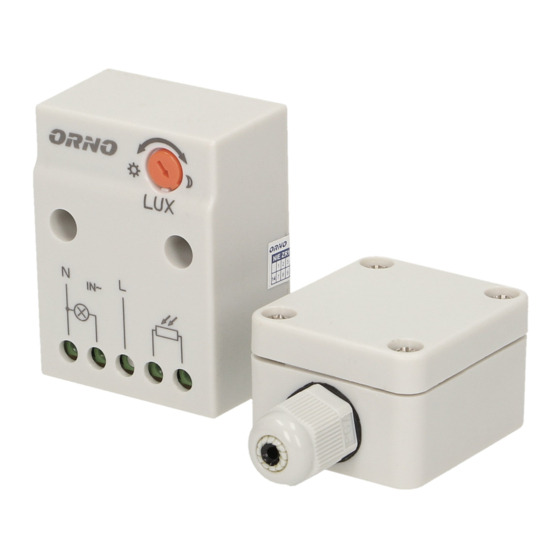

Twilight sensor with an external probe
(ENG) Operating and assembly instructions
