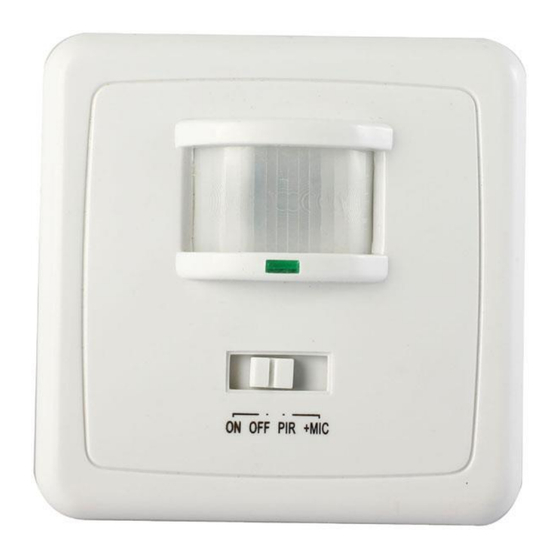

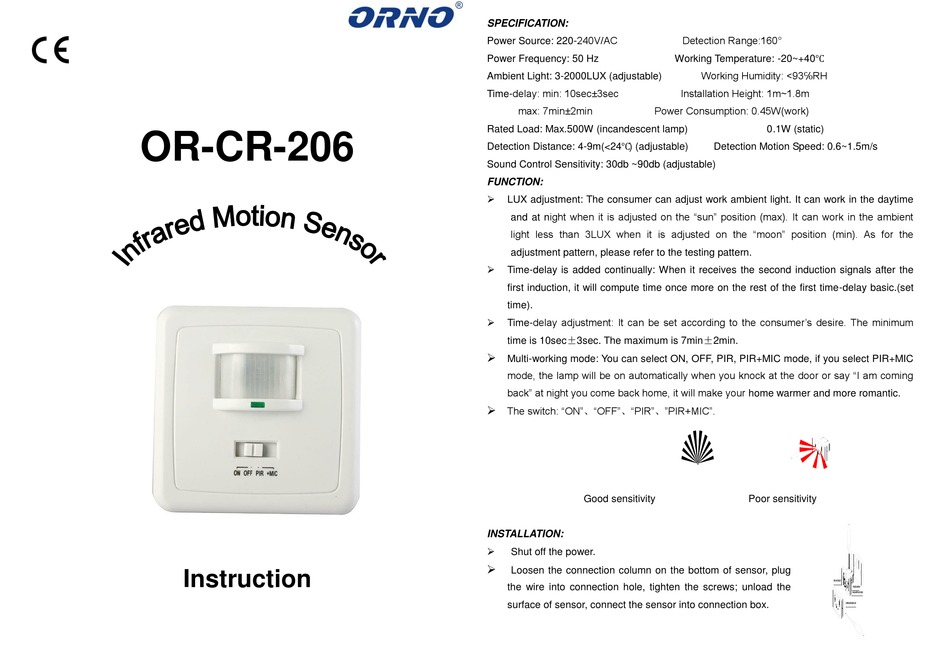

Orno OR-CR-206 Instructions

OR-CR-206
Instruction

SPECIFICATION:

Power Source: 220-240V/AC
Power Frequency: 50 Hz
Ambient Light: 3-2000LUX (adjustable)
Time-delay: min: 10sec±3sec
max: 7min±2min Power Consumption: 0.45W(work)
Rated Load: Max.500W (incandescent lamp)
Detection Distance: 4-9m(<24℃) (adjustable)
Sound Control Sensitivity: 30db ~90db (adjustable)

FUNCTION:


LUX adjustment: The consumer can adjust work ambient light. It can work in the daytime
and at night when it is adjusted on the "sun" position (max). It can work in the ambient
light less than 3LUX when it is adjusted on the "moon" position (min). As for the
adjustment pattern, please refer to the testing pattern.

Time-delay is added continually: When it receives the second induction signals after the
first induction, it will compute time once more on the rest of the first time-delay basic.(set
time).
 Time-delay adjustment: It can be set according to the consumer's desire. The minimum
time is 10sec±3sec. The maximum is 7min±2min.

Multi-working mode: You can select ON, OFF, PIR, PIR+MIC mode, if you select PIR+MIC
mode, the lamp will be on automatically when you knock at the door or say "I am coming
back" at night you come back home, it will make your home warmer and more romantic.

The switch: "ON"、"OFF"、"PIR"、"PIR+MIC".
Good sensitivity

INSTALLATION:


Shut off the power.

Loosen the connection column on the bottom of sensor, plug
the wire into connection hole, tighten the screws; unload the
surface of sensor, connect the sensor into connection box.
Detection Range:160°
Working Temperature: -20~+40℃
Working Humidity: <93℅RH
Installation Height: 1m~1.8m
0.1W (static)
Detection Motion Speed: 0.6~1.5m/s
Poor sensitivity
S P LA Y B O LT
O P E N FA C E P LA T
FIX E D A R M
M O U N TIN G H O LE
