Gronomics RGBT 34-34 Assembly Instruction

1
Parts Identifi cation
Stack matching pieces in piles. Using the parts list,
locate and count the individual pieces and verify that
you have received the correct number of pieces.
If any pieces are missing or replacement parts
are required, contact Gronomics at
1-855-299-6727.
NOTE: Ground preparation is optional, however we
recommend leveling area under frame of product, or
place product directly on a flat level surface before
filling with soil.
ITEM QTY.
1 4
2 11
3 1
Product Care & Maintenance -Western Red Cedar will turn a weathered grey if left unfinished. Although no finish is required for cedar products when used
outdoors, a natural oil finish applied regularly will help maintain the beauty and minimize cracking and drying. It is recommended to use Gronomics Garden Bed
Oil (Item # GBO-1Q), a non-toxic, food safe finish that is very easy to apply. Apply Oil when air and wind temperatures are between 50-90degrees. Avoid applying
in direct sunlight.
2

Side Rail Assembly

NOTE: Garden bed will be assembled upside down
and fl ipped over when completed.
Stand two 4" x 4" x 13" corner posts (Item 1) with
slots facing each post and slots facing away from
you.
Install the 31" x 5-1/2" side rail w/Logo (Item 3)
(position Logo upside down) into the slots and slide
to the bottom of the slots.
Repeat procedure for the two remaining corner
posts and a 31" x 5-1/2" side rail.
Packaged & Inspected by:
www.gronomics.com

Parts List

PART # DESCRIPTION
1901R Corner Post, 4" x 4" x 19"
Side Rail, 31" x 5-1/2" x 7/8"
3100T
Side Rail w/Logo, 31" x 5-1/2" x 7/8"
3100TL

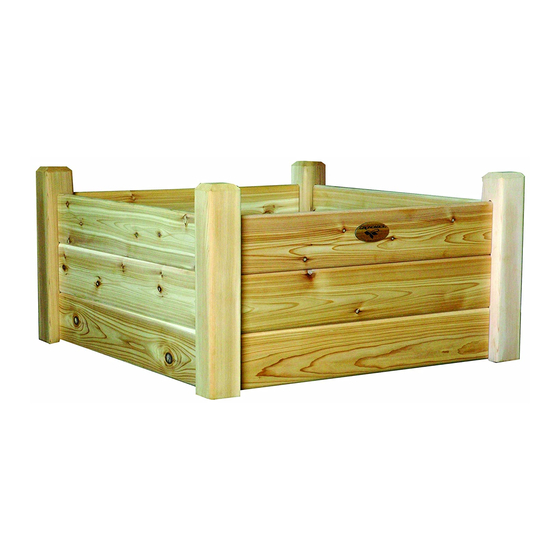

Raised Garden Bed
Assembly Instruction
2
1
Slots
1
East Bethel, MN USA
(3 Tier 34" x 34")
Item #: RGBT 34-34
Item #: RGBT 34-34S
3
3
Position Logo Upside Down
Date:
Slots
1
Continued
763-753-7374
