Well Tempered Lab LTD Instruction Manual page 5

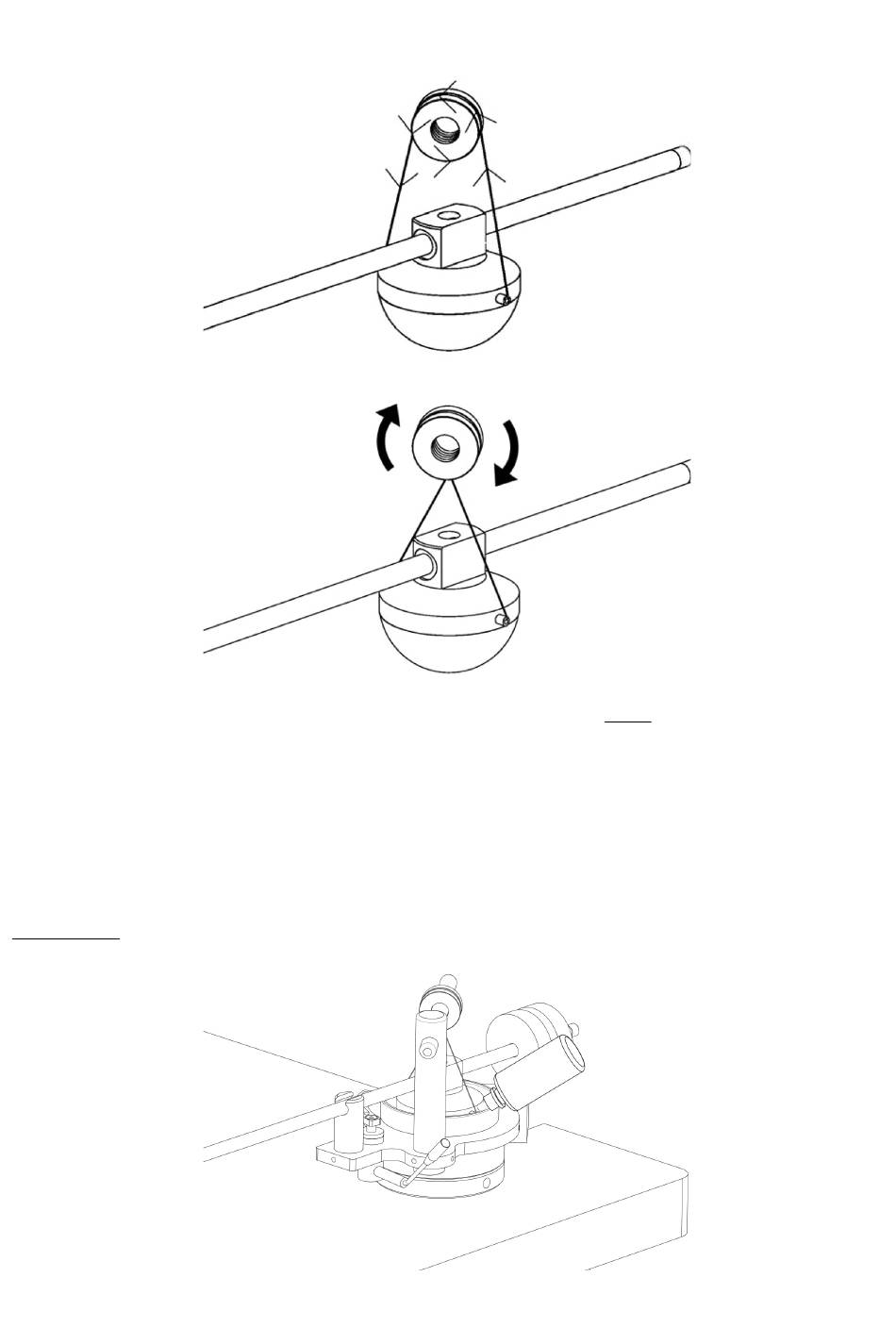

Drawing (1)
Drawing (2)
6. Fine adjustment and alignment can now be completed and all set screws gently but firmly tightened. Some
further adjustments to overall tonearm height, VTA and the armrest may well be required after the chosen
cartridge has been installed on the tonearm. The silicone damping fluid can be poured into the bearing cup
(Part no. 7) using the nozzle supplied. The tonearm can be raised or lowered within the fluid in the bearing cup
by raising or lowering the tonearm pillar (Part no. 10). Carefully adjust the set screw and tighten gently when
desired level is achieved, some alterations to overall height, the cueing device and arm rest may also be
required at this time. The golf ball can be easily moved to one side of the damping cup by moving the azimuth
adjustment collar gently in the required direction. The arm rest (Part no. 18) and cueing device (Part no. 16) can
also be adjusted to ensure the tonearm and cartridge are in the correct position to clear the record and allow for
correct cueing. We recommend that approximately one third of the golf ball is submerged in the silicone fluid.
Do not overfill the bearing cup. It is easy to add more fluid, but difficult to remove it.
Fig (6)
5
