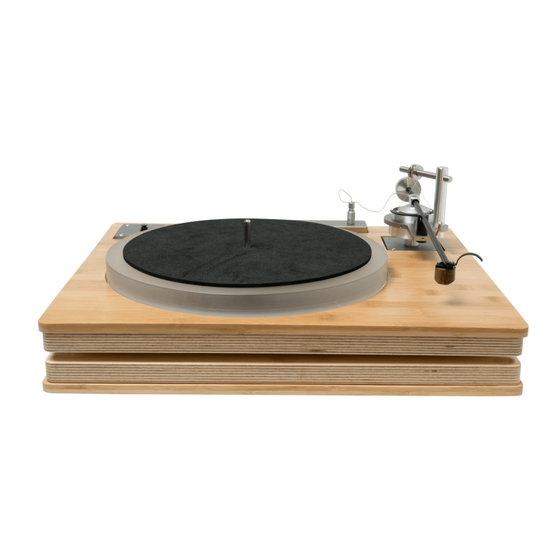

- Page 1 INSTRUCTION MANUAL Amadeus 254 / 254 GT Rev. September 18...
-
Page 2: Table Of Contents
Before embarking on the relatively simple process of assembling the Amadeus 254 / 254 GT, please take the time to fully read these instructions and follow the steps within. The old adage of "if all else fails read the instruction manual" needs to be applied from the onset. -
Page 3: Unpacking The Amadeus 254 / 254 Gt
Take care that none of the fluids contaminate the finished surfaces of your Amadeus 254 / 254 GT. The Amadeus 254 / 254 GT packaging has been designed to protect it from the hazards of shipping. It is advisable to save it for further use. -
Page 4: Speed Control
Fig (3) Speed Control The Amadeus 254 / 254 GT is supplied complete with the Well Tempered Lab Ctrl that provides both the power supply for the turntable and electronic switching between 33 ⅓ RPM and 45 RPM. Installing the Belt Start with the belt around the motor pulley, take care the other end clears the centre spindle and rotate the platter, the belt will track around the platter. -
Page 5: Rear Panel
Fig (4) Rear Panel Both Phono and XLR (Balanced) outputs are available along with the DC input socket for use with the CTRL. An earth screw is also available. Fig (5) -
Page 6: Making A Belt
Making a Belt Loop a long length of .004mm polyester thread around the thumbtack. Tie a simple double overhand knot around the pin. Remove the pin and tighten the knot. Hold knot with thumbnail and pull on excess. Cut off excess leaving 10mm (minimum) tails. 543mm (21.4”) Thumbtack (Drawing Pin) .004mm polyester thread (White or Black). -
Page 7: Troubleshooting
4. Trim excess 5. The Amadeus 254 / 254 GT motor has bearing tolerances that cause it to be noisy without the load of the belt and platter. It is sometimes possible during transit for the motor to shift within the isolating rubber mounting and vibrate against the motor mounting cover. -
Page 8: Tonearm Alignment Guide For Well Tempered Lab Turntables
20mm... -
Page 9: Specifications
Damping: Silicone fluid 100,000 cSt viscosity • Dimensions (H x W x D) 195 x 480 x 410 mm, 290 x 615 x 565 mm (Shipping) • Weight 11 kg, 15.5 kg (Shipping) Amadeus 254 GT • Platter Acrylic Translucent • Platter mat Anti-static Foam •... -
Page 10: Warranty And Service
This warranty does not cover normal wear and tear and is void if the Well Tempered product has been subject to mis-use, accident or negligence or if it has been tampered with or modified in anyway. Spillage of any fluids supplied by the Well Tempered Lab is not covered within the scope of this warranty.
