- Page 1 INSTRUCTION MANUAL Royale 400 Rev. June 17...
-
Page 2: Table Of Contents

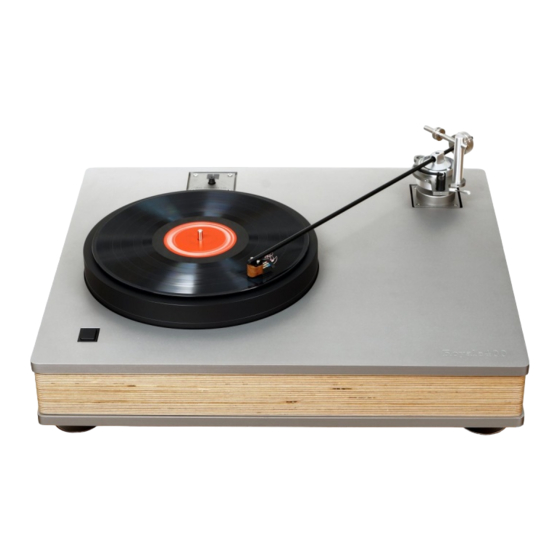

Preliminary The Well Tempered Lab Royale 400 turntable / 16” LTD 400 tonearm combination is the result of a continuous search for genuine refinement and significant improvement in the playback of analog records. It encapsulates all of the Well Tempered Lab principles we believe necessary to achieve this goal and features that are not purely cosmetic but contain all the knowledge we have gleaned after countless hours of research and development. -
Page 3: Unpacking The Royale 400
Take care that none of the fluids contaminate the finished surfaces of your Royale 400. The Royale 400 packaging has been designed to protect it from the hazards of shipping. It is advisable to save it for further use. Important: Never place a Well Tempered Lab turntable in direct sunlight. Not only will it have detrimental effects on your valuable recordings, it will impair the mechanical integrity and performance of your turntable. -
Page 4: Installing The Belt
Start with the belt around the motor pulley, take care the other end clears the centre spindle and rotate the platter, the belt will track around the platter. See Fig (4). Well Tempered Lab belts if dropped are easily misplaced, we give you two but suggest you place the belt on something dark to make it easily seen. -
Page 5: Rear Controls
The Royale 400 also features a 33 ⅓ RPM to 45 RPM switch function which is operated when the belt is on the 33 ⅓ position on the stepped motor pulley. -
Page 6: Making A Belt
Troubleshooting 1. In the unlikely event that you wish to remove the Royale 400 tonearm, the golf ball can be lifted clear of the fluid, and left to drain. Surplus fluids may then be wiped from the golf ball with a paper towel. - Page 7 4. Trim excess 5. The Royale 400 motor has bearing tolerances that cause it to be noisy without the load of the belt and platter. It is sometimes possible during transit for the motor to shift within the isolating rubber mounting and vibrate against the motor mounting cover. This is easily remedied by gently moving the motor clear of the mounting cover plate.
-
Page 8: Head-Shell Alignment Guide For Well Tempered Lab Turntables
20mm... -
Page 9: Specifications
Multi-layer plywood central layer with Anodised aluminium top/bottom layers and adjustable custom made isolation feet. • Motor Servo Controlled 12VDC completely decoupled from plinth. • Voltage The Royale 400 is shipped with the voltage for your country. • Drive .004mm Polyester thread • Tonearm Arm tube: 16"... -
Page 10: Warranty And Service
This warranty does not cover normal wear and tear and is void if the Well Tempered product has been subject to mis-use, accident or negligence or if it has been tampered with or modified in anyway. Spillage of any fluids supplied by the Well Tempered Lab is not covered within the scope of this warranty.
