Preliminary

On a dedicated Well Tempered Lab plinth, inserts are provided to attach the base plate (Part no. 1) to the plinth.
No hardware is provided for mounting the LTD tonearm to other manufacturer's turntables. Well Tempered Lab
advise that such a project should only be attempted by competent personnel. Well Tempered Lab bears no
responsibility for this process.
.
Note: For plinths not drilled for the LTD Tonearm, a 22mm hole in accordance with the turntable manufactures
specifications is required. The LTD protractor provided specifies the centre of this hole. No further adjustment is
provided or required.

Mounting the LTD Tonearm

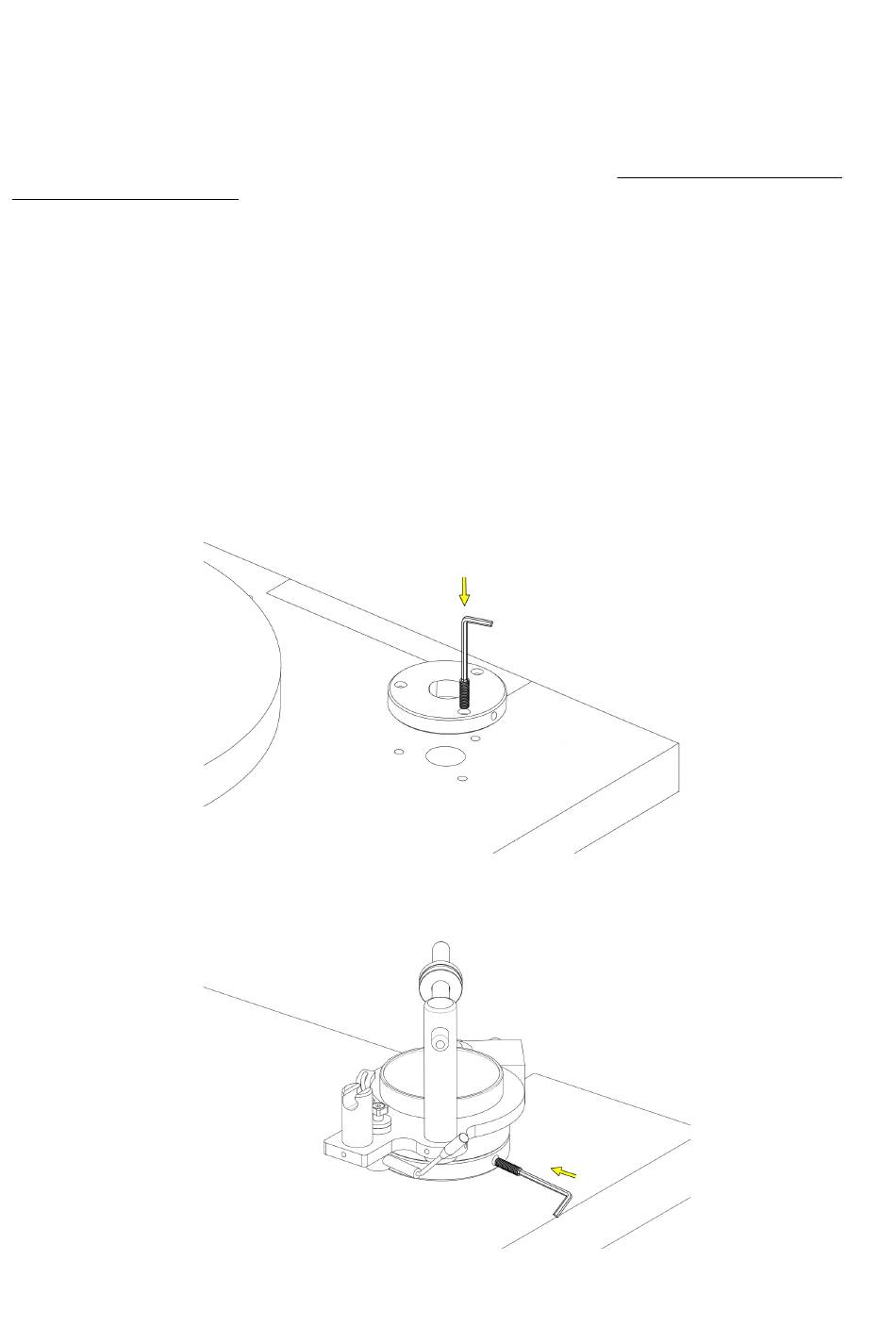

1. Install base plate (Part no. 1) in correct position on plinth and tighten fixing screws. See Fig (1). Fixing
screws are normally retained in inserts on Verslaex plinth.
Note: The Amadeus GTA MK II / LTD combination does not require the base plate (Part no. 1). The LTD
tonearm fits directly into the GTA MK II plinth. All adjustments are the same.
2. Carefully remove bearing cup (Part no. 7) and tonearm carrier bracket (Part no. 8) from foam packaging.
Fig (1)
3. Insert complete bearing cup and tonearm carrier assembly into base plate and tighten set screws (Part no. 2)
with hex wrench (Part no. 25) supplied. See Fig (2).
Fig (2)
Note: Do not over tighten as some further adjustment maybe be necessary and the whole assembly will need
to be lowered in the base plate to achieve correct VTA.
3
