Well Tempered Lab LTD Instruction Manual page 4

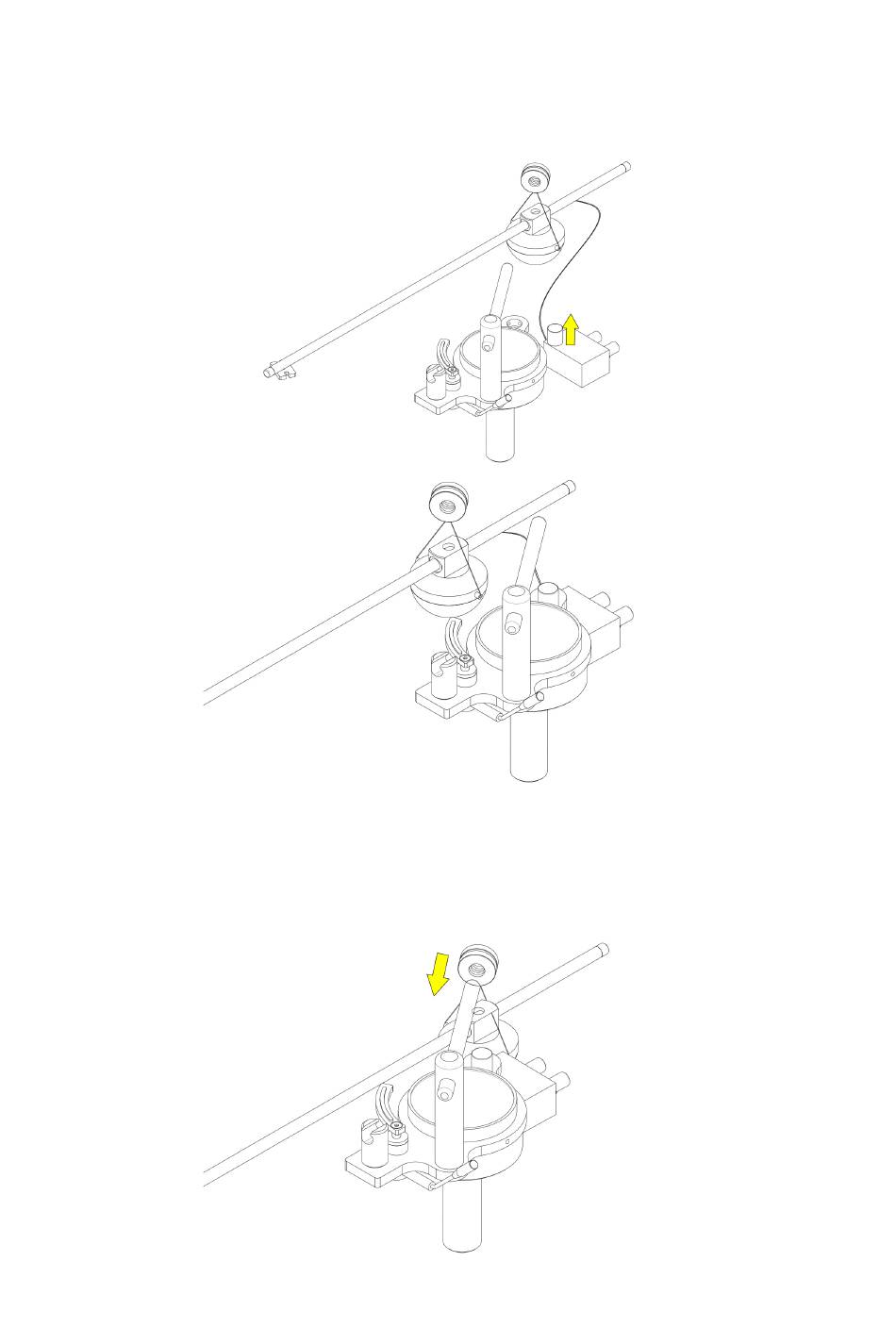

4. Carefully position tonearm tube assembly (Part no. 14 - 19) in a convenient position to allow phono socket
bracket (Part no. 4) to insert into carrier bracket. Extreme care must be taken during the process to ensure no
strain is applied between tonearm and phono socket wiring. See Fig (3) and (4). Tighten set screws to secure
phono bracket.
Fig (3)
Fig (4)
Note: Well Tempered Lab accept no responsibility for any damage to the Tonearm wiring during this process.
5. Suspend arm by applying one and half turns on the mono-filament suspension around the azimuth collar
apply a complete anti-clockwise twist to the mono-filament suspension lower golf ball into bearing cup and slide
azimuth adjusting collar onto azimuth rod (the anti-clockwise twist effectively provides anti-skate). See Fig (5)
and Drawings (1) and (2).
Fig (5)
