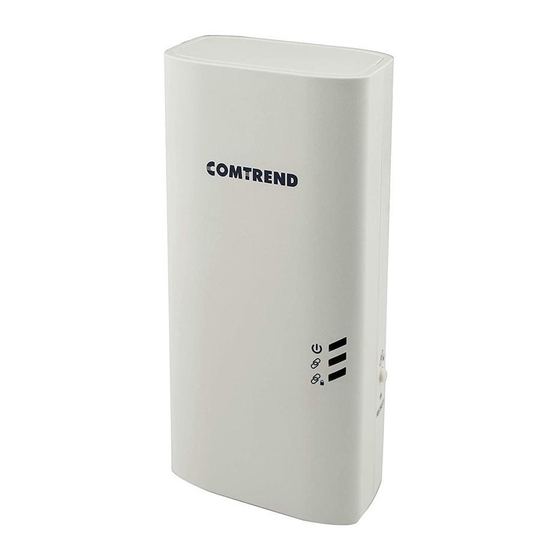

PG-9182PoE G.hn 2000 Powerline Adapter with PoE
A

Understanding Your Powerline Adapter

Ethernet
Ports
LED
Power LED
Connection LED
Security LED
Quick Install Guide
Color
Mode
Description
Green
On
The Adapter is powered on.
Off
Off
The Adapter is powered off or faulty.
The current connection (line rate) is more than
Green
On
40Mbps.
The current connection (line rate) is between
Orange
On
5Mbps and 40Mbps.
The current connection (line rate) is less than
Red
On
5Mbps.
Off
Off
An Adapter connection does not exist.
The Adapter is secure (it has received or generated
On
network keys).
Green
Blinking
The Adapter is in the process of being secure.
Off
Off
The Adapter is not secure.
LED Icons
Descriptions are
provided below
Security Button
Enables Device
Synchronization
in Secure Mode
Reset Button
Press for more
than 10 seconds
for Factory Reset
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-9182PoE and is the answer not in the manual?

Questions and answers

Summary of Contents for Comtrend Corporation PG-9182PoE

  • Page 1 Quick Install Guide PG-9182PoE G.hn 2000 Powerline Adapter with PoE Understanding Your Powerline Adapter LED Icons Descriptions are provided below Security Button Enables Device Synchronization in Secure Mode Reset Button Ethernet Press for more Ports than 10 seconds for Factory Reset...
  • Page 2 GREEN light indicates that the device is sending data. Device Connection 3. Plug the PG-9182PoE into a power outlet near the PoE-enabled device (ex. PG-9182PoE PoE IP Camera, Wireless Access Point, etc.). Please wait for up to 30 seconds for the Power LED and Security LED to remain solid GREEN.
  • Page 3 5. Press the Security Button on the PG-9182PT until you see the Security LED start blinking GREEN. Then you have up to 2 minutes to press the Security Button on the PG-9182PoE (hold the button until you see the Security LED start blinking GREEN).
  • Page 4 • Disconnect the PLC from the power source before servicing • Do NOT open the casing • Do NOT use near water FOR MORE HELP: For instructions on advanced features, FAQ, etc., please visit the PG-9182PoE online Product Webpage on our website. For more information: YouTube: https://www.youtube.com/user/ComtrendConnection...
