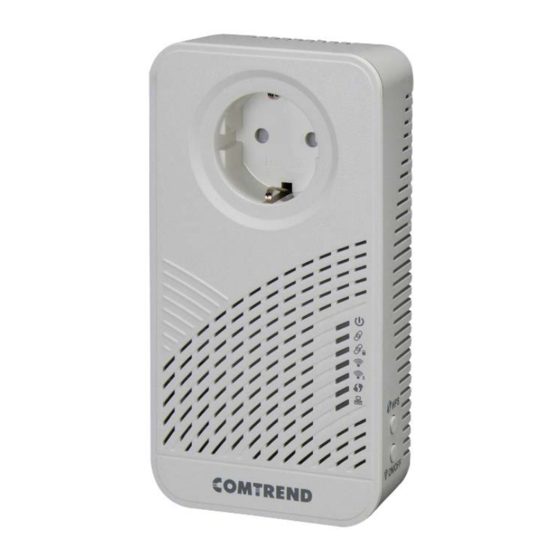

Comtrend Corporation PG-9182A User Manual

Comtrend Corporation PG-9182A User Manual

Powerline ethernet wifi adapter web ui management

Advertisement

PG-9182AC
Powerline Ethernet WiFi Adapter
User Manual of web UI Management
Version A1.0, Jan. 29, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG-9182A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comtrend Corporation PG-9182A

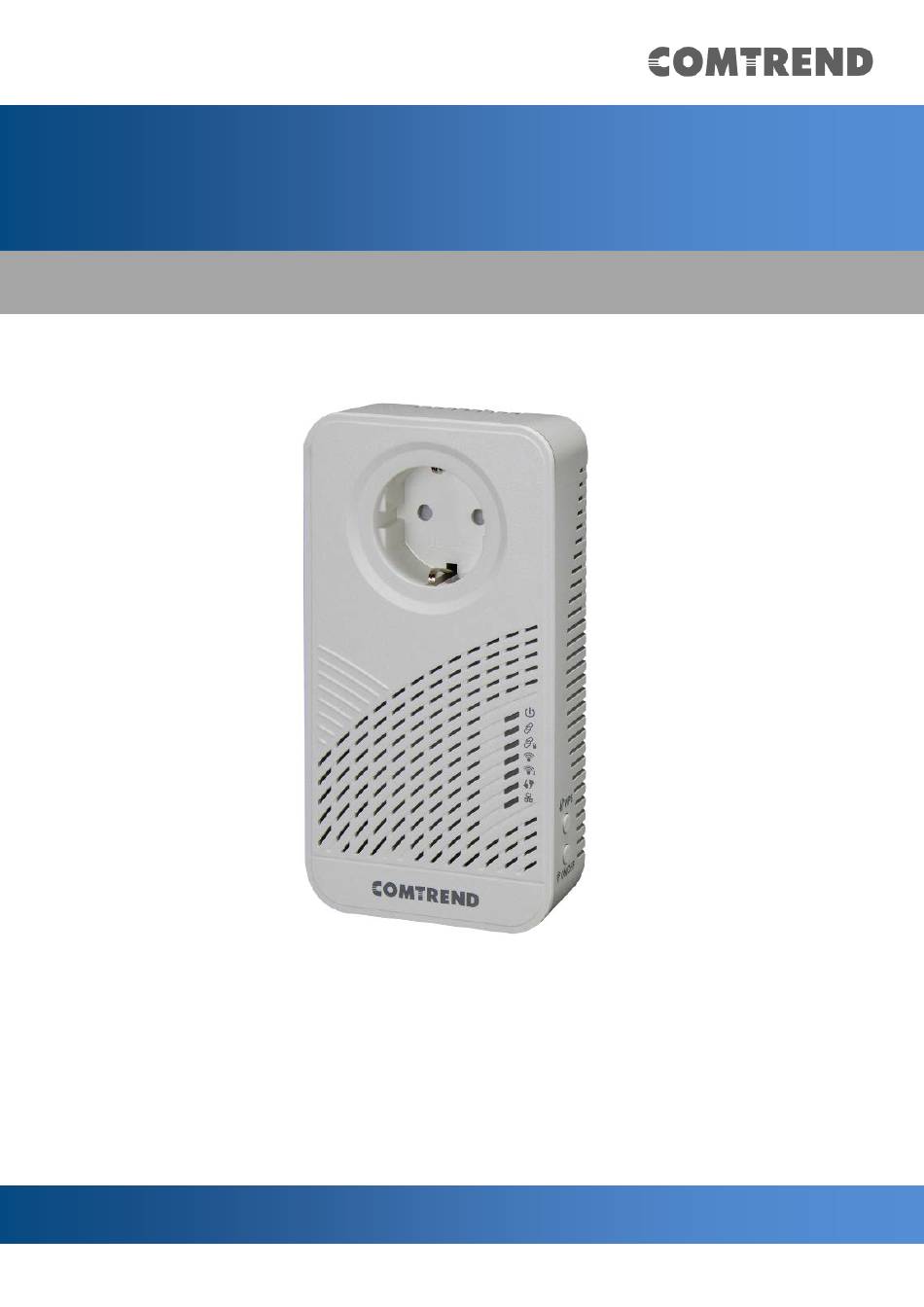

  • Page 1 PG-9182AC Powerline Ethernet WiFi Adapter User Manual of web UI Management Version A1.0, Jan. 29, 2018...
  • Page 2 COPYRIGHT Copyright ©2013/2014 by this company. All rights reserved. No part of this Publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties,...
  • Page 3 Copyright Copyright©2017 Comtrend Corporation. All rights reserved. The information contained herein is proprietary to Comtrend Corporation. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Comtrend Corporation.
  • Page 4: Table Of Contents

    CATALOG CHAPTER 1: GENERAL INFORMATION ..................4 1-1 S ........................4 AFETY NFORMATION 1-2 S ........................7 YSTEM EQUIREMENTS CHAPTER 2: SYSTEM AND NETWORK SETUP ................8 2-1 C ............ 8 ONNECTING TO POWER LINE ACCESS POINT BY WEB BROWSER 2-2 C .................
  • Page 5: Chapter 1: General Information

    Chapter 1: General Information 1-1 Safety Information In order to keep the safety of users and your properties, please follow the following safety instructions: 1. This power line access point is designed for indoor use only; DO NOT place this power line access point outdoor. 2.
  • Page 6 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 7 ISED Canadian Notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 8: System Requirements

    1-2 System Requirements Computer or network devices with wired or wireless network  interface card. Any connected devices must feature a network port.  Web browser (Microsoft Internet Explorer 4.0 or above, Google  Chrome web browser, Opera web browser, or Safari web browser).
  • Page 9: Chapter 2: System And Network Setup

    Chapter 2: System and Network Setup 2-1 Connecting to power line access point by web browser PG-9082 supports two kinds of management IP simultaneously. DHCP client, which gets dynamic IP address from Modem/Broadband Router/Home Gateway. Static IP, 192.168.0.10 by default, which can be configurable in web UI.
  • Page 10: Connecting To Web Management Interface

    Connecting to Web Management Interface All functions and settings of WiFi AP of PG-9082 must be configured via web management interface. Please start your web browser, and input ‘192.168.0.10’in address bar, then press ‘Enter’ key. The following message should be shown: Please input user name and password in the field respectively, default user name is ‘root’, and default password is ‘12345’, then press ‘OK’...
  • Page 11: View System Information

    2-3 View System Information The system information will be displayed, as shown below: The system information is on the left-side corner of the web page.
  • Page 12 Here are descriptions of every item: 2.4GHz Network Displays 2.4GHz AP status, Channel, SSID string and BSSID. 5GHz Network Displays Firmware version of Wireless. This information is helpful when you need online help from the dealer of purchase. Common WiFi and G.hn Image version information. WiFi Image version: PG-9082-WLAN-684151CTL-B01_R0 G.hn Image version:...
  • Page 13: Network Settings

    2-3 Network Settings The static IP for local management. Click “Apply” will reboot system for new modifications activation. 2-4 Station List This is page shows the information of wireless Stations that are connected to PG-9082. Here are descriptions of every item: MAC address This option will disable your Wireless station connecting to PG-9082 at 2.4G or 5GHz...
  • Page 14: Time Settings

    2-5 Time Settings This page is set the local time zone for TR069 management, in the current version, local time zone is not configurable through web UI. Thee current setting is (GMT+0, England). 2-6 Access Policy Here are descriptions of every item: Policy: This option will allow/reject the list of wireless stations.
  • Page 15: Administration

    2-7 Administration Here are descriptions of every setup item: Software Upgrade Select the firmware file of WiFi AP of PG-9082 at the local driver of the laptop. The PG-9082 is supporting a single TR069 entity for both WiFi and G.hn PLC Components Wi-Fi Image version: Versions...
  • Page 16: Monitor

    2-8 Monitor Monitor is to show the statistics on LAN, 2.4G & 5G interfaces. 2-9 Logout Log out the web management.
  • Page 17: Chapter 3: Wireless Configurations

    Chapter 3: Wireless Configurations 3-1 2.4G Wireless Settings This page is to configure basic setting for 2.4GHz interface of access point. Here are descriptions of every setup item: Enable 2.4Ghz Ticked is enabling 2.4GHz radio. Radio Broadcast SSID Decide if the wireless power line access point will broadcast its own SSID or not.
  • Page 18: G Security Settings

    & ’20 MHz’ only. WMM (Wi-Fi Multimedia) technology, which can improve the performance of certain network applications, like audio/video streaming, network telephony (VoIP), and others. When you enable WMM function, the power line access point will define the priority of different kinds of data, to give higher priority to applications which require instant responding.
  • Page 19: G Wps Settings

    3-3 2.4G WPS Settings 3-4 5G Wireless Settings This page is to configure basic setting for 5GHz interface of access point. Here are descriptions of every setup item: Enable 5Ghz Ticked is enabling 5GHz radio. Radio Broadcast SSID Decide if the wireless power line access point will broadcast its own SSID or not.
  • Page 20: Security Settings

    SSID of your wireless power line access point (set the option to ‘Disable’), so only people those who know the SSID of your wireless power line access point can get connected. SSID Please input the SSID (the name used to identify this wireless access point) here.
  • Page 21: Wps Settings

    3-6 5G WPS Settings...
  • Page 22: Chapter 4: Cli Commands For Tr069 Settings Via Telnet

    Chapter 4: CLI commands for TR069 settings via Telnet A system reboot is required for new settings. ACS URL settings,  nvram_set 2860 TR069URL [http://domain or IP/string] For example: nvram_set 2860 TR069URL http://220.128.128.235/cpe/?pd128 Display the current settings, nvram_get 2860 TR069URL ACS username, ...
