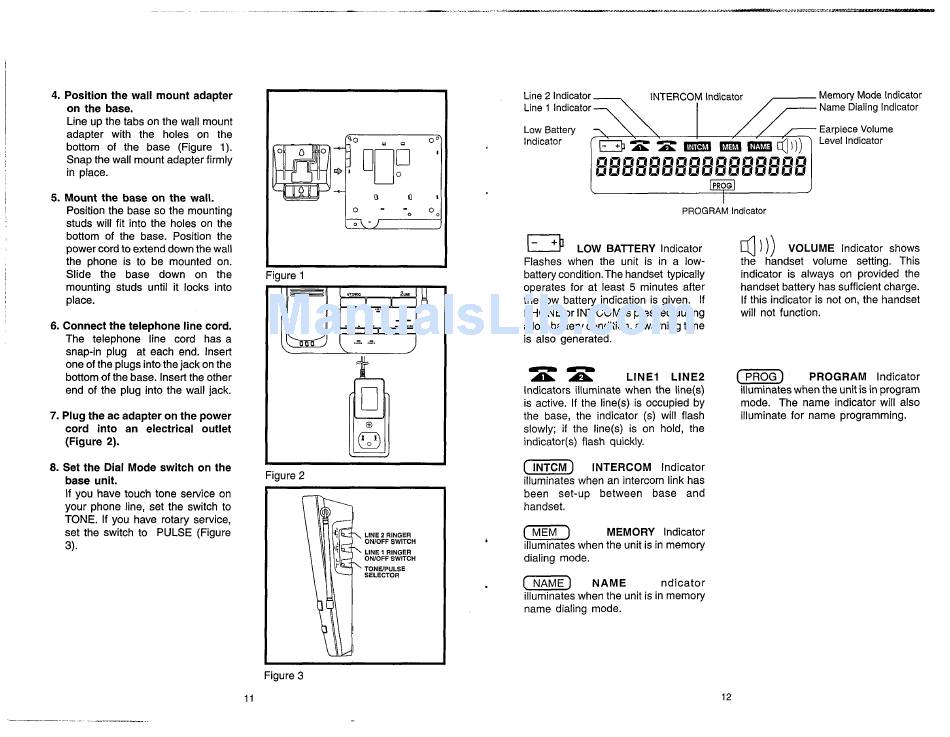

4. Position the wall mount adapter
on the base.
Line up the tabs on the wall mount
adapter with the holes on the
bottom of the base (Figure 1).
Snap the wall mount adapter firmly
in place.
1
5. Mount the base on the wall.
I
Position the base so the mounting
studs will fit into the holes on the
bottom of the base. Position the
power cord to extend down the wall
the phone is to be mounted on.
i
Slide the base down on the
I
mounting studs until it locks into
I
place.
I
6. Connect the telephone line cord.
The telephone line cord has a
snap-in plug at each end. lnsert
one of the plugs into the jack on the
bottom of the base. Insert the other
end of the plug into the wall jack.
7. Plug the ac adapter on the power
cord into an electrical outlet
(Figure 2).
8. Set the Dial Mode switch on the
base unit.
If you have touch tone service on
your phone line, set the switch to
TONE. If you have rotary service,
set the switch to PULSE (Figure
3).
.
Figure 1
Figure 2
LlNE 2 RINGER
ONlOFF SWITCH
LlNE 1 RINGER
OWOFF SWITCH
TONEPULSE
SELECTOR
Line
2
Indicator
INTERCOM
Indicator
, -
Memory Mode Indicator
Line
1
l n d i c a t o r 7
7
I
/--
Name Dialing Indicator
Low Battery
7
\ \
7
Earpiece Volume
Indicator
Level Indicator
PROGRAM lndicator
LOW BATTERY lndicator
4
)
))
VOLUME lndicator shows
Flashes when the unit is in a low-
the handset volume setting. This
battery condition.The handset typically
indicator is always on provided the
operates for at least 5 minutes after
handset battery has sufficient charge.
the low battery indication is given. If
If this indicator is not on, the handset
PHONE or INT.COM is pressed during
will not function.
a low battery condition, a warning tone
is also generated.
n n
A A
LINE1 LINE2
(
PROGRAM Indicator
Indicators illuminate when the line(s)
illuminates when the unit is in program
is active. If the line(s) is occupied by
mode. The name indicator will also
the base, the indicator
(s)
will flash
illuminate for name programming.
slowly; if the line(s) is on hold, the
indicator(s) flash quickly.
[ m )
INTERCOM lndicator
illuminates when an intercom link has
been set-up between base and
handset.
[ m )
MEMORY Indicator
illuminates when the unit is in memory
dialing mode.
.
(NAME)
NAME
ndicator
illuminates when the unit is in memory
name dialing mode.
Figure 3
