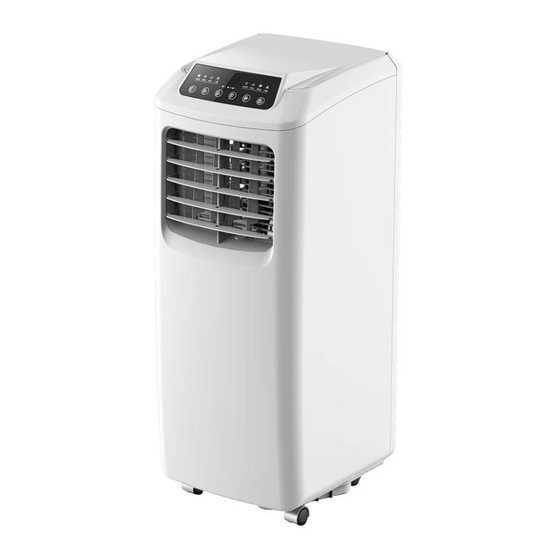

Summary of Contents for Elba EPAC-D3910

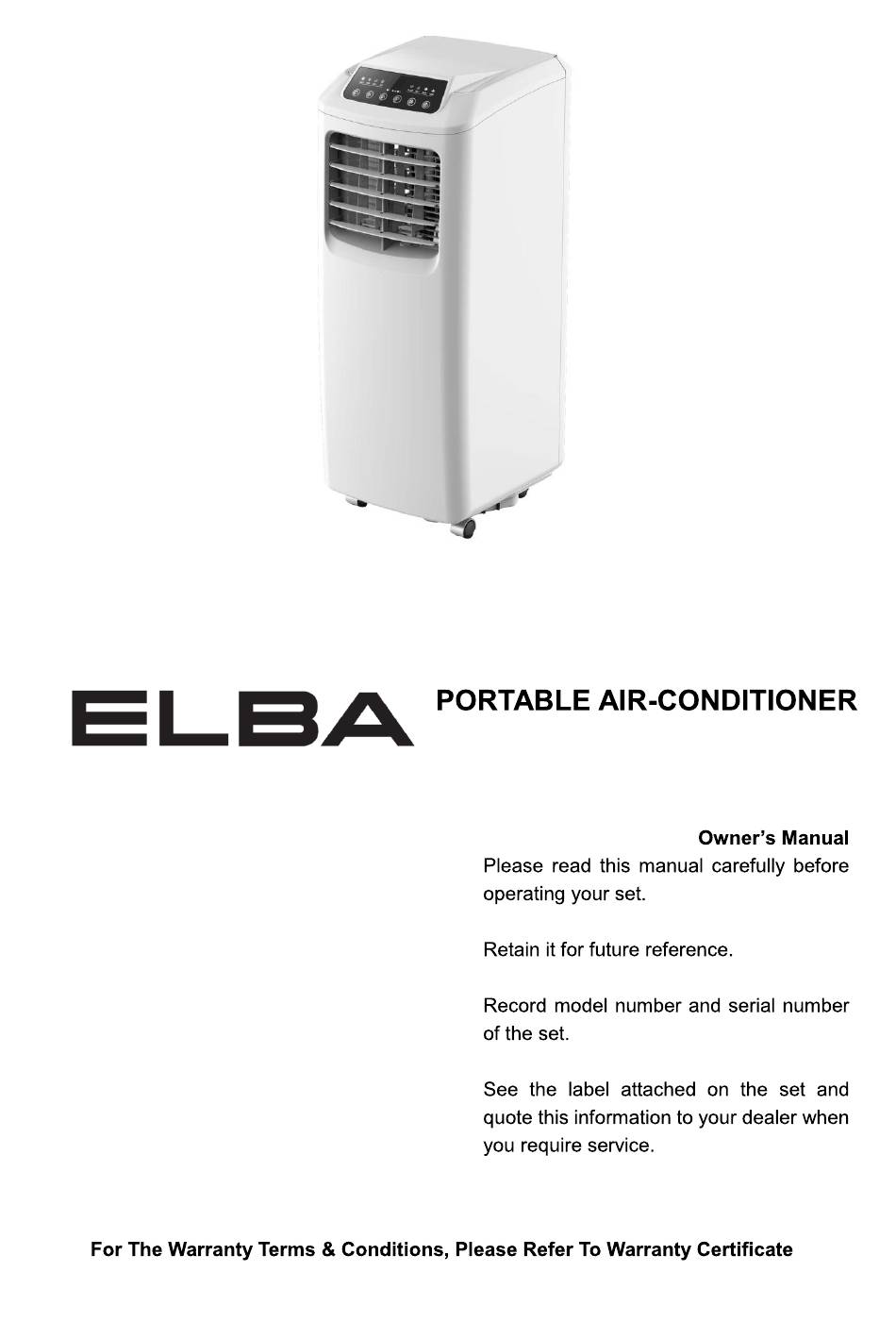

  • Page 1 MODEL: EPAC-D3910(WH)...
  • Page 2: Table Of Contents

    CONTENT SAFETY PRECAUTIONS..............2 PRODUCT DESCRIPTION………………………………………...3 INSTALLATION................4-5 CONTROL SETTING..............6 OPERATING INSTRUCTION.............7-8 DRAINAGE METHOD………………………….…………….……….8 CLEANING AND MAINTENANCE..........9 SEASONAL CLEANING………...........10 INTELLIGENT ERROR DETECTION……………………..………10 .............…..10 TROUBLESHOOTING ..............11 MAIN SPECIFICATION...
  • Page 3: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.
  • Page 4: Product Description

    PRODUCT DESCRIPTION 1. Control panel 15. Air outlet 2. Horizontal louver 16. Wire-winding post 3. Vertical louver 17. Drain cap 4. Air outlet frame 18. Evaporator filter mesh 5. Vertical louver lever 19. Evaporator filter frame 6. Caster 20. Radiating fine mesh 7.
  • Page 5: Installation

    INSTALLATION Installing the Appliance  Settle the appliance in an upright position for at least 2 hours before first use.  Always move the appliance in the upright position.  Do not install or operate this air-conditioner in a bathroom or other wet environments. ...
  • Page 6 Installing the Window Sealing Plate  Half open the window and mount the window sealing plate onto the window, either vertically or horizontally.  Adjust the opening width of the window so that the window can match with the sealing plate properly.
  • Page 7: Control Setting

    CONTROL SETTING Timer Display indicator This appliance has three modes: Cooling, Dehumidifying and Fan. The fan has two speeds. The temperature setting is from 17ºC to 30ºC (62ºF to 86ºF). 1. ON/OFF button Press this button to turn ON/OFF the appliance. 2.
  • Page 8: Operating Instruction

    6. Temperature / Time Display Window This window displays the adjusted temperature and time. When idle, it shows the room temperature. 7. Sleep Mode Indicator This indicator light will turn on when the sleep mode is activated. To activate the sleep mode, press the Timer and Down button simultaneously (Refer Sleep Mode).
  • Page 9: Drainage Method

    Timer mode  In standby state, press the timer key to set ON timer. Press Up and Down keys to set ON timer (0~24H), and the timer indicator lamp lights up.  In operating state, press the timer key to set OFF time. Press Up and Down keys to set OFF timer (0~24H), and the timer indicator lamp lights up.
  • Page 10: Cleaning And Maintenance

    Rubber plug Drainage...
  • Page 11: Seasonal Cleaning

    NOTE: Please pay extra attention when withdrawing the filter frame and filter mesh. Do not apply excessive force as it will damage the evaporator fins or the filter mesh.  Put the filters into lukewarm water with mild cleaner and dry it under the shades. Avoid brushing with metal brush or damage the filters.
  • Page 12: Main Specification

    Notice: When there is any abnormal operating condition to the appliance, turn it off and unplug from electrical mains, contact service centre for maintenance. MAIN SPECIFICATION Model No : EPAC-D3910(WH) Cooling Capacity : 10,000 BTU/h Thermostat Range : 17º C to 30º C (62º F to 86º F).
