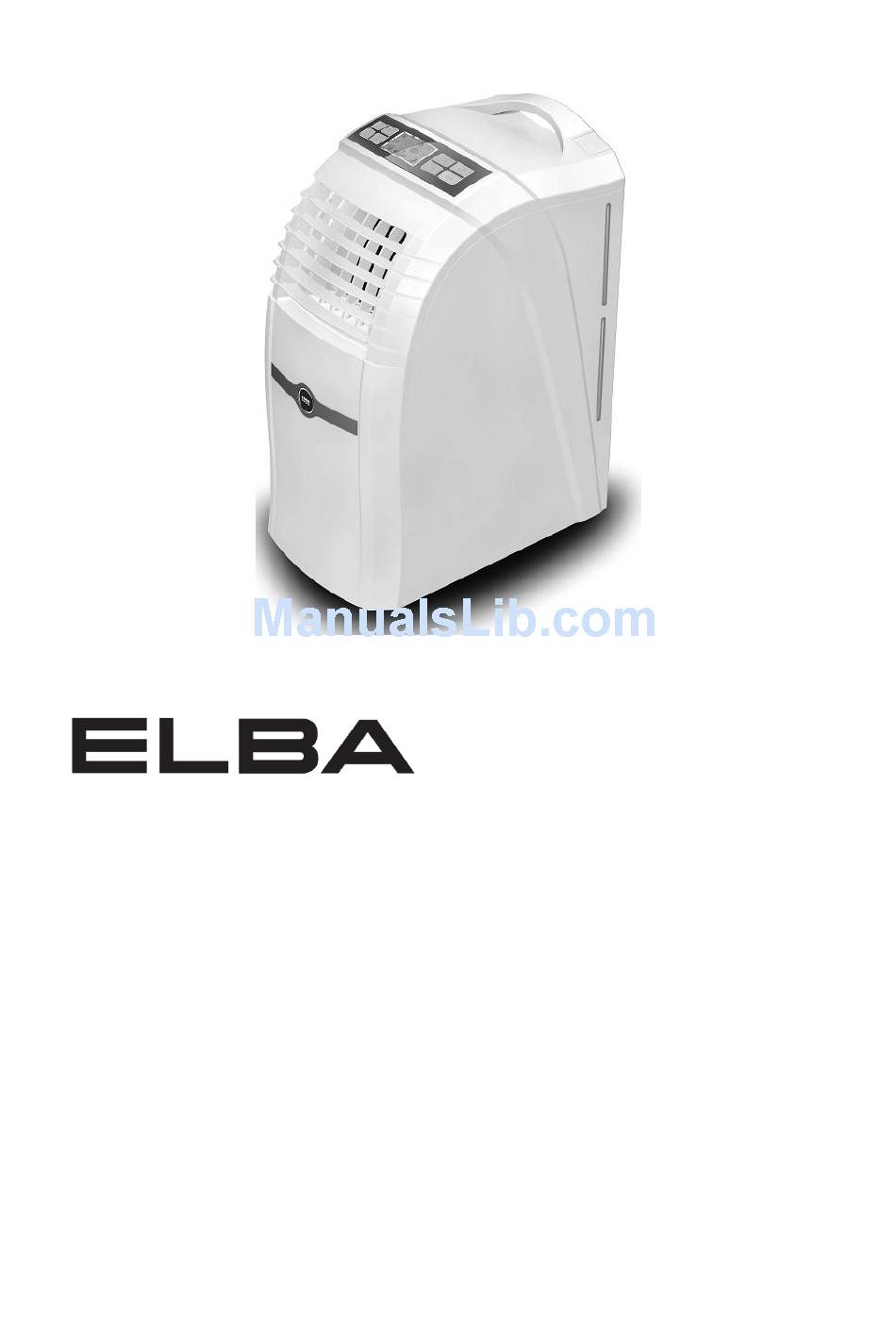

PORTABLE AIR-CONDITIONER
MODEL: EWS-9001C
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer when
you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWS-9001C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elba EWS-9001C

Summary of Contents for Elba EWS-9001C

  • Page 1 PORTABLE AIR-CONDITIONER MODEL: EWS-9001C Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.

  • Page 3: Product Description

    PRODUCT DESCRIPTION Control Panel Horizontal Louver Vertical Louver Handle Air-inlet Grille Castors Exhaust Pipe Water Filling Port Power Cord Hook Air Filter Air Outlet Grille Connector of Drainage Inner Tank Water Level Indicator Power Cord and Plug...

  • Page 4: Installation

    INSTALLATION  Place it on a flat and even place, and keep it at least 50cm away from its surrounding object.  Fix the square end of the exhaust duct to the air outlet behind the panel.  Insert the exhaust duct assembly into the window sealing plate; adjust opening width of window so that the window can match with the sealing plate properly.

  • Page 5: Incorrect Installation

    MOUNTING IN THE WALL CORRECT BENDING INCORRECT INSTALLATION  It’s important to keep the exhaust duct smooth. Incorrect installation will affect the efficiency of the appliance.  Prevent the exhaust duct from seriously bending.  Ensure air can flow smoothly in the duct. WARNING: The exhaust duct is designed especially for this model.

  • Page 6: Operation Procedure And Modulaton

    OPERATION PROCEDURE AND MODULATON ON/OFF Press the key to turn ON/OFF the appliance. MODE Press this key to select cool, dry or fan mode. UP/DOWN Press this key to set temperature or adjust the time in Timer Mode. Press both button simultaneously to switch between Celsius and Fahrenheit.

  • Page 7: Lcd Display

    LCD DISPLAY : Cool Mode Indicator : Dry Mode Indicator : Fan Speed Indicator : Water Full Indicator : In Cooling Mode it displays the set temperature. In Dehumidifying or Fan mode, it displays room temperature. When it shows E2 : The room temperature sensor is faulty. When it shows E3 : The evaporator sensor is faulty.

  • Page 8: Remote Control

    REMOTE CONTROL Power : To turn ON/OFF the unit. Timer : To set the ON/OFF timer. Swing : To swing/stop the louver. ºC ºF : To display Celsius (ºC) or Fahrenheit (ºF). Cooling : To select Cooling Mode. : To select Dry Mode. : To select Fan Only Mode.

  • Page 9: Operating Method

    OPERATING METHOD Cooling mode  When the cooling mode is selected after power ON, the cooling mode indicator lights up.  Press Up/Down key to adjust setting temperature (18ºC to 30ºC).  Press Speed key to choose High, Medium or Low fan speed. Fan mode ...

  • Page 10: Drainage Method

    WATER FILLING METHOD The condensing water from the appliance is recycled to improve efficiency through cooling condenser. At the same time it could lower the noise and save energy. When the condensing water is not enough for pumping, the water filling indicator will illuminate. You may add water to the water tank as shown below.

  • Page 11: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Notice: In order to avoid electric shock, please turn off the appliance and unplug before maintenance or repair. EXTERNAL CLEANING  Always switch off and unplug before cleaning.  Clean the appliance with a damp cloth with mild cleaner. Do not use chemical, steel, wooden or abrasive cleaners to clean the appliance.

  • Page 12: Seasonal Cleaning

    SEASONAL CLEANING If the appliance will not be used for a long time:  Pull out the rubber plug to drain off the remaining water.  Operate the appliance in wind mode for 2 hours until the inside is dry. ...
  • Page 13 MAIN SPECIFICATION Model No : EWS-9001C Cooling Capacity : 9,000 BTU/h Thermostat Range : 18ºC to 30ºC Max Air Flow : 425m Rated Voltage : 220-240V Rated Frequency : 50Hz Power Consumption : 1050W Refrigerant : R410a / 420g NOTICE This product must not be disposed together with domestic waste.
