Dimplex 6901860100 Parts & Service Manual page 9

LOWER LIGHT BULB REQUIREMENTS
Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base,
60 watt rating.
If unit was operating prior to servicing allow at least 10 minutes for light bulbs and
heating element to cool off to avoid accidental burning of skin.
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
TO REPLACE MAIN POWER SWITCH
1. Unplug the unit from power outlet.
2. On the back of the unit, remove the 10 screws along the top, sides and bottom from
the Compact Fireplace, and the 2 screws from the light access cover that secure it to
the mantel.
3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass
so that it does not move.
WARNING
The front glass is held to the Compact Fireplace with double sided tape and could come
apart when separated from the mantel
4. Remove the front glass and set aside.
5. Remove the log set screw and remove the log set.
6. Lay the Compact Fireplace on its back.
7. Remove the 4 bottom access panel screws and separate the bottom access panel
from the unit.
8. Locate the Main Power switch and disconnect the wiring connections noting their
original locations.
9. Depress the retainer clips on the rear of the switch and push the switch out of the
bottom access panel.
10. Properly orientate the new switch and connect all of the wiring connections.
11. Reassemble in the reverse order as above.

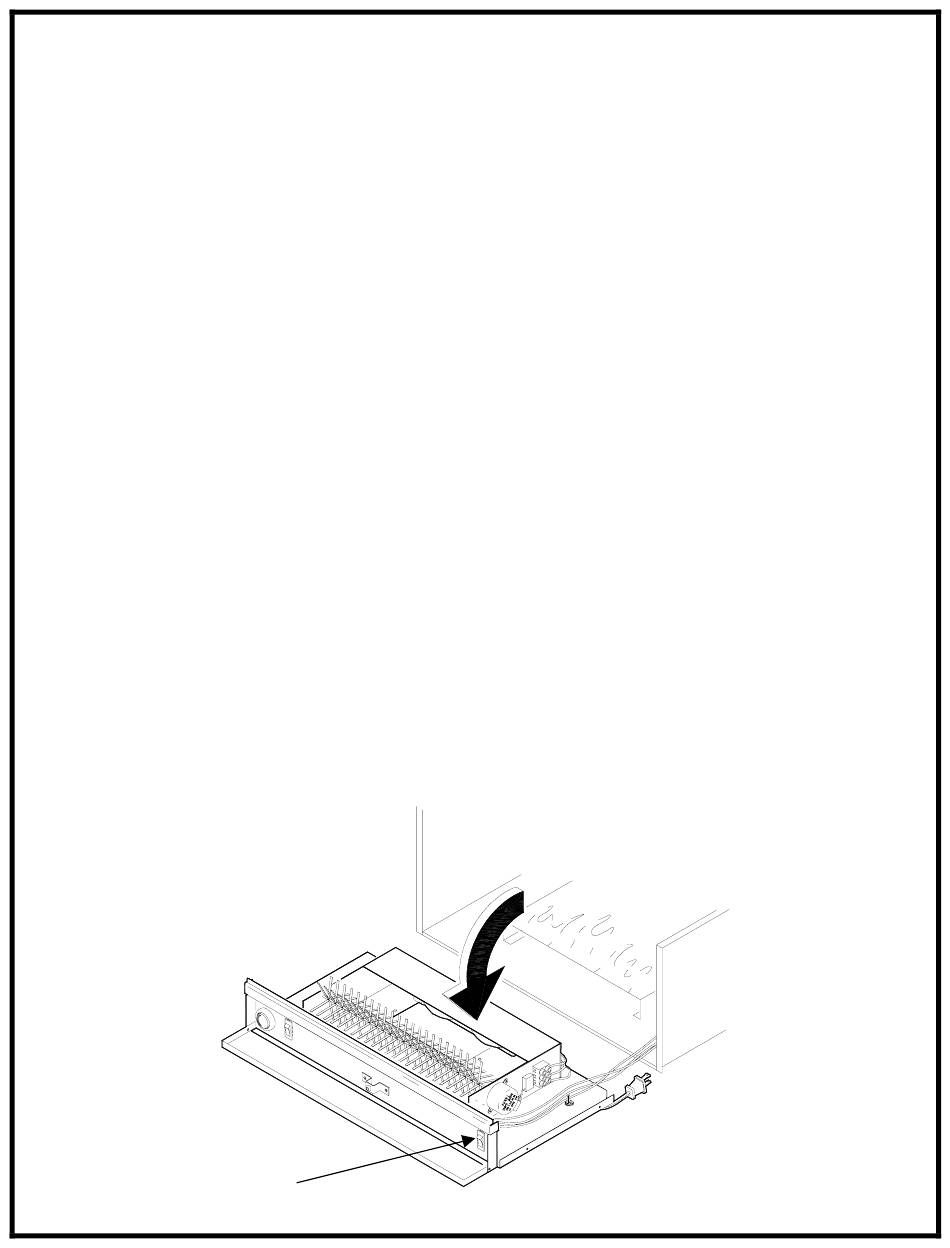

MAIN POWER SWITCH
8
