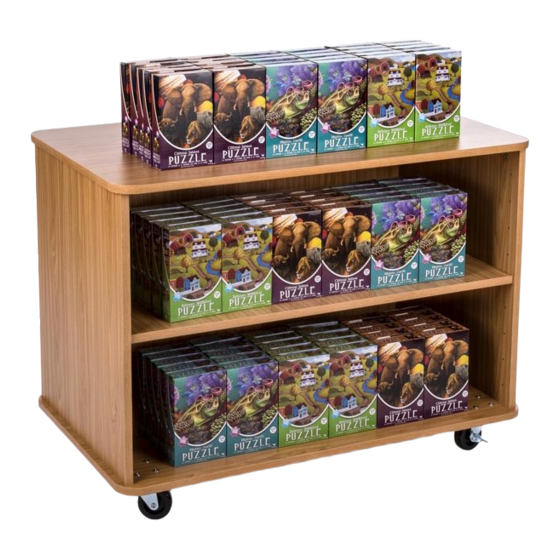

Displays2go NESTING SHELVES WITH WHEELS MBSHF Assembly Instructions

ASSEMBLY INSTRUCTIONS
MBSHF - NESTING SHELVES WITH WHEELS
Attention: Before starting assembling, please prepare a soft surface work area on the floor. Carefully remove all hardware from packaging and place
the hardware parts on the soft work area where they will not come in contact with the wood boards. 2 PERSON RECOMMENDED.
HARDWARE
A Cam Post
B Dowel
C Caster Screw
D Tooth Washer Lock Nut
E Caster
F Cam Lock
G Wood Screw
H Shelf Pin

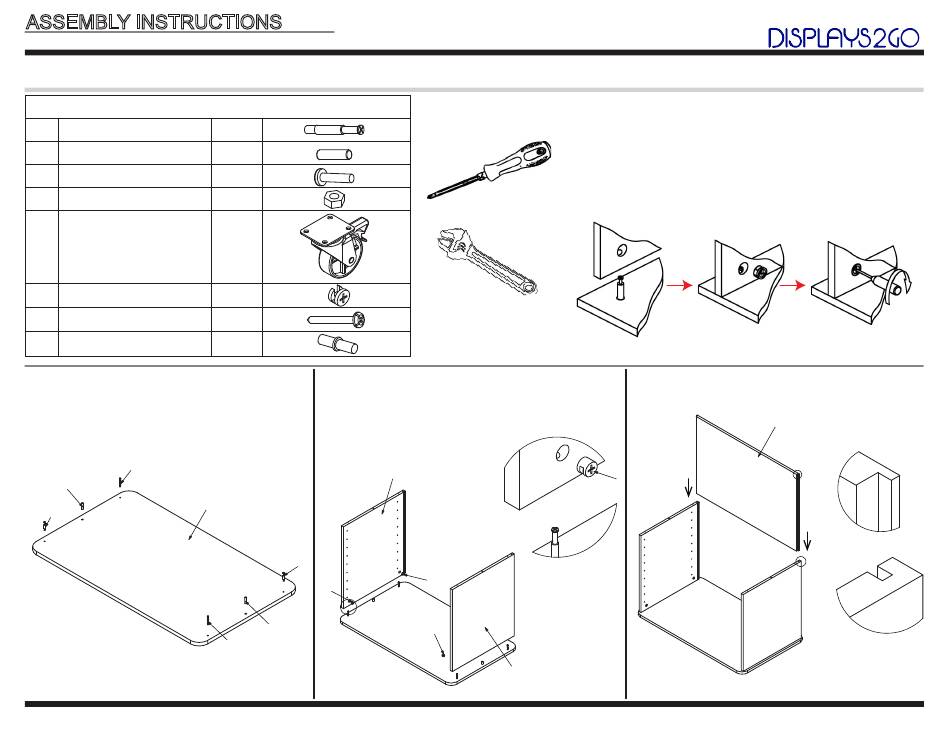

1. Place the top wood panel on the soft surface
with pre-drilled holes facing up. Screw in 4 cam
posts (A) with phillips screw driver, and insert 2
dowels (B) as shown below.
A
B
A
Ver. 08/18
4pcs
4pcs
16pcs
16pcs
4pcs
4pcs
4pcs
4pcs
2. Fit cam holes in the edge of left and right panel
over the corresponding cam posts installed on top
panel in step 1. Insert 4 cam locks (F) into the cam
lock holes and tighten them with screw driver.
Top Wood Panel
A
F
a
B
A
Tools needed:
Phillips Screw Driver
Wrench
Right Wood Panel
F
F
Left Wood Panel
How to join 2 boards with CAM lock:
(a) Insert cam post into flat surface of a board. Fit the hole in the
edge of the joining board over the cam post.
(b) Each cam lock has an open sec�on at the back. Insert the cam
lock into the cam lock holes. Be sure the opening fits the head of
the cam post.
(c) Use a screw driver to turn the cam lock clockwise so it locks onto
the head of the cam post. Do not over �ghten.
(a) (b)
3. Slowly insert both edges of the back panel into
grooves in the side panel. See image below:
F
a
(c)
Back Wood Panel
b
b
c
c
Page 1
