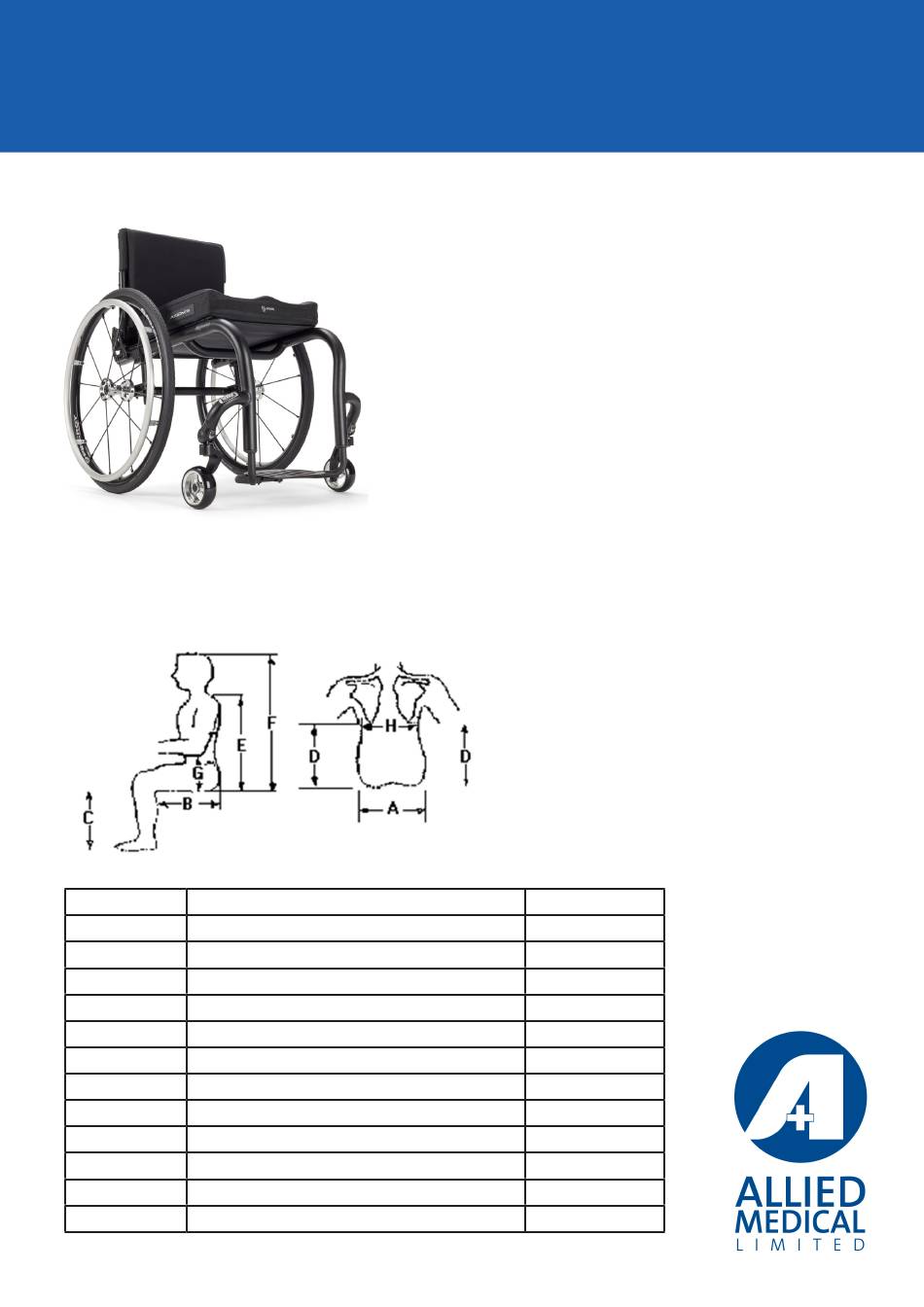

Allied Medical Set-Up Guide
1. Required measurements for set up
Letter
Body Part
A
Hip
B
Thigh (Right)
B
Thigh (Left)
C
Right Leg
C
Left Leg
D
Right back height (below scapula)
D
Left back height (below scapula)
E
Shoulder to seat
F
Top of head to seat
G
Right elbow to seat
G
Left elbow to seat
H
Back width (below scapula)
Ki Mobility Rouge
Tools required:
Allen keys: 2.5mm; 3mm; 4mm; 5mm; 6mm
Utility Blade
Two 8mm spanners
Two 10mm spanners
13mm spanner
17mm spanner
19mm spanner
24mm spanner
Phillips screwdriver
Punch or small screwdriver
Script
Required (Y/N)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ki Mobility Rouge and is the answer not in the manual?

Questions and answers

Summary of Contents for ALLIED MEDICAL Ki Mobility Rouge

  • Page 1 Allied Medical Set-Up Guide Ki Mobility Rouge Tools required: • Allen keys: 2.5mm; 3mm; 4mm; 5mm; 6mm • Utility Blade • Two 8mm spanners • Two 10mm spanners • 13mm spanner • 17mm spanner • 19mm spanner • 24mm spanner •...
  • Page 2 2. Available adjustments and options Seat Width • Seat width is measured from the outside of the frame tube on one side to the outside of the frame tube on the other side. • Check that there is enough room to slide your hand down between the armrest and thigh of the user.
  • Page 3 Adjusting the footrest Height adjustment: 1. Loosen the set screw on each side of the frame (A) using a 3mm Allen key. Be careful not to loosen all of the way. 2. Adjust footrest tube up or down to achieve the desired height (B). 3.
  • Page 4 High Mount Footrest Height Adjustment: 1. Loosen the two screws (A) using a 5mm Allen key which will allow you to move the clamps (C&D) up or down the frame tubing. 2. Set at appropriate height for the user and take care checking both sides are equal. 3.
  • Page 5 Adjusting Back Post Angle (do both sides together): 1. Remove bolt (H) using a 3mm Allen key. 2. Loosen I and E 3. Set the angle of the back rest by turning the arc adjustment cam and aligning the cam holes with the backrest plate holes.
  • Page 6 Seat Height Adjustment: 1. Rear Seat Height a. Remove rear wheels from quick release axle b. Use a 4mm Allen key and 8mm spanner to remove the two bolts (A) holding the upper and lower mounting brackets together. c. Reposition the mounting brackets to the desired height and replace the two bolts d.
  • Page 7 Adjusting Wheel Locks: 1. Loosen screws (A) with a 5mm Allen key 2. The wheel lock clamps (C&D) can now be moved along the frame to the desired position so that the wheel lock engages at least 1/8 inch into the tire and locks properly to prevent the chair moving when engaged 3.
  • Page 8 Adjusting T-Arm Height 1. Install T-Arm assembly into the receiver. Ensure the latch (B) “clicks” into place. 2. Adjust the height by loosening the height lever (A) and sliding the T-Arm post up or down. 3. Repeat steps on opposite side. Attaching Bolt-On Push Handle 1.
  • Page 9 Adjusting Rigid and Ergo Stroller Handle: Note: Ergo stroller handles only available on Rogue XP 1. To loosen the clamp, turn the clamp handle (D) anti-clockwise until the stroller handle can slide freely up or down in the clamp 2. Set to desired height 3.
  • Page 10 Adjusting the Castor Angle: For optimum performance, the castor housing should always be at 90° angle to the floor (perpendicular to the ground). 1. To change the angle, you will need an M5 Allen key. 2. Loosen the M8 button head screw (A) on the bottom of the castor housing wing. Turn the screw on the top of the castor housing wing (B).
  • Page 11 3. Tips & Tricks Note: Castor squareness should always be the last check made prior to use after adjustments or changes to the chair have been made. 4. Checklist What to check Done Seat Width Seat Depth Seat to foot plate length/angle/depth Back height and angle COG –...
