ALLIED MEDICAL Enhanced Display Quick Manual

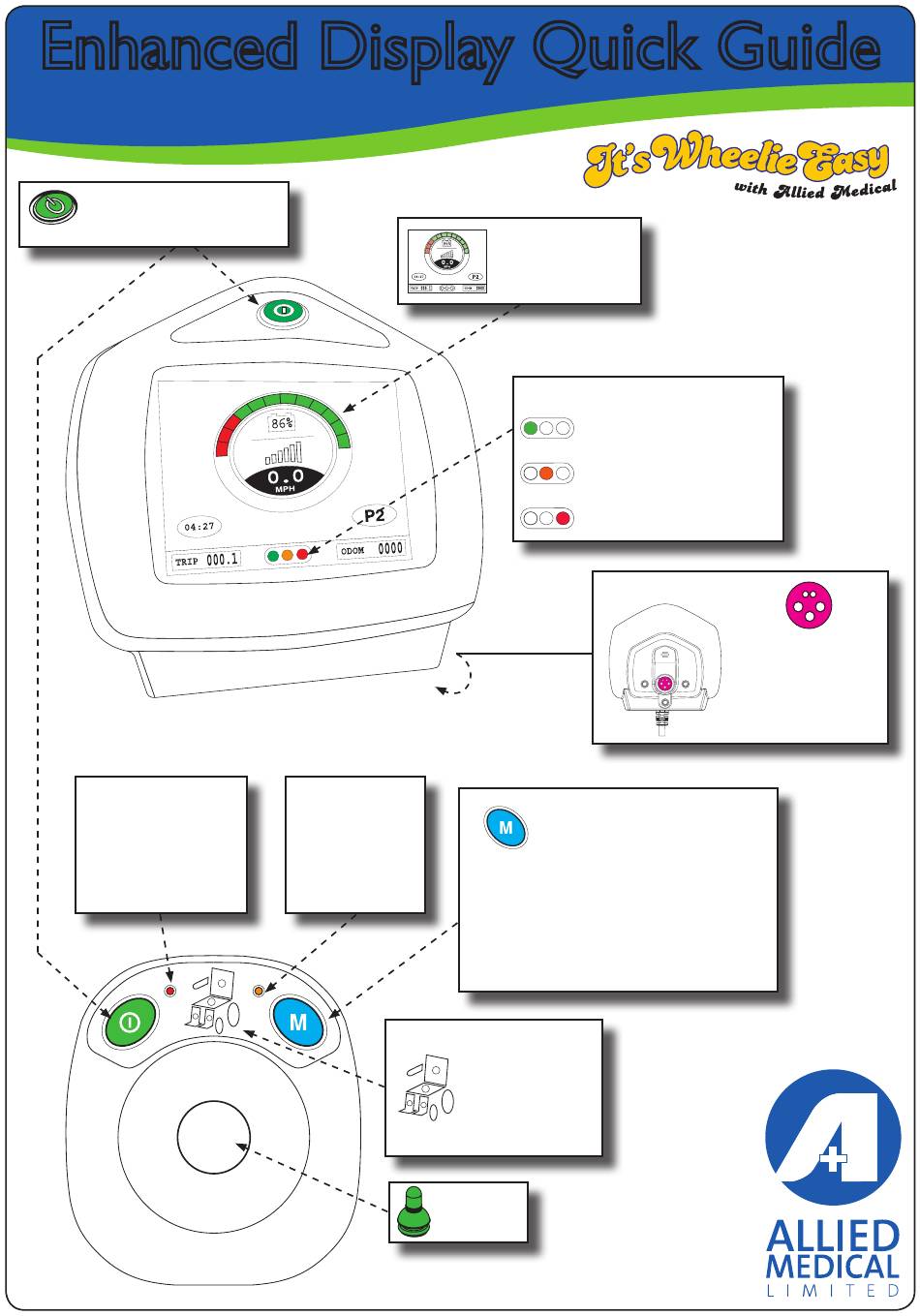

Enhanced Display Quick Guide
On/Off Switch
Push to power on your chair.
Push again to turn off your chair.
Battery LED
Shows how much charge
you have remaining.
Green = Full
Amber = Partial
Red = Low
Profile LED
Shows which drive
profile you are in.
Green = Profile 1
Amber = Profile 2
Red = Profile 3
Joystick
Battery Meter
Shows how much charge
you have remaining.
Drive Indicator
Drive active (green) - your
chair will move as normal
Speed limited (orange) - your
seat is raised and will drive slowly.
Drive stopped (red) - your
chair is tilted too far back.
Front View

Mode Button

Press to cycle between drive, seat
and auxillary profiles.
In drive profiles, use input device to
move
In seat profiles, use left/right to
select seat function and up/down to
adjust.
In auxillary profiles use input device
to navigate menu.
Seat Funtion
Shows which
function is selected.
Use up and down
on the joystick to
actuate.
PO Box 302 250
North Harbour
Freephone 0800 31 61 81
Ph 09 415 1685
Fax 09 415 1686
greatwheelchairs@alliedmedical.co.nz
www.alliedmedical.co.nz
Charger Port
This is where you plug
in your charger.
Remember to charge
your chair every night.
