BitaTek Cyclops Series Configuration Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

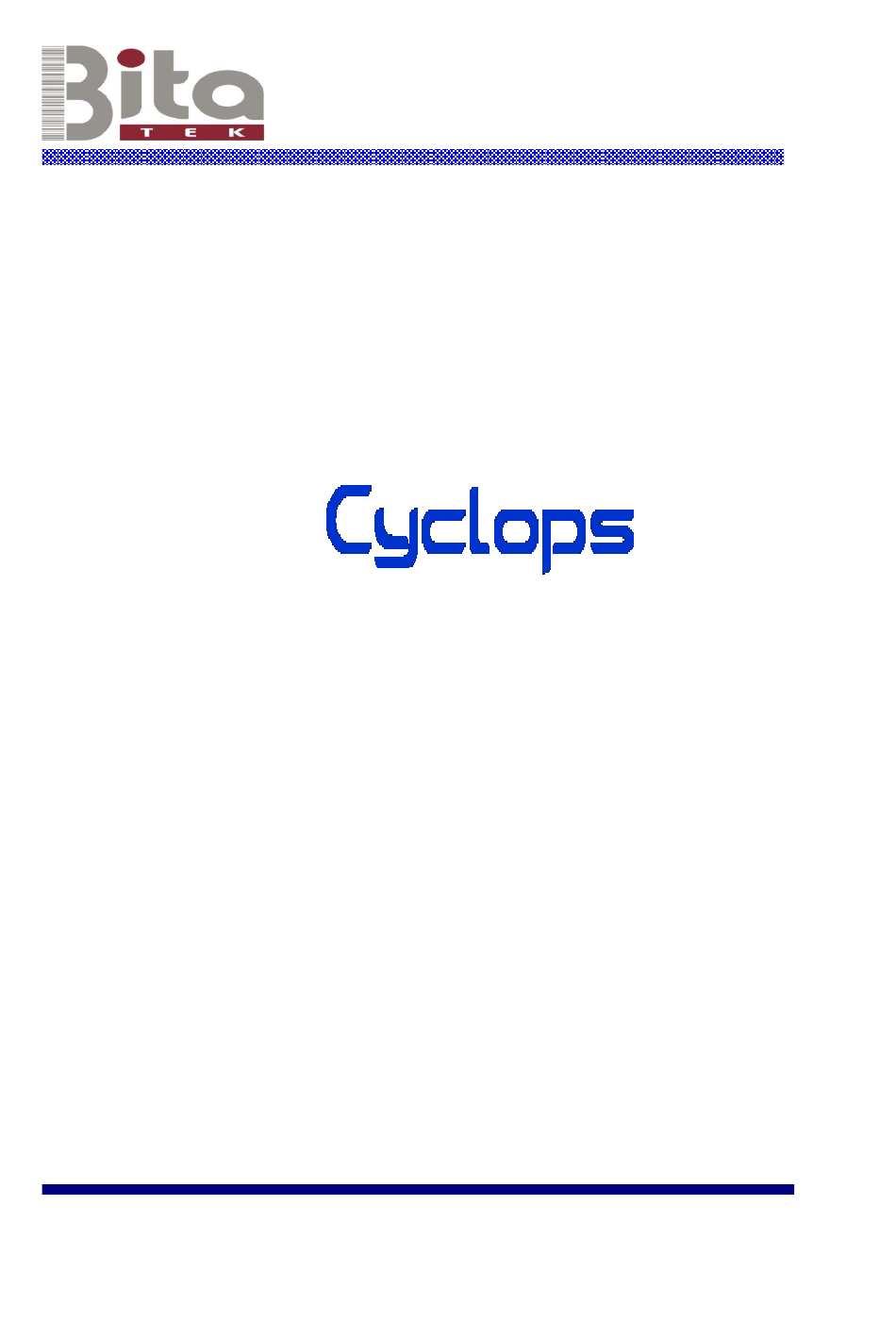

Configuration Guide
Version 1.2
Sept /19/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyclops Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BitaTek Cyclops Series

Summary of Contents for BitaTek Cyclops Series

  • Page 1 Configuration Guide Version 1.2 Sept /19/2014...

  • Page 2: Table Of Contents

    Table of Contents Device Description ......................4 Operating Modes ........................ 6 Function Key Description ....................7 LED Indicators and Buzzer Sound ..................8 Bluetooth Connection ....................... 11 5.1. Specifications ....................... 11 5.2. Data Transfer via Bluetooth Under Batch Mode ..........12 5.3.
  • Page 3 9.2.5. Barcode Reading and Scanner Settings ............ 52 9.2.6. Setting Barcodes for Alpha-Numeric Entries ........... 69 Appendix 1 ....................... 74 Appendix 2 ....................... 75 CYCLOPS-I BT Scanner Configuration Guide...

  • Page 4: Device Description

    1. Device Descriptions Scan Window Bluetooth LED Scan LED Charging LED Scan Key Function Key USB Port Reset Button Strap hole Item Description Scan Window Reading light will be emitted through this window. Charging LED Battery Status Green ON：Charging Finish Green OFF：Battery Low Red ON：Charging Red OFF：Battery fail...
  • Page 5 Item Description Communication LED Bluetooth Communication Status Blue QUICK-FLASH：Bluetooth is not connected Blue SLOW-FLASH：Bluetooth is Connected USB Connection Status Green ON：USB connected Green SLOW-FLASH：Transmission in process Press and hold more than 3 seconds： Power ON SCAN Key Press：Scan a Barcode FUNCTION Key In difference operating modes, it will have difference functions...

  • Page 6: Operating Modes

    2. Operating Modes This device have three Operating Modes, the factory default is Real-Time Mode. Operating Modes can be changed by scanning configuration barcodes. As a security measure, Operating Modes can’t be changed if there is any data record in the data file（data.txt）hasn’t been uploaded .

  • Page 7: Function Key Description

    3. Function Key Descriptions The follow table gives the description of actions of the FUNCTION key in various Operating Modes. Actions Power Batch Real-Time Mode Hybrid Mode Mode Disconnect Disconnect SCAN Key Power — — — ( press more then 3 seconds) SCAN Key Data file...

  • Page 8: Led Indicators And Buzzer Sound

    4. LED Indicators and Buzzer Sound The follow table gives the description of LED indicators and buzzer sound on different events. Device Status SCAN LED Charging LED Bluetooth LED Sound Successful Scan Green (50ms) Scan Failed (5-sec Red (300ms) Bi, Bi, Bi decoding time out) Successful Green...
  • Page 9 “Record Not Found Bu, Bu, Bu in Data File” When (ERROR press FUNCTION Sound) key to delete in Batch Mode. “Record Format of Red( 300ms) Bu, Bu, Bu Data File Been (ALERT Changed” Sound) “Battery Charging” “Battery Charging Red Flash On：100 ms Fail”...
  • Page 10 Data File Has Been Transmitted Under Batch Mode” “Bluetooth Red( when Slow Blue Flash Reconnected and data file is Data File Is Being transmitting ) Transmitted Under Hybrid Mode” USB Connected Blue ON “USB Data Being Quick Blue Transmitted” Flash Press FUNCTION Blue ON Key and Wait 6-sec...

  • Page 11: Bluetooth Connection

    5. Bluetooth Connection 5.1. Specifications CYCLOPS-I is a wireless interface device. It follows Bluetooth ver2.1+EDI Class II specification, including the SPP( Serial Port Profile ) and HID( Human Interface Device Profile) on this device, The same profile must be available on the device (ex. iPhone, iPad or PC ) to be paired for successful Bluetooth connections.

  • Page 12: Data Transfer Via Bluetooth Under Batch Mode

    5.2. Data Transfer via Bluetooth Under Batch Mode Scanned data saved in data file memory under Batch Mode can be retrieved via Bluetooth. CYCLOPS-I has to be changed to Bluetooth Data Transfer Mode. Please refer to < 5.3 SPP Communication >. Item Description Data File...

  • Page 13: Data Format Of Spp Mode

    5.3.1. Data Format of SPP Mode Bluetooth communication of SPP mode is simulating the communication of virtual serial Port. Application software must be installed and executed at host device to handle the handshaking process with CYCLOPS-I. Data format of SPP data transfer of CYCLOPS-I is as the following: [Prefix][Data Length][Data][Checksum][Suffix] Item Byte Count...
  • Page 14 Data format of the result return sent by CYCLOPS-I to host device after executing host command is shown as the following. [Start][Command][,][Response][End] Field Format Description Start Starting character of response after executing host command Command 1 ~ 8 Response after executing host command ( among 1 to 8 ) ，...

  • Page 15: Hid Communication

    Function Host Sends Host Receives Notes Read Date & !3<CRLF> RE3, CYCLOPS-I will return Date & Time of YYYYMMDDHHMM Time according to this CYCLOPS-I <CRLF> command to host device. Power status !4<CRLF> RE4,F<CRLF> CYCLOPS-I will return battery RE4,M<CRLF> status to host device. RE4,L<...
  • Page 16 By pressing FUNCTION key, CYCLOPS-I can call or hide the software keyboard on iPhone or iPad after CYCLOPS-I has been completed the Bluetooth connections with these host devices. ※ To connect CYCLOPS-I with iPhone or iPad, version of the iOS must be 5.0 or beyond. ※...

  • Page 17: Usb Connection

    Micro-USB, type B Charging DC5V Please charge CYCLOPS-I with AC adapter provided by Bitatek or authorized distributors/resellers. CYCLOPS-I can also be charged using the optional USB interface cable via host system USB port directly. Charging CYCLOPS-I using unauthorized AC adapter might lead to damaging CYCLOPS-I due to improper voltage or current ratings.

  • Page 18: Usb Data Transfer Mode

    When CYCLOPS-I is connected with host device via USB cable, CYCLOPS-I memory will be regarded as a USB disk ( Mass Storage Device ).. ※Please use the optional USB cable provided by Bitatek or Bitatek authorized distributor/reseller. USB Memory Under Batch Mode, maximum records of <data.txt> are 8000 records...

  • Page 19: Data Format Of Usb Connection

    6.3. Data Format of Data File The recode size is 128-Byte/record in <data.txt>. Scanned data will be saved into this data file according to details as described in <9.2.4 Batch Mode Settings>. Data format of <data.txt> is described as in the following. [Mark][Checksum][Delimiter][Timestamp][Delimiter][Data][Termination] Field Bytes...

  • Page 20: Using Cyclops-Scanner

    7. Using CYCLOPS-scanner The user can follow the follow chart to select the best mode for use. Start The scan data must be save to memory and Selsect Batch mode doesn’t need pairing (reference 8.1 Batch mode setting) with smart phone or PC via Bluetootn? Use Bluetooth transfer data...

  • Page 21: Configuring Cyclops-Scanner

    8. Configuring CYCLOPS-Scanner To choose the most suitable Mode to use CYCLOPS-I in your application, please refer to <7. Using CYCLOPS-I Scanner>. 8.1. Batch Mode Setting If the application needs to scan barcode data and store the scanned data into the memory of CYCLOPS-I, Batch Mode will be the mode suitable for this application.

  • Page 22: Data Transfer Via Spp Master Mode

    8.1.2. Data Transfer via SPP Master Mode Function Parameter Setting Barcode Code ID Enter Input B001A Physical Address of BT Module Commu. Enter SPP A001B Start Master Mode Operat. Batch Mode A014A2 Mode Setting Wait Host Start Data A033A Command Transfer under Bluetooth...

  • Page 23: Real-Time Mode Settings Under Hid Mode

    Function Parameter Setting Barcode Code ID Operat. Mode Batch A014A2 Setting Mode Wait Host Start Data A033A Command Transfer Under Bluetooth Bluetooth Commu. Commu. 8.2. Real-Time Mode Setting Under HID Mode CYCLOPS-I, when been paired with iPhone, iPad of Apple product, or other host devices like Android smart phone, tablet, or PC and CYCLOPS-I acts like a keyboard input of these host devices.

  • Page 24: Real-Time Mode Settings Under Spp Mode

    8.3. Real-Time Mode Setting Under SPP Mode If fault-proof of Bluetooth data transmission is among all critical requirements, Real-Time Mode under SPP Mode should be chosen for this task. Real-Time Mode under SPP Mode is a virtual serial port data communication between CYCLOPS-I and host device.

  • Page 25: Real-Time Mode Settings Under Spp Slave Mode

    8.3.2. Real-Time Mode Setting Under SPP Slave Mode Function Parameter Setting Barcode Code ID Commu. SPP Slave A002A Setting Mode Operat. Real-Time A014A1 Mode Mode Setting 8.4. Hybrid Mode Setting Under SPP Mode Due to out of range or other reasons, Bluetooth might be disconnected sometimes while CYCLOPS-I is in use.

  • Page 26: Hybrid Mode Settings Under Spp Slave Mode

    Function Parameter Setting Barcode Code ID Commu. Enter SPP A001B Start Master Mode Operat. Hybrid A014A3 Mode Mode Setting 8.4.2. Hybrid Mode Setting under SPP Slave Mode Function Parameter Setting Barcode Code ID Commu. SPP Slave A002A Setting Mode Operat. Hybrid A014A3 Mode...

  • Page 27: System Detail Configurations

    9. System Detail Configurations 9.1. Factory Default Settings CYCLOPS-I Factory Default Parameters are shown as in the following table. Item Default CYCLOPS-I Operating Mode Real-Time Mode Communication Mode HID Mode Device Name BTS600 + last 4-digital of BT MAC Address Authentication Disable Encryption...
  • Page 28 Under SPP Mode, the Real-Time Mode, Batch Mode (Bluetooth data transfer mode), and Hybrid Mode settings are shown as in the following table. Item Default Master Mode Reconnection Interval 30 seconds SPP Data Transfer Format STX[Digit][Data][CheckSum]ETX ACK/NAK Handling of SPP Mode Enable ACK/NAK handling ※...
  • Page 29 Item Default UPC/EAN/JAN supplemental Combined AIM Code ID format UPC-A check-digit Enable UPC-E check-digit Enable UPC-E1 check-digit Enable UPC-A preamble System UPC-E preamble System UPC-E1 preamble System UPC-E convert to UPC-A Disable UPC-E1 convert to UPC-A Disable EAN-8 convert to EAN-13 Disable UPC/EAN security level Level 3...

  • Page 30: System Configuration Barcodes

    Item Default I2 of 5 convert to EAN13 Disable Discrete 2 of 5 Disable Chinese 2 of 5 Disable Matrix 2 of 5 Disable Matrix 2 of 5 Redundancy Disable Matrix 2 of 5 check-digit verify Disable Matrix 2 of 5 check-digit transfer Disable Codabar(NW7) Enable...
  • Page 31 Real-Time Mode: When CYCLOPS-I is in Batch Mode or Hybrid Mode, if there is any record remained in <data.txt> file in the memory, CYCLOPS-I will not be allowed to be switched to Real-Time Mode. Records in <data.txt> file has to be deleted first before changing CYCLOPS-I to Real-Time Mode.
  • Page 32 Batch Mode: When using USB Data Transfer Mode, CYCLOPS-I needs to be set to SPP Slave Mode. Function Parameter Setting Barcode Code ID Batch USB Data A002A Mode Transfer Mode A014A2 Data A001B Transfer Mode under SPP Master Mode A014A2 Data A002A transfer...
  • Page 33 Hybrid Mode: Function Parameter Setting Barcode Code ID Hybrid SPP Master A001B Mode Communica tion mode A014A3 SPP Slave A002A communicat ion mode A014A3 ※ Please enter the physical address of BT module of the Host Device first, when using SPP Master Mode.
  • Page 34 Setting Barcodes for Device Name of CYCLOPS-I CYCLOPS-I device name, as Factory Default, is “BTS600” + “last 4-digit of physical address of BT module”. You can change the device name of CYCLOPS-I using the following setting barcodes. You can enter maximum 31-character for device name, you can and only enter 0~9, A~Z, a~z. Please use barcodes in <9.2.6 Setting Barcodes of Alpha-Numeric Entries>...
  • Page 35 Setting Barcodes of PIN Code You can enter 16-character for PIN Code, you can and only enter 0~9, A~Z, a~z. Please use barcodes in <9.2.6 Setting Barcodes of Alpha-Numeric Entries> to enter the PIN code. Function Parameter Setting Barcode Code ID PIN Code Input B018A...
  • Page 36 Setting Barcode of Power-OFF Time-Out Value Function Parameter Setting Barcode Code ID Power-OFF 1-minute A004A1 Time-Out Setting. 3-minute A004A2 5-minute A004A3 10-minute A004A4 15-minute A004A5 30-minute A004A6 45 minutes A004A7 60-minute A004A8 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 37 Setting Barcodes of Buzzer Indication on Reconnect/Disconnect Function Parameter Setting Barcode Code ID Beep on Enable A005A Reconnect / Disconnect Setting Disable A005B Setting Barcodes of Buzzer Indication on Failed Scan Function Parameter Setting Barcode Code ID Beep on Enable A006A Failed Scan Setting...

  • Page 38: Hid Mode Settings

    Setting Barcode of Buzzer Sound Volume Function Parameter Setting Barcode Code ID Buzzer A010A0 Sound Volume Setting A010A1 Middle A010A2 High A010A3 Setting Barcode of Restore Factory Default Setting Setting Barcode Code ID Restore Factory Default A012A Setting 9.2.2. HID Communication Settings HID Termination-Character Setting Function Parameter...
  • Page 39 You can utilize the following barcodes to add “ Additional Termination-Characters” to the scanned data, including Combination Keys ( such as “Shift”, “Alt”, “Ctrl” ). Alpha-Numeric character setting must be entered in 2-digit word ( Hex format ) and the word can only be 0~9, A ~ F.
  • Page 40 Setting Barcodes for Transfer Key Codes of Function Key Function Parameter Setting Barcode Code ID Transfer Key Disable A022A Code of Function Key Enable A022B Setting Barcodes for Combination Keys Associated With Function Key Function Parameter Setting Barcode Code ID Function Key Input B022A...
  • Page 41 Setting Barcodes for Delay Time Before Data Transmission under BT Communication Function Parameter Setting Barcode Code ID Delay Time None A023A0 Before Sending Data of Each 100 ms A023A1 Record 200 ms A023A2 300 ms A023A3 500 ms A023A4 CYCLOPS-I BT Scanner Configuration Guide...

  • Page 42: Spp Mode Settings

    Setting Barcodes for Delay Time Between Characters under BT Communication Function Parameter Setting Barcode Code ID Delay none A024A0 Time Between Characters of Each A024A1 Data Sent A024A2 A024A3 9.2.3. SPP Mode Setting This section is detailed settings about Real-Time Mode, Batch mode (Bluetooth data transfer mode), and Hybrid Mode under SPP Mode.
  • Page 43 Setting Barcodes for SPP Master Mode Reconnecting Time Interval Function Parameter Setting Barcode Code ID SPP Master None A007A0 Mode Reconnecting Time Interval A007A1 A007A2 A007A3 A007A4 A007A5 A007A6 A007A7 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 44 A007A8 Data Transfer Format Setting under SPP Mode When CYCLOPS-I is configured in Batch Mode or Hybrid Mode, if there is any records remained ( not uploaded, not deleted ) in <data.txt> file in the memory, the following configuration change can not be allowed. Setting Barcodes of Prefix Prefix setting must be 2-digit word, and the word can only be 0~9, A ~ F.
  • Page 45 Function Parameter Setting Barcode Code ID Check-Sum Check-Sum A019C Setting Exist A019D Check-Sum Setting Barcodes of Suffix Suffix setting must be 2-digit word, and the word can only be 0~9, A ~ F. For example, to set “，” as Suffix, you have to scan the barcode ID “B019A” first, then, “3”, “3”, and “EOC”.
  • Page 46 Setting Barcodes about ACK/NAK of SPP Communication Function Parameter Setting Barcode Code ID ACK /NAK Enable A020A of SPP Commu. Setting Disable A020B Setting Barcodes for Time-Out of ACK/NAK of SPP Communication Function Parameter Setting Barcode Code ID Time-Out of 100 ms A020C1 ACK /NAK...
  • Page 47 3 seconds A020C7 5 seconds A020C8 Setting Barcodes for Retry-Cycle of ACK/NAK of SPP Communication Function Parameter Setting Barcode Code ID Retry-Cycle None A020D0 of ACK /NAK of Commu. 1 cycle A020D1 Setting 2 cycles A020D2 3 cycles A020D3 CYCLOPS-I BT Scanner Configuration Guide...

  • Page 48: Batch Mode Settings

    Setting Barcodes for Key Code Sent When Press FUNCTION Key The Key code setting must 2 digital word, and the word can only 0~9, A ~ F. For example, Scan the barcode Id 「B019A」 first, then 「3」 、 「3」 、 「EOC」 , Key code is 『，』 Please use barcode of 【9.2.6 Alpha-Numerical Setting barcode】to enter the Key code。...
  • Page 49 Function Parameter Setting Barcode Code ID ； Termination A028A1 Character Setting Space A028A2 A028A3 Function Parameter Setting Barcode Code ID Record None A026A0 Termination Character Setting ， A026A1 Space A026A2 A026A3 A026A4 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 50 CRLF A026A5 A026A6 Setting Barcodes for RTC Time Clock Function Parameter Setting Barcode Code ID Read RTC Start A034A Date Year: please use 4-digit, in AD. Month: please use 2-digit. Date：please use 2-digit. Please use barcodes listed in <9.2.6 Barcodes for Alpha-Numeric Entries> to enter Date. Function Parameter Setting Barcode...
  • Page 51 Setting Barcodes of Bluetooth Data Transfer Function Parameter Setting Barcode Code ID BT Data Batch Mode A033A Transmission Mode Change Data Transmission Mode ※ This is the same as pressing SCAN + FUNCTION Key Function Parameter Setting Barcode Code ID Data From Top A038A1...
  • Page 52 Setting Barcode of FUNCTION Key Function Parameter Setting Barcode Code ID FUNCTION. Enable A037A Key Setting Disable A037B Setting Barcode for USB Memory Initialization The data file will be deleted on the USB memory include Data.txt and system.cfg Function Setting Barcode Code ID Memory Initialization A029A...
  • Page 53 Level 2 A041A2 Codabar Discrete 2 of 5 Level 3 A041A3 Interleaved 2 of 5 Level 4 A041A4 Inverse 1D Regular A098A0 Barcode Only A098A1 Inverse Barcode Auto A098A2 Code ID None A112A0 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 54 AIM Code A112A1 Symbol A112A2 Code ID UPC-A Disable A042A0 Enable A042A1 UPE-E Disable A043A0 Enable A043A1 UPE-E1 Disable A044A0 Enable A044A1 EAN-8 Disable A045A0 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 55 Enable A045A1 EAN-13 Disable A046A0 Enable A046A1 Bookland Disable A047A0 Enable A047A1 Bookland ISBN-10 A048A0 ISBN Format ISBN-13 A048A1 Decode Ignore A049A0 UPC/EAN supplement Supplement Decode with A049A1 supplement CYCLOPS-I BT Scanner Configuration Guide...
  • Page 56 Auto-Discr. A049A2 UPC/EAN Supplement Enable A049A3 Smart Supplement Mode Enable A049A4 378/379 Supplement Mode Enable A049A5 978/979 Supplement Mode Enable A049A6 414/419/434 /439 Supplement Mode Enable 977 A049A7 Supplement Mode Enable 491 A049A8 Supplement Mode UPC/EAN/ Separate A051A0 JAN AIM Code ID Format Combined...
  • Page 57 Separate A051A2 Transmi. UPC-A Disable A052A0 Check- Digit Transfer Enable A052A1 UPC-E Disable A053A0 Check- digit Transfer Enable A053A1 UPC-E1 Disable A054A0 Check- digit Transfer Enable A054A1 UPC-A None A055A0 Preamble System A055A1 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 58 Country A055A2 Code UPC-E None A056A0 Preamble System A056A1 Country A056A2 Code UPC-E1 None A057A0 Preamble System A057A1 Country A057A2 code UPC-E Disable A058A0 Convert to UPC-A Enable A058A1 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 59 UPC-E1 Disable A059A0 Convert to UPC-A Enable A059A1 EAN-8 Disable A060A0 Convert to EAN-13 Enable A060A1 UPC/EAN Level 0 A061A0 Security Level Level 1 A061A1 Level 2 A061A2 Level 3 A061A3 Disable A062A0 Coupon Extend Code CYCLOPS-I BT Scanner Configuration Guide...
  • Page 60 Enable A062A1 Coupon Old Coupon A063A0 Report Report A063A1 Coupon Report Both A063A2 Coupon ISSN EAN Disable A064A0 Enable A064A1 Code128 Disable A065A0 Enable A065A1 GS1-128 Disable A067A0 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 61 Enable A067A1 ISBT 128 Disable A068A0 Enable A068A1 ISBT Disable A069A0 Concaten. Enable A069A1 Auto A069A2 Check ISBT Disable A070A0 Table Enable A070A1 Code 39 Disable A071A0 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 62 Enable A071A1 Trioptic Disable A072A0 Code 39 Enable A072A1 Convert Disable A073A0 Code39 to Code32 Enable A073A1 Code32 Disable A074A0 Prefix Enable A074A1 Code39 Disable A076A0 Check-Digit Verification Enable A076A1 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 63 Transmit Disable A077A0 Code39 Check-Digit Enable A077A1 Code39 Full Disable A078A0 ASCII Enable A078A1 Code 93 Disable A079A0 Enable A079A1 Code 11 Disable A081A0 Enable A081A1 Code11 Disable A083A0 Check-Digit Verification CYCLOPS-I BT Scanner Configuration Guide...
  • Page 64 One Digital A083A1 Two Digital A083A2 Transmit Disable A084A0 Code11 Check-Digit Enable A084A1 Interleaved Disable A085A0 2 of 5 Enable A085A1 I 2 of 5 Disable A087A0 Check-Digit Verification USS check A087A1 digit OPCC A087A2 check digit CYCLOPS-I BT Scanner Configuration Guide...
  • Page 65 Transmit I 2 Disable A088A0 of 5 Check- Digit Enable A088A1 Convert I 2 Disable A089A0 of 5 to EAN-13 Enable A089A1 Discrete 2 Disable A090A0 of 5 Enable A090A1 Chinese 2 of Disable A092A0 Enable A092A1 Matrix 2 of Disable A093A0 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 66 Enable A093A1 Matrix 2 of Disable A095A0 Redundancy Enable A095A1 Matrix Disable A096A0 Check-Digit Verification Enable A096A1 Transmit Disable A097A0 Matrix Check-Digit Enable A097A1 Codabar Disable A099A0 (NW7) Enable A099A1 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 67 CLSI Disable A101A0 Editing Enable A101A1 NOTIS Disable A102A0 Editing Enable A102A1 Disable A103A0 Enable A103A1 MSI Check- Disable A105A0 Digit Enable A105A1 Transmit Disable A106A0 MSI Check- Digit CYCLOPS-I BT Scanner Configuration Guide...
  • Page 68 Enable A106A1 MSI Check- Disable A107A0 Digit Algorithm Enable A107A1 GS1-DataB Disable A108A0 Enable A108A1 Disable A109A0 DataBar Limited Enable A109A1 Disable A110A0 DataBar Expanded Enable A110A1 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 69 Convert Disable A111A0 DataBar to UPC/EAN Enable A111A1 9.2.6. Barcodes for Alpha-Numeric Entries This table is for Alpha-Numeric character entries. Function Setting Barcode Code ID Stop Input Cancel CYCLOPS-I BT Scanner Configuration Guide...
  • Page 70 Function Setting Barcode Code ID Setting Barcode Code ID Numeric （ Include Hex） Function Setting Barcode Code ID Setting Barcode Code ID CYCLOPS-I BT Scanner Configuration Guide...
  • Page 71 Alphabetic Letter CYCLOPS-I BT Scanner Configuration Guide...
  • Page 72 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 73 CYCLOPS-I BT Scanner Configuration Guide...
  • Page 74 10. Appendix 1 How to make the setting Code Code type of the configuration and setting barcodes for CYCLOPS-I is Code128 You can make the setting barcodes of BT Driver Address and BT Device Name by yourself. Example: How to make the setting barcode of Bluetooth Driver Address Start Code Setting ID Address ( Alpha-Numeric )
  • Page 75 11. Appendix 2 About Key Code Function key is pressed during Real-Time Mode under HID connection. Function Key code Setting will set up the key code when press FUNCTION key on the Real-Time Mode under HID connection. Kye codes for host device ( Android , iPhone, iPad ) are listed as in the following table. Key Code(Hex) Normal +Shift...
