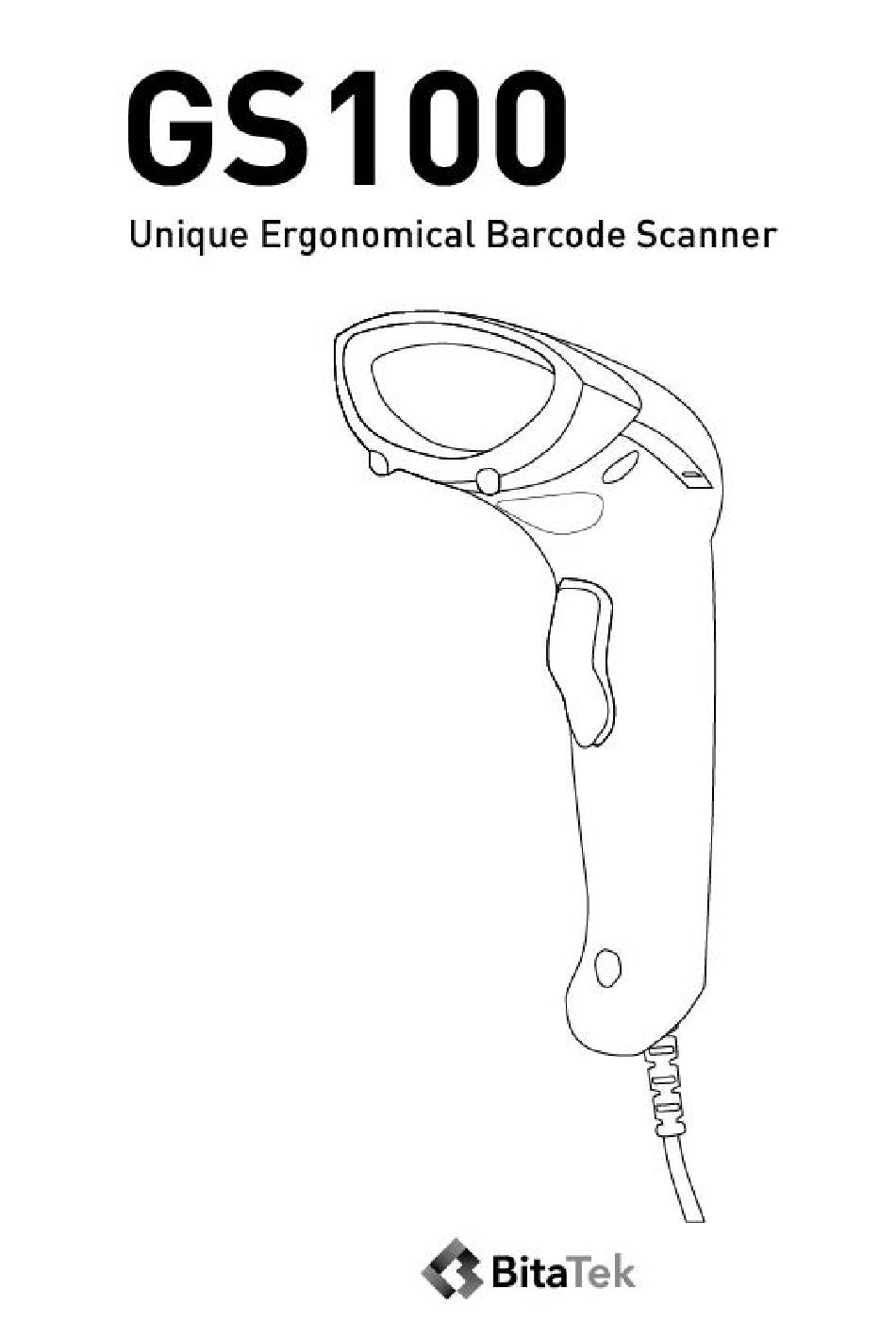

BitaTek GS100 Setup Manual

Unique ergonomical barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BitaTek GS100

Summary of Contents for BitaTek GS100

  • Page 2: Table Of Contents

    BarCode Decode Setup Manual Table of Contents Setup Flow Chart ..........................7 Part I System Information ......................... 8 Reset to default: ........................8 Display Firmware Version: ....................... 8 Part II System Setting ........................9 2.1 Interface: ..........................9 Part III Keyboard wedge parameters ....................9 3.1 Terminal Type: ........................
  • Page 3 Part VI Barcode Type Setting: ......................21 6.1 UPC-A ..........................22 6.1.1 Enable/Disable UPC-A: ..................22 6.1.2 Code ID setting: ..................... 22 6.1.3 Convert UPC-A to EAN-13: .................. 22 6.1.4 Transmit Check Digit: .................... 22 6.1.5 Truncate Leading Zero: ..................22 6.1.6 Truncate Leading Digits: ..................
  • Page 4 6.5.6 Transmit Start/End Character: ................29 6.5.7 Min Code Length: (defult:00) ................29 6.5.8 Max Code Length: (default:32H) ................29 6.5.9 Truncate Leading Digits: ..................29 6.5.10 Truncate ending digits: ..................29 6.5.11 Insert Characters: ....................29 6.6 Codabar ..........................30 6.6.1 Enable/Disable CODABAR ...................
  • Page 5 6.9.2 Code ID Setting: ..................... 35 6.9.3 Check Digit: ......................36 6.9.4 Transmit Check Digit: .................... 36 6.9.5 Min Code Length: (default:00) ................36 6.9.6 Max Code Length: (default:32H) ................36 6.9.7 Truncate Leading Digits: ..................36 6.9.8 Truncate Ending Digits: ..................36 6.9.9 Insert Characters: ....................
  • Page 6 6.13.6 Max Code Length: (default:32H) ................. 42 6.13.7 Truncate Leading Digits: ..................42 6.13.8 Truncate Ending Digits: ..................42 6.13.9 Insert Characters: ....................42 6.14 CODE 32 ......................... 42 6.14.1 Enable/Disable CODE 32: ................... 42 6.14.2 Code ID Setting: ....................43 6.14.3 Check Digit: ......................

  • Page 7: Setup Flow Chart

    Setup Flow Chart Scan “Start Configuration” barcode “Start Configuration” Scan the barcode you Reset to default like to change to change Hex or ASCII Code Scan two HEX digits in Appendix A to represent one ASCII code. Scan “End” barcode Scan “End Configuration”...

  • Page 8: Part I System Information

    Part I System Information Reset to default: Reset to factory default settings. The default settings are shown with < > and bold. Display Firmware Version: Scan barcode to display firmware version. Start Configuration Reset to default Firmware Version End Configuration...

  • Page 9: Part Ii System Setting

    Part II System Setting 2.1 Interface: Start Configuration < USB Keyboard > < USB Virtual COM > End Configuration Part III Keyboard wedge parameters 3.1 Terminal Type: Start Configuration < IBM AT > Reserved Reserved Reserved Reserved Reserved...

  • Page 10: Language Selection

    Reserved Reserved End Configuration 3.2 Language Selection: Start Configuration American Italian Spanish France Germany Japanese Reserved Reserved End Configuration...

  • Page 11: Function Key Emulation

    Note: Scan the barcode to select local keyboard language, if your keyboard language can't be found, please turn on ALT Mode which is an alternate way to find your language. 3.3 Function Key Emulation: Start Configuration < Disable > Enable 3.4 Keyboard Emulation: <...

  • Page 12: Alt Mode

    3.5 ALT Mode: Start Configuration < Disable > Enable 3.6 Caps Lock : < Disable > Enable 3.7 Numeric Key: < Disable > Enable End Configuration Note 1: ALT Mode can emulate most of local keyboard languages in Microsoft system. Note 2: The barcode reader can emulate to enable/disable Caps Lock key.

  • Page 13: Delay After Transmit (Keyboard Wedge)

    Enable (00H, 00-64H*1msec) 3.9 Delay After Transmit (Keyboard Wedge): Enable (00H, 00-0AH*100msec) 3.10 Keyboard Speed: Enable (00H, 00-08H) 3.11 Keyboard Wedge Terminator: None < CR > End Configuration Note: Keyboard Wedge Terminator is to set up the termination character of barcode reader output to adapt to applications.

  • Page 14: Data Bits

    2400bps 4800bps < 9600bps > 19200bps 38400bps 4.2 Data Bits: 7 Digits < 8 Digits > 4.3 Stop Bits: < 1 Digit > 2 Digits 4.4 Parity Check: < None > Even Mark...

  • Page 15: Inter-Character Delay

    Space 4.5 Inter-Character Delay: Enable (00H, 00-64H*1msec) 4.6 Delay After Transmit: Enable (00H, 00-0AH*100msec) 4.7 Response Delay Time: Enable (00H, 00-0AH*100msec) End Configuration Note: Response Delay Time is the time of barcode reader waiting for host to response. The delay time=setting data*100(ms).

  • Page 16: Part V System Setting

    < CR+LF > STX/ETX End Configuration Note: RS232- Interface Terminator is to set up the termination character of barcode reader output to adapt to applications. Part V System Setting 5.1 Scan Mode: Start Configuration Trigger Mode < Auto Off Mode > Continuous/Trigger Off Mode...
  • Page 17 Test Mode Continuous Mode Continuous/Timeout Off Mode Flash Mode Continuous/No Trigger End Configuration Note: Trigger Mode: Press trigger to turn on scanner. To turn off the scanner, just release trigger or after barcode decoded. Auto off Mode: Press trigger to turn on scanner. Scanner will be automatically off when time out or after barcode decoded.

  • Page 18: Buzzer

    5.2 Buzzer 5.2.1 Buzzer Frequency: Start Configuration < High > Medium 5.2.2 Duration < Long > Medium Short 5.2.3 Power up Buzzer: Disable < Enable > 5.2.4 Good Read Buzzer: Disable < Enable > End Configuration...

  • Page 19: String

    5.3 String 5.3.1 Prefix and Suffix: Start Configuration Set up prefix (00H) Set up suffix (00H) End Configuration Note: The maximum characters can be set as prefix and suffix are 10 ASCII characters, if the setting is 0 means there is no prefix or suffix. Formats of prefix and suffix are as follows: Prefix string Barcode data...

  • Page 20: Code Type Transmit

    End Configuration Note: Up to 10 ASCII codes can be inserted in a group. When the setting is zero, no codes will be inserted. Steps to insert characters： Scan “Start Configuration” and then Scan “G1” barcode for the Barcode you want to use. Scan ASCII code barcode in appendix B.

  • Page 21: Barcode Inverse

    5.4 Barcode Inverse： If background is back, choose Bar = White. If background is white, choose Bar = Black. Start Configuration < Bar = Black> Bar = White End Configuration Part VI Barcode Type Setting: Enable/Disable barcode：To enable/disable different barcode symbologies decoding, scan the Enable/Disable barcode.

  • Page 22: Upc-A

    Supplements: Supplemental are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN 13+2). Trim Leading 0: Trim the leading 0 of Barcode. 6.1 UPC-A 6.1.1 Enable/Disable UPC-A: Start Configuration Disable < Enable> 6.1.2 Code ID setting: Set up Code ID (46H, 20-7EH) 6.1.3 Convert UPC-A to EAN-13: <...

  • Page 23: Truncate Leading Digits

    6.1.6 Truncate Leading Digits: Set up leading digits(00H, 00-0DH) 6.1.7 Truncate Ending Digits: Set up ending digits(00H, 00-0DH) 6.1.8 Insert Characters: None 6.1.9 Decode UPC-A Supplemental: < None > 2 digits 5 digits 2 or 5 digits End Configuration 6.2 UPC-E 6.2.1 Enable/Disable UPC-E: Start Configuration...

  • Page 24: Code Id Setting

    Disable < Enable > 6.2.2 Code ID setting Code ID setting (47H, 20-7EH) 6.2.3 Convert UPC-E to UPC-A: < Disable > Enable 6.2.4 Transmit Check Digit: Disable < Enable> 6.2.5Truncate Leading Zero: < Disable > Enable 6.2.6 Truncate leading digits: Set up leading digits(00H, 00-0DH) 6.2.7 Truncate Ending Digits: Set up ending digits(00H, 00-0DH)

  • Page 25: Decode Upc-E Supplementals

    6.2.9 Decode UPC-E Supplementals: < None > 2 digits 5 digits 2 or 5 digits End Configuration 6.3 EAN-13 6.3.1 Enable/Disable EAN-13: Start Configuration Disable < Enable > 6.3.2 Code ID Setting: Set up Code ID(48H, 20-7EH) 6.3.3 Transmit Check Digit: Disable...

  • Page 26: Convert To Isbn/Issn

    < Enable > 6.3.4 Convert to ISBN/ISSN: < Disable > Enable 6.3.5 Truncate leading digits: Set up leading digits (00H, 00-0DH) 6.3.6 Truncate Ending digits: Set up ending digits(00H, 00-0DH) 6.3.7 Insert Characters: None 6.3.8 Decode EAN-13 Supplemental: < None > 2 digits 5 digits 2 or 5 digits...

  • Page 27: Ean-8

    6.4 EAN-8 6.4.1 Enable/Disable EAN-8: Start Configuration Disable < Enable > 6.4.2 Code ID Setting: Set up Code ID(49H, 20-7EH) 6.4.3 Transmit Check Digit: Disable < Enable > 6.4.4 Truncate Leading Digits: Set up leading digits(00H, 00-0DH) 6.4.5 Truncate Ending Digits: Set up ending digits(00H, 00-0DH) 6.4.6 Insert Characters: None...

  • Page 28: Decode Ean-8 Supplemental

    6.4.7 Decode EAN-8 Supplemental: < None > 2 digits 5 digits 2 or 5 digits End Configuration 6.5 Code39 6.5.1 Enable/Disable CODE39: Start Configuration Disable < Enable > 6.5.2 Code ID Setting Set up Code ID(4AH, 20-7EH) 6.5.3 Code 39 Check Digit Verification: <...

  • Page 29: Transmit Check Digit

    6.5.4 Transmit Check Digit: Disable < Enable > 6.5.5 Code 39 Full ASCII Conversion: < Disable > Enable 6.5.6 Transmit Start/End Character: < Disable > Enable 6.5.7 Min Code Length: (defult:00) Set up min code length(00H, 00-32H) 6.5.8 Max Code Length: (default:32H) Set up max code length(00H, 00-32H) 6.5.9 Truncate Leading Digits: Set up leading digits(00H, 00-32H)

  • Page 30: Codabar

    End Configuration 6.6 Codabar 6.6.1 Enable/Disable CODABAR Start Configuration Disable < Enable > 6.6.2 Code ID setting Set up Code ID(4BH, 20-7EH) 6.6.3 Check Digit: < Disable > Enable 6.6.4 Transmit Check Digit: Disable < Enable >...

  • Page 31: Data Combine

    6.6.5 Data Combine: < Disable > Enable 6.6.6 Start/End Transmit Type: < ABCD/ABCD > abcd/abcd abcd/tn*e 6.6.7 Start/End Transmit: < Disable > Enable 6.6.8 Min Code Length: (default:00) Set up Min Code Length(00H, 00-3CH) 6.6.9 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-3CH) 6.6.10 Truncate Leading Digits: Set up Leading Digits(00H, 00-3CH) 6.6.11 Truncate Ending Digits:...

  • Page 32: Code93

    End Configuration 6.7 Code93 6.7.1 Enable/Disable CODE93: Start Configuration Disable < Enable > 6.7.2 Code ID Setting: Set up Code ID(4CH, 20-7EH) 6.7.3 Check Digit: Disable < Enable > 6.7.4 Transmit Check Digit: < Disable > Enable...

  • Page 33: Min Code Length: (Default:00)

    6.7.5 Min Code Length: (default:00) Set up min code length(00H, 00-50H) 6.7.6 Max Code Length: (default:32H) Set up max code length(00H, 00-50H) 6.7.7 Truncate Leading Digits: Set up leading digits(00H, 00-50H) 6.7.8 Truncate Ending Digits: Set up ending digits(00H, 00-50H) 6.7.9 Insert Characters: None End Configuration...

  • Page 34: Code Id Setting

    6.8.2 Code ID Setting: Set up Code ID(4DH, 20-7EH) 6.8.3 Check Digit: Disable < Enable > 6.8.4 Transmit Check Digit < Disable > Enable 6.8.5 FNC2 Data Combine: < Disable > Enable 6.8.6 UCC/EAN128: < Disable > Enable 6.8.7 FNC1 Transmit: <...

  • Page 35: Max Code Length: (Default:32H)

    6.8.9 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-7FH) 6.8.10 Truncate Leading Digits: Set up Leading Digits(00H, 00-7FH) 6.8.11 Truncate Ending Digits: Set up Ending Digits(00H, 00-7FH) 6.8.12 Insert Characters: < None > End Configuration 6.9 Interleaved 2 of 5 6.9.1 Enable/Disable Interleaved 2 of 5: Start Configuration Disable...
  • Page 36 6.9.3 Check Digit: < Disable > Enable 6.9.4 Transmit Check Digit: Disable < Enable > 6.9.5 Min Code Length: (default:00) Set up Min Code Length(00H, 00-50H) 6.9.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H) 6.9.7 Truncate Leading Digits: Set up Leading Digits(00H, 00-50H) 6.9.8 Truncate Ending Digits: Set up ending digits(00H, 00-50H)

  • Page 37: Truncate Leading Digits

    6.10 Industrial 2 of 5 6.10.1 Enable/Disable Industrial 2 of 5: Start Configuration < Disable > Enable 6.10.2 Code ID Setting: Set up Code ID(4FH, 20-7EH) 6.10.3 Check Digit: < Disable > Enable 6.10.4 Transmit Check Digit: Disable < Enable > 6.10.5 Min Code Length: (default: 00) Set up Min code length(00H, 00-32H) 6.10.6 Max Code Length: (default:32H)
  • Page 38 6.10.8 Truncate ending digits: Set up Ending digits(00H, 00-32H) 6.10.9 Insert Characters: < None > End Configuration 6.11 Matrix 2 of 5 6.11.1 Enable/Disable Matrix 2 of 5: Start Configuration < Disable > Enable 6.11.2 Code ID Setting: Set up Code ID(50H, 20-7EH) 6.11.3 Check Digit: <...

  • Page 39: Truncate Leading Digits

    6.11.4 Transmit Check Digit: Disable < Enable > 6.11.5 Min Code Length: (default: 00) Set up Min Code Length(00H, 00-50H) 6.11.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H) 6.11.7 Truncate Leading Digits: Set up Leading Digits(00H, 00-50H) 6.11.8 Truncate Ending Digits: Set up Ending Digits(00H, 00-50H) 6.11.9 Insert Characters:...

  • Page 40: Truncate Leading Digits

    < Disable > Enable 6.12.2 Code ID Setting: Set up Code ID(51H, 20-7EH) 6.12.3 Check Digit: < Disable > Enable 6.12.4 Transmit Check Digit: Disable < Enable > 6.12.5 Min Code Length: (default:00) Set up min code length(00H, 00-50H) 6.12.6 Max Code Length: (default:32H) Set up max code length(00H, 00-50H) 6.12.7 Truncate Leading Digits: Set up leading digits(00H, 00-50H)
  • Page 41 End Configuration 6.13 MSI/Plessey 6.13.1 Enable/Disable MSI/Plessey: Start Configuration < Disable > Enable 6.13.2 Code ID Setting: Set up Code ID(52H, 20-7EH) 6.13.3 Check Digit: < Disable > MOD 10 MOD 10/10 MOD 11/10...

  • Page 42: Truncate Leading Digits

    6.13.4 Transmit Check Digit: Disable < Enable > 6.13.5 Min Code Length: (default:00) Set up Min Code Length(00H, 00-3CH) 6.13.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-3CH) 6.13.7 Truncate Leading Digits: Set up Leading Digits(00H, 00-3CH) 6.13.8 Truncate Ending Digits: Set up Ending Digits(00H, 00-3CH) 6.13.9 Insert Characters: <...

  • Page 43: Truncate Leading Digits

    < Disable > Enable 6.14.2 Code ID Setting: Set up Code ID(53H, 20-7EH) 6.14.3 Check Digit: Disable < Enable > 6.14.4 Transmit Check Digit: Disable < Enable > 6.14.5 Truncate Leading Digits: Set up leading digits(00H, 00-0AH) 6.14.6 Truncate Ending Digits: Set up ending digits(00H, 00-0AH) 6.14.7 Insert Characters: <...

  • Page 44: Min Code Length: (Default:00)

    End Configuration 6.15 CODE 11 6.15.1 Enable/Disable CODE 11: Start Configuration < Disable > Enable 6.15.2 Code ID Setting: Set up Code ID(54H, 20-7EH) 6.15.3 Check Digit Disable < Enable > 6.15.4 Transmit Check Digit < Disable > Enable 6.15.5 Min Code Length: (default:00) Set up Min Code Length(00H, 00-50H) 6.15.6 Max Code Length: (default:32H) Set up Max Code Length(00H, 00-50H)

  • Page 45: Truncate Leading Digits

    6.15.7 Truncate Leading Digits Set up Leading Digits(00H, 00-50H) 6.15.8 Truncate Ending Digits Set up Ending Digits(00H, 00-50H) 6.15.9 Insert Characters None End Configuration 6.16 RSS 6.16.1 Enable/Disable RSS-14 (GS1-Databar) Start Configuration < Disable > Enable 6.16.2 Enable/Disable RSS-14 (GS1-Databar) Limited <...

  • Page 46: Enable/Disable Rss-14 (Gs1-Databar) Expanded

    6.16.3 Enable/Disable RSS-14 (GS1-Databar) Expanded < Disable > Enable 6.16.4 RSS-14 (GS1-Databar) to UPC/EAN < Disable > Enable End Configuration 6.17 Telepen 6.17.1 Enable/Disable Telepen: Start Configuration < Disable > Enable 6.17.2 Code ID Setting Set up Code ID(56H, 20-7EH) 6.17.3 Check Digit: Disable <...

  • Page 47: Transmit Check Digit

    6.17.4 Transmit Check Digit: Disable < Enable > 6.17.5 Min Code Length: (default: 00) Set up Min Code Length(00H, 00-32H) 6.17.6 Max Code Length: (default:32H): Set up Max Code Length(00H, 00-32H) 6.17.7 Truncate Leading Digits Set up Leading Digits(00H, 00-0DH) 6.17.8 Truncate Ending Digits Set up ending digits(00H, 00-0DH) 6.17.9 Insert Characters...

  • Page 48: Appendix A

    Appendix A ASCII Code...
  • Page 49 End of Setting End Configuration ASCII Table: “ NAK % ACK SYN & ‘ SUM * <...

  • Page 50: Appendix B

    > Appendix B Function Key Emulate Table: NULL DOWN LEFT RIGHT PAGE UP PAGE DOWN HOME...
  • Page 51 ENTER INSERT DELETE Function Key Emulate Barcode: Before Scan the barcode below, please Enable Full ASCII Code39. F1($Q) UP($A) F2($R) DOWN($B) F3($S) LEFT($C) F4($T) RIGHT($D) F5($U) PAGE UP($E) F6($V) PAGE DOWN($F) F7($W) F8($X) BS($H) F9($Y) TAB($I)

  • Page 52: Appendix C - Default Setting Table

    F10($Z) ESC(%A) HOME($K) F11(%B) END($L) F12(%C) ENTER($M) F13(%D) INSERT($N) F14(%E) DELETE($O) Appendix C – Default Setting Table Code Type Read Enable Transmit check digit Code ID UPC-A UPC-E EAN-13 EAN-8 Code39 Codabar Code93 Code128 Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5...
  • Page 53 MSI/Plessey Code 32 Code 11 RSS 14 RSS 14 Limited RSS 14 Expanded Telepen China Post Code...
