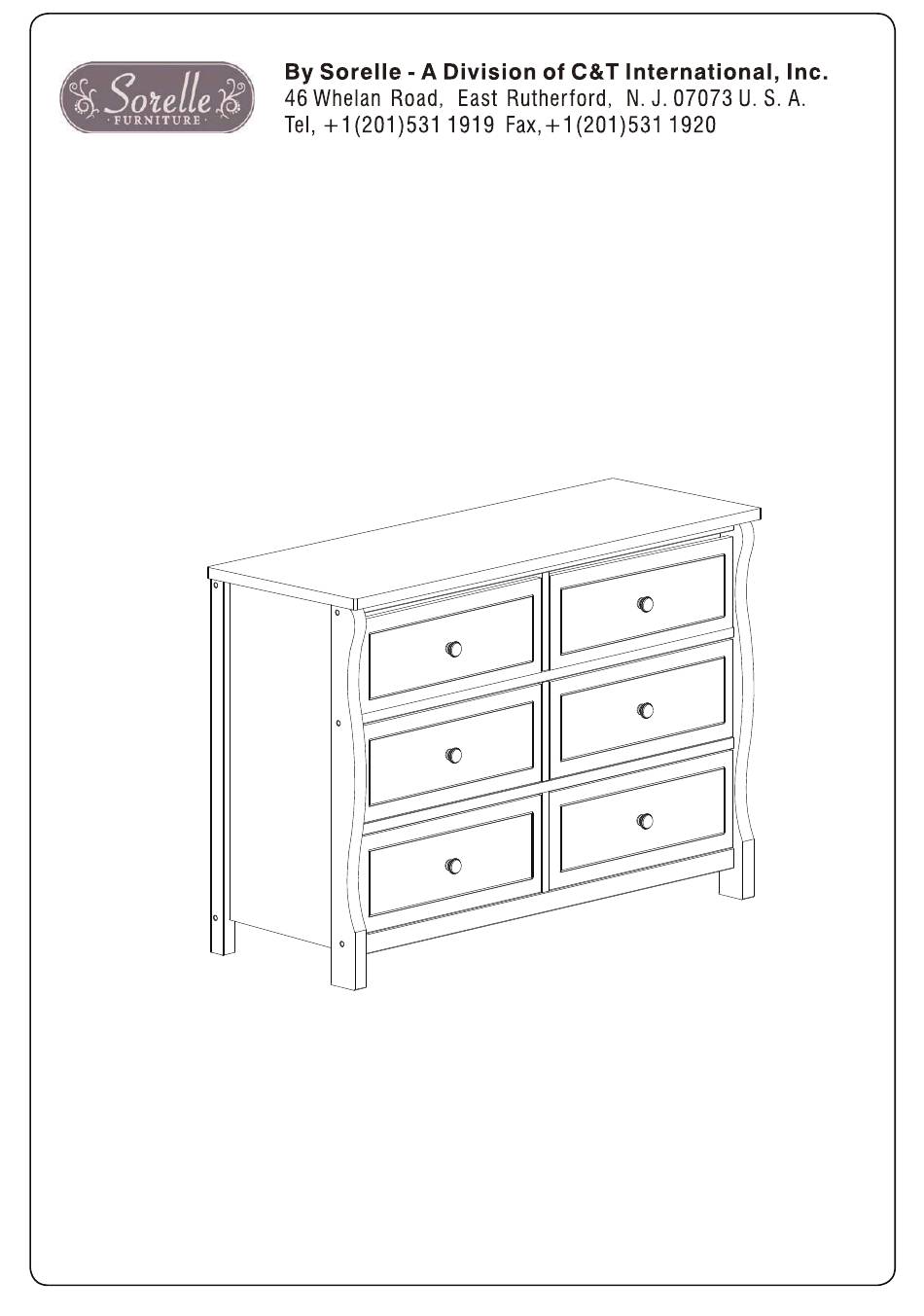

- Page 1 Website: www.sorellefurniture.com Princeton Elite Double Dresser Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in AY, Vietnam...
-
Page 2: Assembly Parts
SORELLE Assembly Parts (A) Left Side Panel (x1) (D) Front - Top Rail(x1) (B) Middle Panel (x1) (C) Right End (x1) (E2) Front- Middle lower Rail (x1) (E1) Front- Middle Upper Rail (x1) (F) Front- Bottom Rail (x1) ( G ) Rear - Top Rail (x1) -
Page 3: Hardware List
SORELLE Assembly Parts Hardware list (a) M6 x 45mm Allen bolt (10 pcs) (c). ( 6 pcs) Metal Connector B (d) M6 x 28mm Allen bolt (7 pcs) (b) M6 x 35mm Allen bolt (5 pcs) (f ) 8 x 30 mm Wood Dowels (29 pcs) - Page 4 SORELLE Double Dresser Assembly Assembly the support rail (I) and support legs (L) . Assembly the support rail (I) and front-bottom rail (F) and rear-bottom rail (H) , by using 4 wood dowels and 1 Bolt (d)&1Bolt(b). as Figure 1.
- Page 5 SORELLE Double Dresser Assembly Attach Front Top rail (D) & Front Middle Upper rail (E1) & Front Middle lower rail (E2) & Rear Top rail (G) to Middle Panel (B) , By using 4 wood dowels (f) as Figure 3.
- Page 6 SORELLE Double Dresser Assembly Attach Top Panel (J) to Send panel by using 5 wood dowels ( f ) and 4 Bolts( b) and 6 Bolts (d) . as Figure 3. f x 5 d x 6 bx 4 Figure 5...
-
Page 7: Drawer Assembly
SORELLE Drawer Assembly 1. Working on a padded fl at surface, attach Drawer (R1) Sides (R1&R2) to Drawer Back (R3) with Philips Head (R3) Screw. Figure 1 (R2) 2. Slide Drawer (R4) (R5) Bottom (R4) into drawer assembly. Figure 2. - Page 8 SORELLE Double Dresser Assembly Assembly the drawers as Figure 6. Figure 6 Use 26 pcs Wood Screws (o) to attach the Back Panel (K) to the dresser As Figure 7. Figure 7 Page 8...
