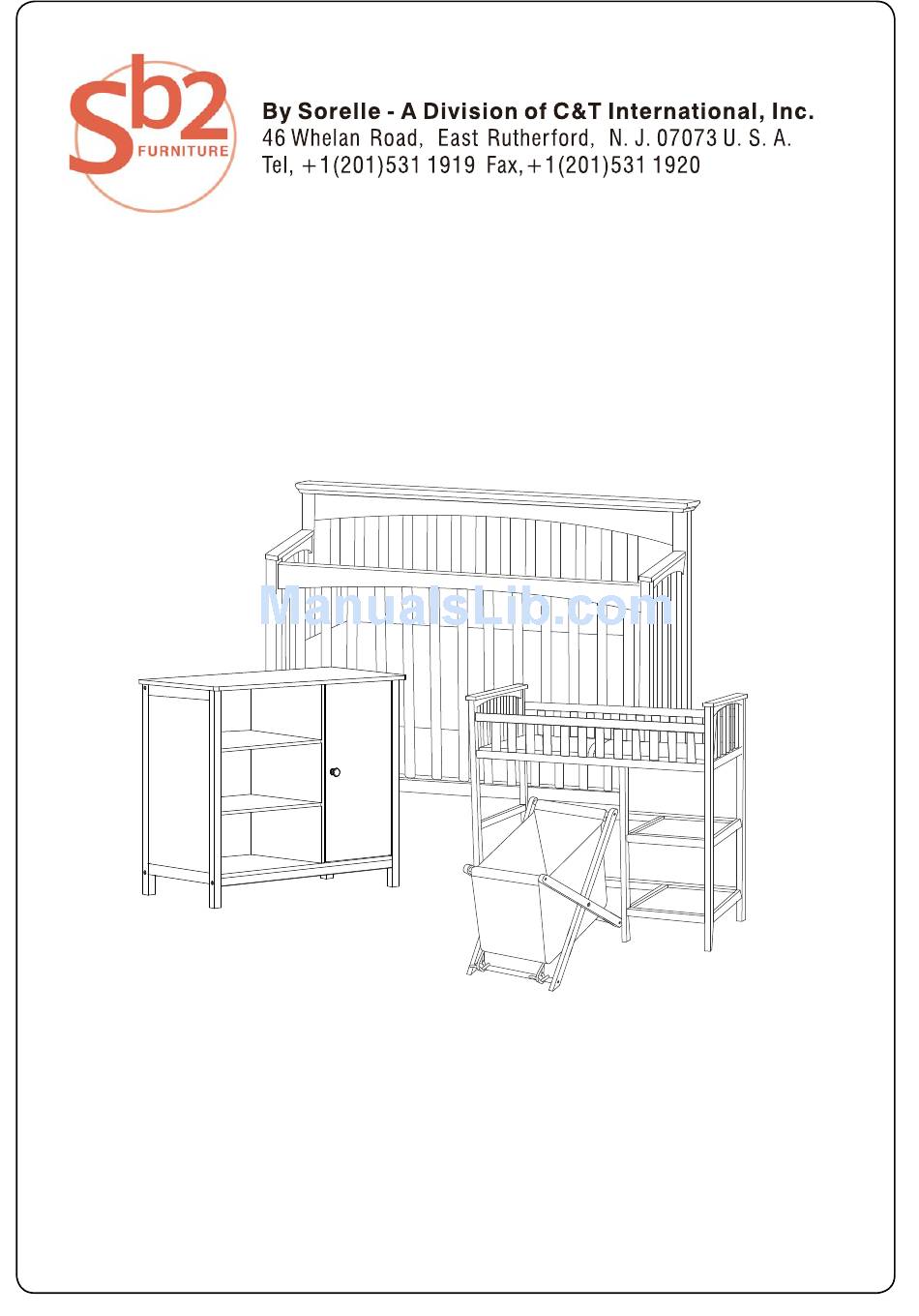

- Page 1 Website: www.sorellefurniture.com Petite Paradise Elite (Room in a Box) Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in HY, China...
- Page 2 Sorelle Crib Warnings WARNING: *Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. *Failure to follow these warnings and the assembly instructions could result in serious injury or death. DO NOT use this crib if you cannot exactly follow the accompanying instructions.
- Page 3 Sorelle Toddler Bed Warnings WARNING INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between bed parts can entrap head and neck of a small child. NEVER use bed with children younger than 15 months. ALWAYS follow assembly instructions.
-
Page 4: Notes On Assembly
Sorelle NOTES ON ASSEMBLY: -During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on the diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape specified in the instructions. - Page 5 SORELLE (DRF)Right Front Corner Post (1 pc) (ERB)Right Back Corner Post (1 pc) (DLF)Left Front Corner Post (1 pc) (ELB)Left Back Corner Post (1 pc) 55mm Allen Bolts (8 pcs) (c)17mm Allen Bolts (4 pcs) e l l s t l Connect Sideframes to Corner Posts by using Allen Key (e) and Allen Bolts (b)as figure shows.
- Page 6 SORELLE Connect Sideframes to Back frame (B) by Allen Bolts (a). Make sure plug in wooden dowels first. Install the Metal Support (F) to the crib by using 4 pcs Allen Bolts (c). This crib has a high position setup for use during your baby's first months.
- Page 7 SORELLE (DRF)Right Front Corner Post (1 pc) (DLF)Left Front Corner Post (1 pc) (ERB)Right Back Corner Post (1 pc) (ELB)Left Back Corner Post (1 pc) 55mm Allen Bolts (8 pcs) (c)17mm Allen Bolts (4 pcs) e l l s t l Move out the Front Frame (A) by loosing Allen Bolts (a).
- Page 8 SORELLE (DRF)Right Front Corner Post (1 pc) (DLF)Left Front Corner Post (1 pc) (ERB)Right Back Corner Post (1 pc) (ELB)Left Back Corner Post (1 pc) 55mm Allen Bolts (8 pcs) (c)17mm Allen Bolts (4 pcs) e l l s t l NOTE:DAYBED IS NOT FOR ADULTS.
- Page 9 SORELLE (DRF)Right Front Corner Post (1 pc) (DLF)Left Front Corner Post (1 pc) (ERB)Right Back Corner Post (1 pc) (I)Top Cap (2 pcs) (ELB)Left Back Corner Post (1 pc) (f)20mm Allen Bolts (8 pcs) 55mm Allen Bolts (8 pcs) (c)17mm Allen Bolts (4 pcs)
- Page 10 SORELLE Install the Top Cap (I) on the Front Corner Post. g x 8 f x 8 Plug in the Allen Bolts( f ) and Cap (g) as figure shows. NOTE:Your Fullsize Bedframe is sold separatly.Contact with CNT International INC for specific assembly sheet to assemble your Fullsize Bed.
- Page 11 SORELLE (V)Long Dowels (U)Short Dowels ( 2 pcs) ( 2 pcs) (a) 42mm Allen Bolts (1 pc) (b) 32mm Allen Bolts (20 pcs) (f)30mm screw (8 pcs) (c)20mm Allen Bolts (2 pcs) Page 11...
- Page 12 SORELLE Page 12...
- Page 13 SORELLE Page 13...
- Page 14 SORELLE Page 14...
- Page 15 SORELLE (DC)Dresser Top Support Bar (1 pc) (DK)Bottom Support Bar (2 pcs) (DD)Top Panel (1 pc) (DA)Left End Frame (1 pc) (DB)Right End Frame (1 pc) (DE)Back Panel (1 pc) (DF)Bottom Panel (1 pc) (DG) Middle Panel(1 pc) (DH)Door (1 pc)
- Page 16 SORELLE Clothing Organizer assembly n x 4 e x 4 e x 2 m x 2 d x 3 d x 3 Page 16...
- Page 17 SORELLE d x 3 e x 2 m x 2 d x 3 g x 20 Wall Strap assembly instruction please check the Wall Strap Bag. Page 17...
- Page 18 SORELLE j x 4 a x 2 a x 2 j x 4 k x 4 Page 18...
