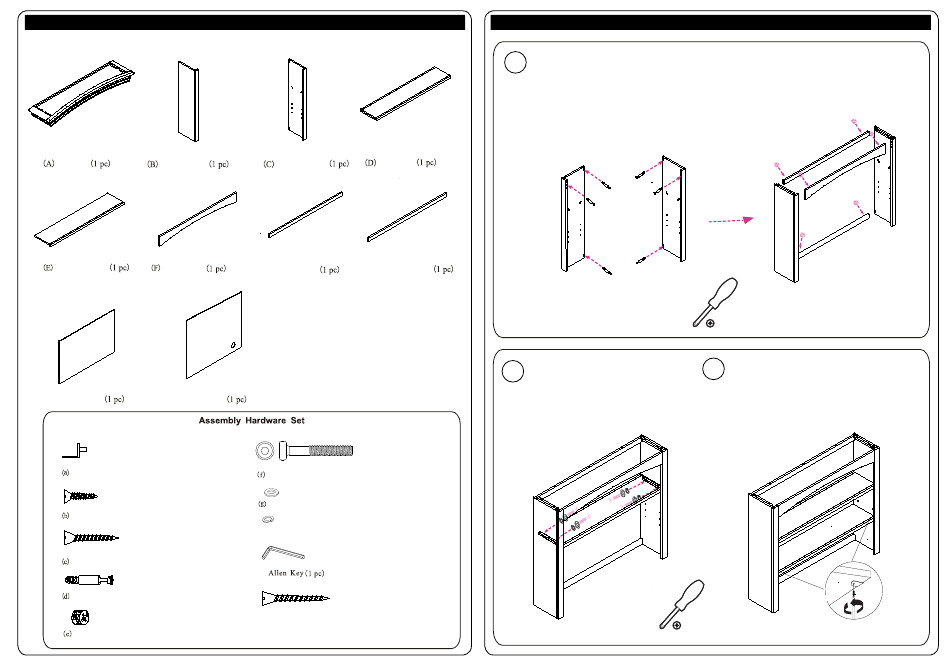

Verona Hutch Assembly Parts
Top panel
Left side panel
Adjustable Shelf
Front Up rail
(I) Up-Back panel
(J) Bottom-Back panel
Ø6.3MM Shelf Support (4 pcs)
Ø3.5 X 15mm Phillips Screw (4 pcs)
Ø3.5 X 20mm Phillips Screw (48 pcs)
M6*35mm Connecting Rod Bolt (6 pcs)
Ø14*13 Right-handed Nut (6 pcs)
Page 2
Fixed Shelf
Right side panel
(H) Back bottom rail
(G) Back Up rail
M6 x 25mm Allen Head Bolt ( 8 pcs)
Washer (8 pcs)
(h) Spring Washer ( 8 pcs)
(i)
( j ) Ø4 X 25mm Phillips Screw (10 pcs)
Verona Hutch Assembly
1
Connecting Rails Assembly
Insert 3 pcs connecting Rod Bolt(d) to Left Side Panel(B) &Right Side Panel(C). See Figure 1.
Then using 6 pcs Right-handed Nut (e) attach the Front Up Rail (F) & the Back Up Rail (G) &
Back Bottom Rail (H) to Side Panels(B&C). See Figure 1a.
d
d
d
d
C
B
d
d
Figure 1.
2
Fixed Shelf Assembly
Attach Fixed Shelf(D) by using Four (4)
Allen head Bolt(f)&Four (4) Washer (g)
& Four(4) Spring Washer (h).
See Figure 2.
h
g
D
f
f
g
C
h
B
Figure 2.
e
e
G
e
F
e
e
e
H
B
Figure 1a.
Tool required
3
Adjustable Shelf Assembly
Attach Adjustable Shelf (E) by using Four
(4)Shelf Support(a) and Four(4) Phillips Screw
(b).See Figure 3.
E
a
E
b
4x
Tool required
Figure 3.
Page 3
C
