2. Model overview

2.1. At a Glance

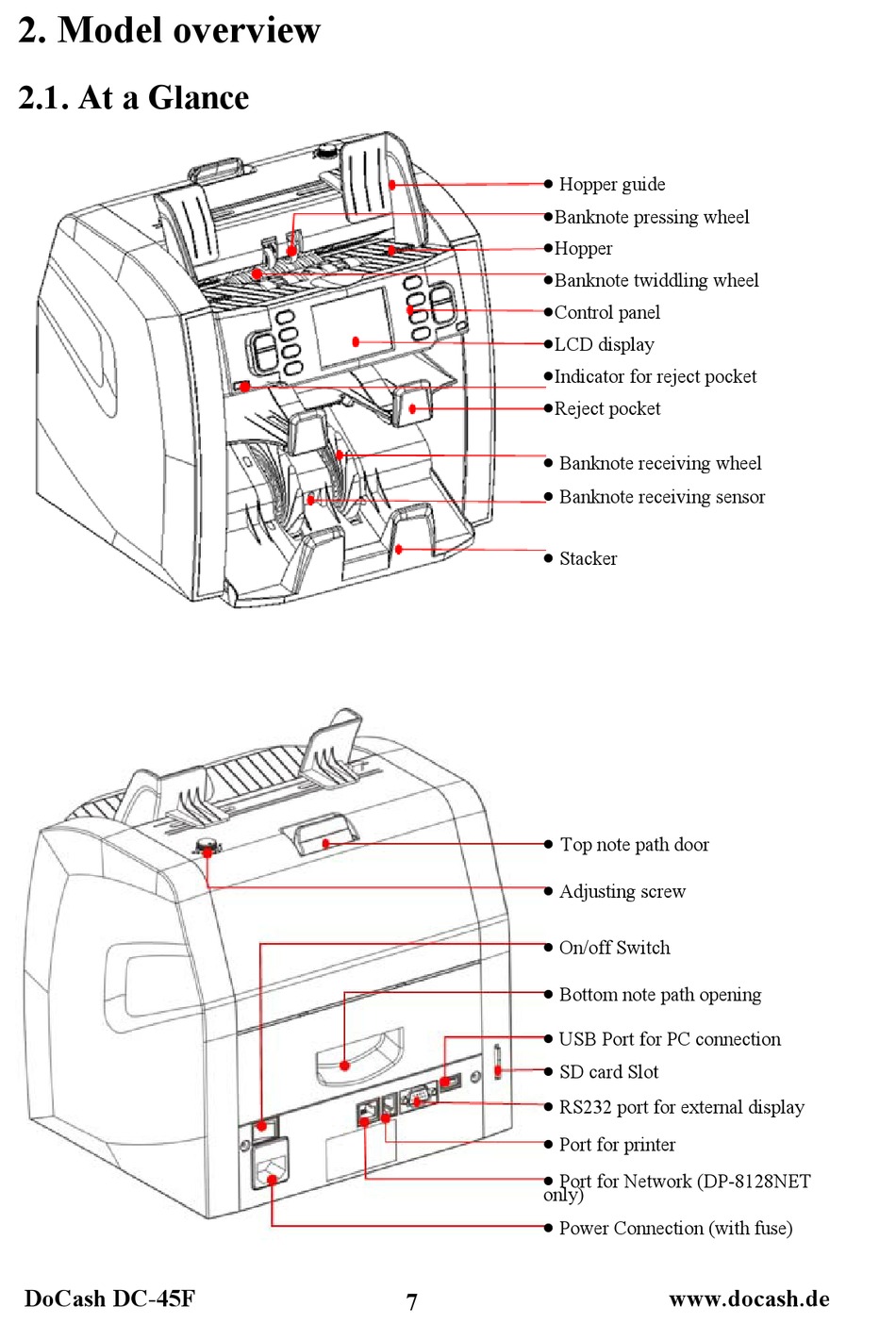

DoCash DC-45F

Hopper guide

Banknote pressing wheel

Hopper

Banknote twiddling wheel

Control panel

LCD display

Indicator for reject pocket

Reject pocket

Banknote receiving wheel

Banknote receiving sensor

Stacker

Top note path door

Adjusting screw

On/off Switch

Bottom note path opening

USB Port for PC connection

SD card Slot

RS232 port for external display

Port for printer

Port for Network (DP-8128NET
only)

Power Connection (with fuse)
