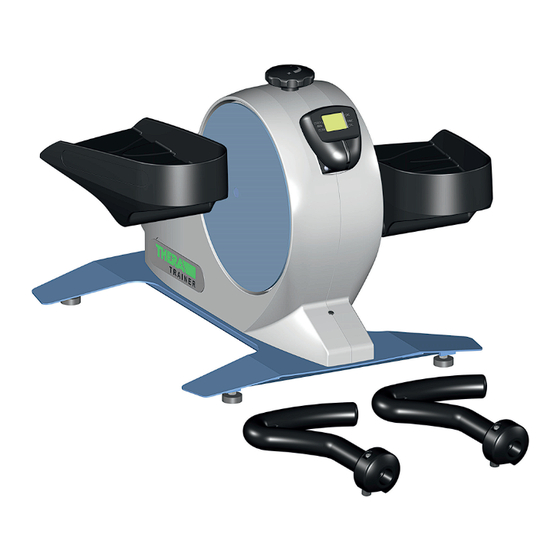

THERA-TRAINER ACTIVO
USER MANUAL
English translation of original user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THERA-Trainer ACTIVO

Summary of Contents for THERA-Trainer ACTIVO

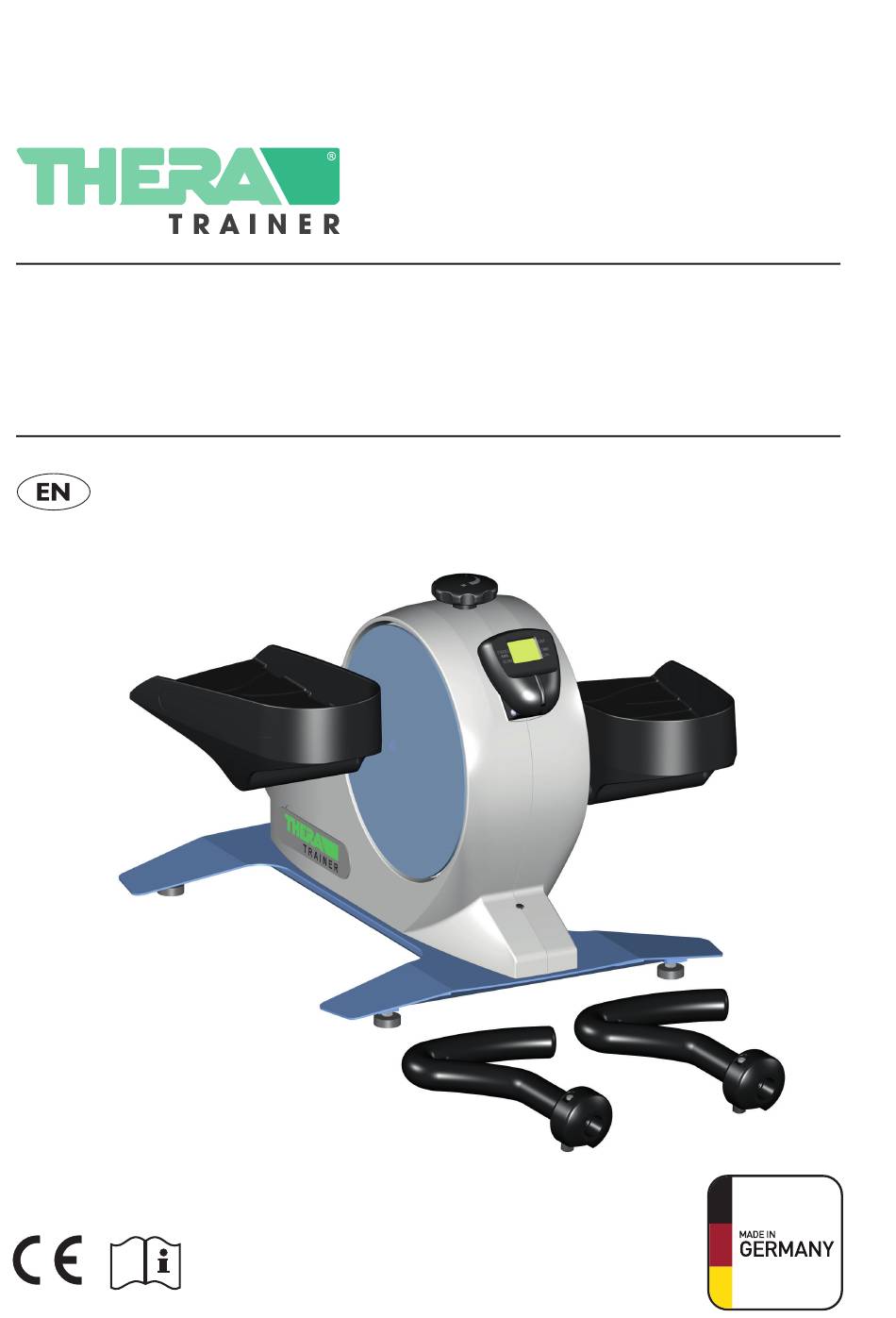

  • Page 1 THERA-TRAINER ACTIVO USER MANUAL English translation of original user manual...
  • Page 2 „Made in Germany“. This user manual will help you get to know your THERA-Trainer better. It will safely guide you through all functions and control options and provide you with tips and information on how to use your new exerciser best.

  • Page 3: Table Of Contents

    TRAINING WITH THERA-TRAINER ACTIVO ........

  • Page 4: User Guide

    THERA-Trainer activo - User manual USER GUIDE User manual and product are labelled with symbols. The symbols and their func- tions make it easier to use the product safely and efficiently. 1.1. Warning notices Structure of warning notices SIGNAL WORD! Type and source of danger! ...

  • Page 5: Symbols On The Product

     In case of amputated limbs, always wear prostheses when exercising with the THERA-Trainer activo.  In case of damage, malfunctions, etc. of the THERA-Trainer activo, contact trained supplier immediately.  Have any service or repair work carried out exclusively by trained suppliers.
  • Page 6  Do not stand on covers or in foot rests.  For leg exercise, use THERA-Trainer activo exclusively in a sitting position.  For upper body exercise, use THERA-Trainer activo in a sitting or standing position.  Always position THERA-Trainer activo correctly (forward) for exercising (control and display unit pointing toward user).

  • Page 7: Intended Use

    THERA-Trainer activo - User manual  Use exclusively the options listed by the manufacturer.  Make sure that THERA-Trainer activo or chair/wheelchair or chair does not slip while exercising.  Do not smoke while exercising.  Use exclusively cleaning agents and disinfectants approved by the manufactu- rer (see ch.

  • Page 8: Instruction

    (e.g. assistants).  To guarantee safe use of the THERA-Trainer activo, train expert staff regularly. 3.2. Instruction  Read and observe the user manual! Before the first start-up, the manufacturer recommends: ...

  • Page 9: Contraindications

    THERA-Trainer activo. Depending on the model, the user manual may include options not featured by the THERA-Trainer activo. If the THERA-Trainer activo features options not described in the user manual, an appendix will be included.

  • Page 10: Basic Equipment

    THERA-Trainer activo - User manual 6.2. Basic equipment Basic equipment of the THERA-Trainer activo:  Base unit – powder coated metal frame – height-adjustable feet – star-shaped handle for adjusting the resistance – crank disc without shearing points  Foot rests –...

  • Page 11: Removable Parts

    THERA-Trainer activo - User manual 6.4. Removable parts Removable parts of the THERA-Trainer activo: Name Article no. Foot rests A003-974 Velcro for foot rests 40000552-000 Therapy grips A001-420 Wristbands for therapy grips A002-440 Control and display unit A004-795 Carry bag for THERA-Trainer activo A003-976 Art.

  • Page 12: Overview

    START-UP 8.1. Unpacking Unpacking THERA-Trainer activo:  Remove THERA-Trainer activo from packaging.  Check THERA-Trainer activo incl. all accessories/options for transport damage.  Check if delivery is complete.  Inform supplier or forwarding agent immediately of any damage. Art. no.: A004-936_Rev 01...

  • Page 13: Set-Up Conditions

    Air humidity: 15 % - 93 % Rh – Air pressure: 700 hPa - 1,060 hPa – Do not use THERA-Trainer activo in wet, humid or hot environments. – For leg exercise, always put THERA-Trainer activo on even and skid-proof surface (floor).
  • Page 14 Adjusting height-adjustable feet To level out unevennesses of the floor, it is possible to adjust the height of the device's feet to improve the stability and slip resistance of the THERA-Trainer activo. Adjust feet (4) as follows:  Unscrew lock nuts 1 using a suitable tool.
  • Page 15  Connect plug 2 to socket 3 of control and display unit. Control and display unit is correctly connected when plug clicks into place.  Fix control and display unit to velcro patch 1 of THERA-Trainer activo. Art. no.: A004-936_Rev 01...

  • Page 16: Transporting Thera-Trainer Activo

    CAUTION! Risk of injury due to incorrect transport!  Make sure that THERA-Trainer activo is carried exclusively by a person who is able to bear approx. 11 kg of weight.  Carry THERA-Trainer activo exclusively with dry and grease-free hands.

  • Page 17: Starting Up The Control And Display Unit

     Put chair/wheelchair on even and slip-proof floor.  For upper body exercise, always put THERA-Trainer activo on a stable and height- adjustable table with a slip-proof surface.  Make sure that feet of device are dry and free of dust.

  • Page 18: Foot Rests

    THERA-Trainer activo - User manual CAUTION! Risk of injury due to insufficient preparation!  Disinfect THERA-Trainer activo before every training (see ch. 13. Cleaning and disin- fection).  Make sure that foot rests or therapy grips are moving freely. CAUTION!

  • Page 19: Therapy Grips

    THERA-Trainer activo - User manual Install foot rests as follows:  Press locking bolt 3.  Slide foot rests 1 onto crank axle 2 up to the stop.  Release locking bolt.  Make sure that locking bolts audibly click into place.
  • Page 20 THERA-Trainer activo - User manual Replacing therapy grips CAUTION! Risk of injury due to incorrectly installed therapy grips!  Slide therapy grips onto crank axle up to the stop.  Make sure that locking bolt audibly clicks into place. Remove therapy grips as follows: ...

  • Page 21: Training Requirements

    TRAINING REQUIREMENTS CAUTION! Risk of injury due to insufficient preparation!  Disinfect THERA-Trainer activo before every training (see ch. 13. Cleaning and disin- fection).  Before every training session, clean feet of device to improve stability and slip resi- stance.

  • Page 22: Fields Of Use

     Secure arms or legs sufficiently. 10.1. Fields of use THERA-Trainer activo  leg exerciser  upper body exerciser With the THERA-Trainer activo, exclusively active exercise is possible. THERA-Trainer activo is especially recommended for:  general age-related infirmity  diabetes mellitus ...

  • Page 23: Training Schedule

     For leg exercise, put THERA-Trainer activo on even and skid-proof floor.  For upper body exercise, put THERA-Trainer activo on a stable and height- adjustable table with a slip-proof surface.

  • Page 24: Setting The Brake Resistance

     Do not stand in foot rests.  Always exercise with both feet in the foot rests. 11.3. Upper body exercise  THERA-Trainer activo permits active upper body exercise.  Make sure that therapy grips are safely attached to crank shaft when doing upper body exercises.

  • Page 25: Control And Display Unit

    THERA-Trainer activo - User manual 12. CONTROL AND DISPLAY UNIT Function of control button  Press control button 2 to switch on control and display unit.  Press control button repeatedly to navigate between training parameters when automatic changing (SCAN) is deactivated.
  • Page 26  Soak velcros and wristbands for therapy grips in a watery alcohol-based disinfectant solution to disinfect.  Allow disinfected parts to dry completely.  Only use THERA-Trainer activo again after contact time and drying time defin- ed by disinfectant manufacturer is over.  Clean feet of device before every training session.

  • Page 27: Maintenance And Repair

     Dispose of used battery in an environmentally responsible way.  Close battery compartment 4.  Connect plug 2 to control and display unit.  Fix control and display unit to THERA-Trainer activo using velcro patch 1. Art. no.: A004-936_Rev 01 Last update: CW37/2015...

  • Page 28: Troubleshooting

    Battery AAA (LR03) 1.5 V 17. DISPOSAL To dispose of the THERA-Trainer activo:  Observe country-specific regulations and specifications.  Dispose of metal parts as scrap metal.  Dispose of plastic parts as prescribed, depending on the type of material.

  • Page 29: Warranty

    THERA-Trainer activo - User manual 18. WARRANTY In accordance with legal regulations, the manufacturer grants a manufacturer's warranty for the THERA-Trainer activo if it is handled with due care. The basis is the date of delivery. Excluded from manufacturer's warranty: ...
  • Page 30 THERA-Trainer activo - User manual NOTES Art. no.: A004-936_Rev 01 Last update: CW37/2015...
  • Page 31 THERA-Trainer activo - User manual NOTES Art. no.: A004-936_Rev 01 Last update: CW37/2015...
  • Page 32 MANUFACTURER: THERA-Trainer  a trademark of medica Medizintechnik GmbH Blumenweg 8 88454 Hochdorf Germany Phone: +49 7355-93 14-0 Fax: +49 7355-93 14-15 E-mail: info@thera-trainer.de Internet: www.thera-trainer.de Art. no.: A004-936_Rev 01 Last update: CW37/2015 For declarations of conformity, see www.thera-trainer.de...
