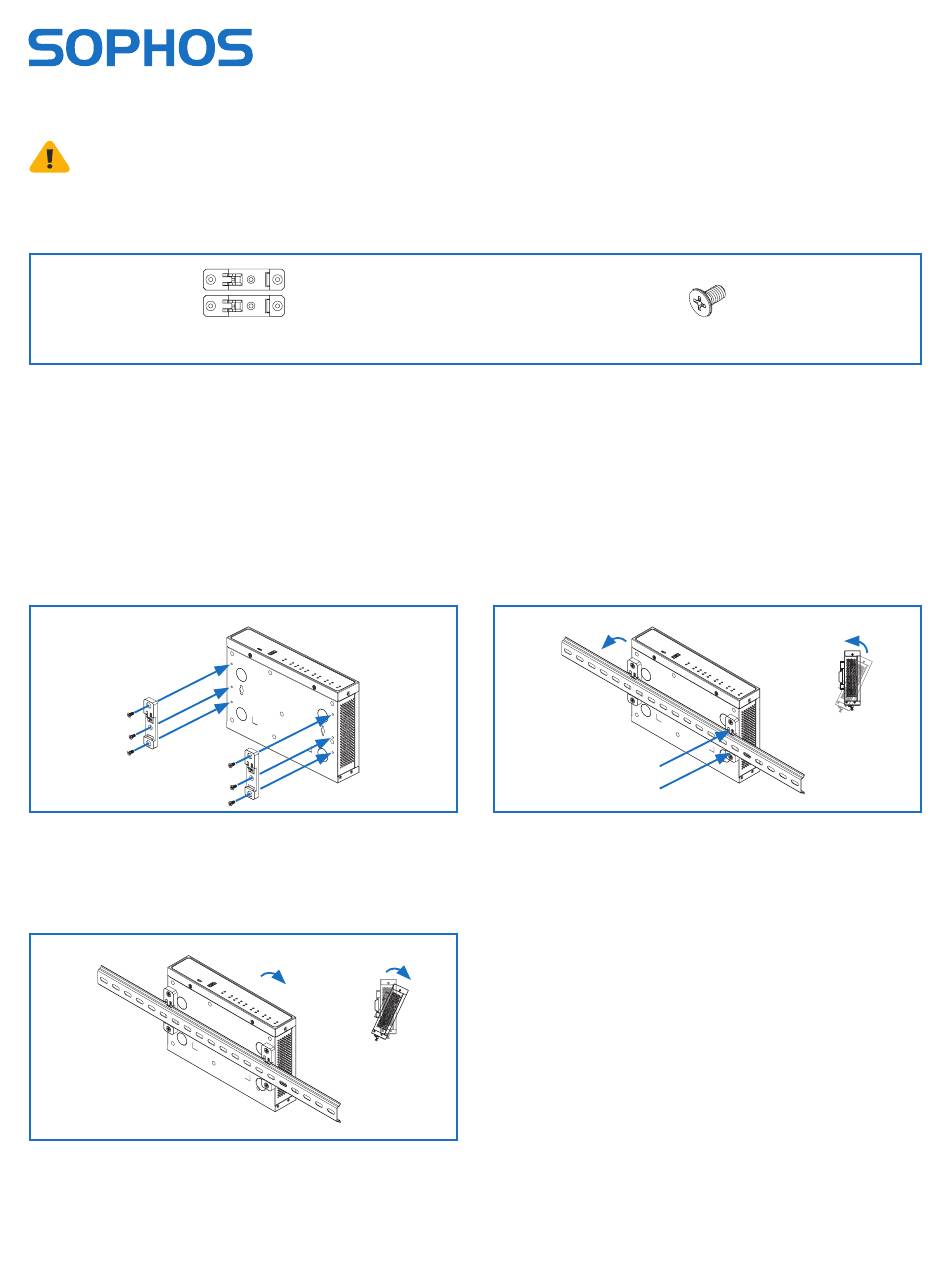

Sophos SD-RED 20 Mounting Instructions

DIN Rail Kit Mounting Instructions
Please note
This DIN Rail kit can only be used with SD-RED 20 and SD-RED 60 models
What is included in the box
2 DIN Rail mounting adapter
In addition to the rack mounting kit contents, you will need a long-handed Phillips-head screwdriver.
1. Install the mounting adapters to the Chassis
Place one adapter on each side at the bottom of the
chassis and secure it using three of the supplied
screws.
1.
3. Removing the chassis from the DIN Rail
To remove the chassis from the rail just pull it back
on the flexible side of the adapters.
3.
United Kingdom and Worldwide Sales
Tel: +44 (0)8447 671131
Email: sales@sophos.com
© Copyright 2019. Sophos Ltd. All rights reserved.
Sophos is the registered trademark of Sophos Ltd.
Pull
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
SD-RED 20, SD-RED 60
6 flat head M3 screws
2. Mount the chassis to the DIN Rail
Hold the chassis to the DIN Rail and hang it with the
fixed parts of the adapters on one side of the DIN
Rail. Push the chassis towards the DIN Rail until the
flexible part of the adapters snap in to the DIN Rail.
Make sure that the chassis is securly fixed.
Push
Flexible
Fixed
2.
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
Asia Sales
Tel: +65 62244168
Email: salesasia@sophos.com
19-08-22 (DD)
