Axminster UJK Pro Router Table Original Instructions Manual page 21

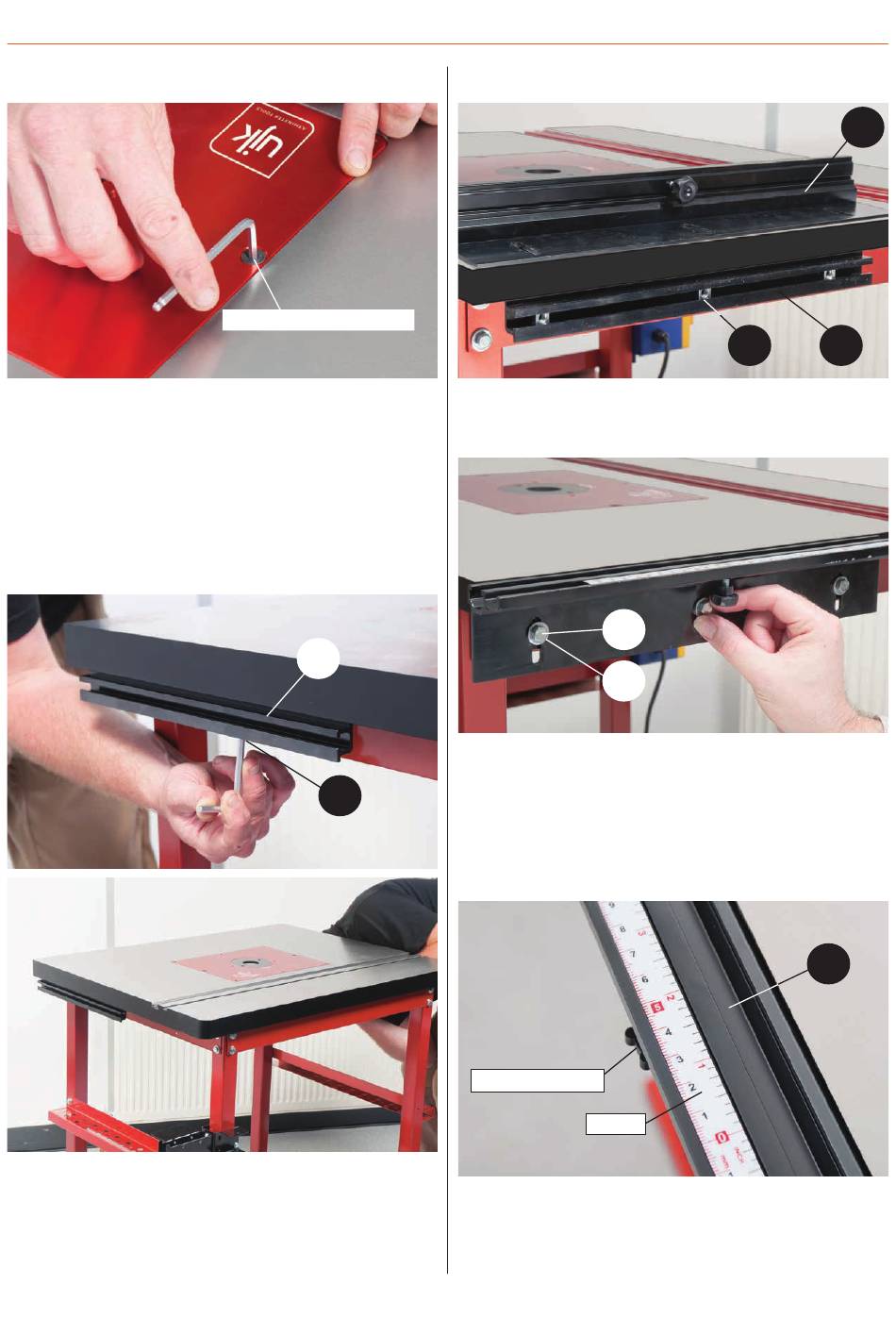

Fig 33
UJK Fence Assembly
Step 1 Locate the fence fixing brackets (O) and the
eight Hex bolts (f). Line up one of the brackets with the
pre-drilled holes beneath the edge of the table and secure
in place with four Hex bolt (f), see figs 34-35. Repeat for
opposite side.
Fig 34-35
Step 2 Insert three (1/4") square nuts (h) into the machined
slot to each fixing bracket (O), see fig 36. Locate the two
fence fixing brackets (P), M6 Hex screws (e) and flat washers
(j), line up the machined slots in the bracket (P) with the
square nuts (h) and secure both brackets with M6 Hex
screws (e), see fig 37. DO NOT OVERTIGHTEN
Countersink Hex screw
O
f
Step 3 Loosen the two locking knobs beneath the fixing
brackets (P), slide the two scales into the top of fixing
brackets recess and lightly tighten the knobs, see fig 38.
Locking knob
Scale
Step 4 Locate the two lock Hex nuts (g) and slide each one
into the machined recess in the fixing brackets (P), see fig
39.
21
Assembly
h
e
j
Continues Over...
Fig 36
P
O
Fig 37
Fig 38
P
