Code 108333
Original Instructions
AP254SB
Sliding Table
AT: 17/04/2023
BOOK VERSION: 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL AP254SB and is the answer not in the manual?

Questions and answers

Related Manuals for Axminster PROFESSIONAL AP254SB

Summary of Contents for Axminster PROFESSIONAL AP254SB

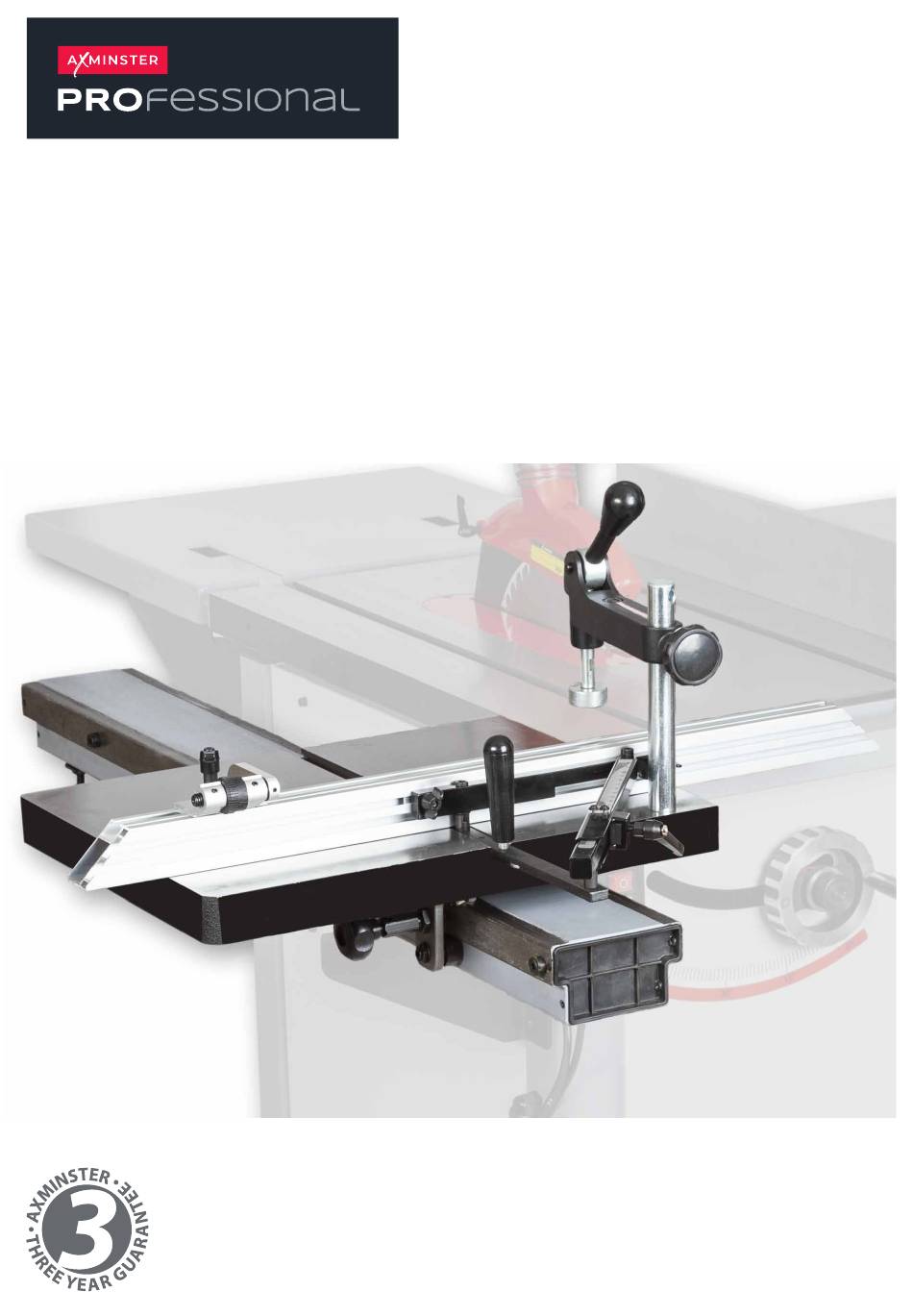

  • Page 1 Code 108333 Original Instructions AP254SB Sliding Table AT: 17/04/2023 BOOK VERSION: 01...

  • Page 2: Table Of Contents

    INDEX OF CONTENTS What’s Included 02-03 Assembly Fitting the Rail Brackets Fitting the Sliding Table Support Rail Fitting the Sliding Table 04-05 Fitting the Angle Gauge Fitting the Angle Gauge Sliding Table Fence Fitting the Distance Repeat Stop Fitting the Hold Down Clamp Set Up / Alignment Levelling the Sliding Table to the Main Table 06-07...

  • Page 3: What's Included

    WHAT’S INCLUDED ASSEMBLY Fig 02-03 Fitting the Rail Brackets 1. Locate the two rail support angle brackets and the four M8 cap head bolts/washers (A). 2. Offer up the two holes in each support bracket (A) with the threaded holes to the left hand side of the ‘Table Saws’...

  • Page 4: Fitting The Sliding Table Support Rail

    ASSEMBLY Fig 08-09 Fitting the Sliding Table Support Rail 1. Locate the support rail (B), turn over and remove the first nut and washer from each of the threaded studs and place safely aside, see fig 04-05. Fig 04-05 Locking nut 3.

  • Page 5: Fitting The Angle Gauge

    ASSEMBLY Fig 12-13 Fig 15-16 Threaded holes recessed hole Adjusting nut 3. Line up the recessed hole in the angle gauge support bar with one of the threaded holes in the table and 2. Place a straight edge a crossed both tables, see fig 12. replace the cap head bolt you removed earlier, see fig 16.

  • Page 6: Fitting The Distance Repeat Stop

    ASSEMBLY Fitting the Distance Repeat Stop Fitting the Hold Down Clamp Locate the distance repeat stop (D), loosen the clamping Find the hold down clamp assembly (E) and support bar handle on the distance stop, insert the ‘T’ bolt into the ‘T’ (F).

  • Page 7: Aligning To The Blade

    SET UP / ALIGNMENT Fig 27-28 Fig 31-32 3. If the table appears too high, it will need to be lowered, see fig 27. 4. There are four adjusting bolts located on the underside of the rail, these bolts will allow movement of the rail & table for height &...

  • Page 8: Squaring To The Blade

    SET UP / ALIGNMENT Fig 34-35 Fig 38 4. The gap between the edge of the sliding table & the edge of the main saw table should be a 1-2mm consistent front to back, see fig 38. 5. This can be also checked against the blade. Wind the blade up to its highest point then by slide the fence over to make very light contact with one of the blades tips at the front, slide through and check this also at the back of...
  • Page 9 SET UP / ALIGNMENT Fig 41-42 Fig 45-46 The only true way of checking to see if a sliding table is Fig 43-44 aligned and square to the blade is to perform some test cuts. Check alignment by performing a test cut, this is best done on MDF as the cut results are clearer.
  • Page 10 SET UP / ALIGNMENT • The rotate the board clockwise so that the first cut edge Fig 50 is against the fence, see fig 48. Fig 48 • The 5th cut will be a larger cut of around 1cm, cutting off the very first cut edge, see fig 51.
  • Page 11 SET UP / ALIGNMENT • Measure both ends of the 5th cut strip, see fig 52-53. Fig 52-53 • Generally, only very subtle adjustments will need to be made. Remember the amount of measurement difference from one end to another is four times the adjustment that needs to be made.

  • Page 12: Exploded Diagram / Parts List

    EXPLODED DIAGRAM / PARTS LIST...
  • Page 13 EXPLODED DIAGRAM / PARTS LIST Description Hex. Socket Countersunk Screw M5X8 Front Supporting Bracket,Sliding Table Sliding Table Rail Rail Thin Hex. Nut M10 Rear Supporting Bracket,Sliding Table Rail Hex. Nut M10 Sliding Table Washer 10 Roller A Stud,Hold Down Roller B Arm,Hold Down Hex.
  • Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
