Axminster UJK Pro Router Table Original Instructions Manual page 18

Assembly

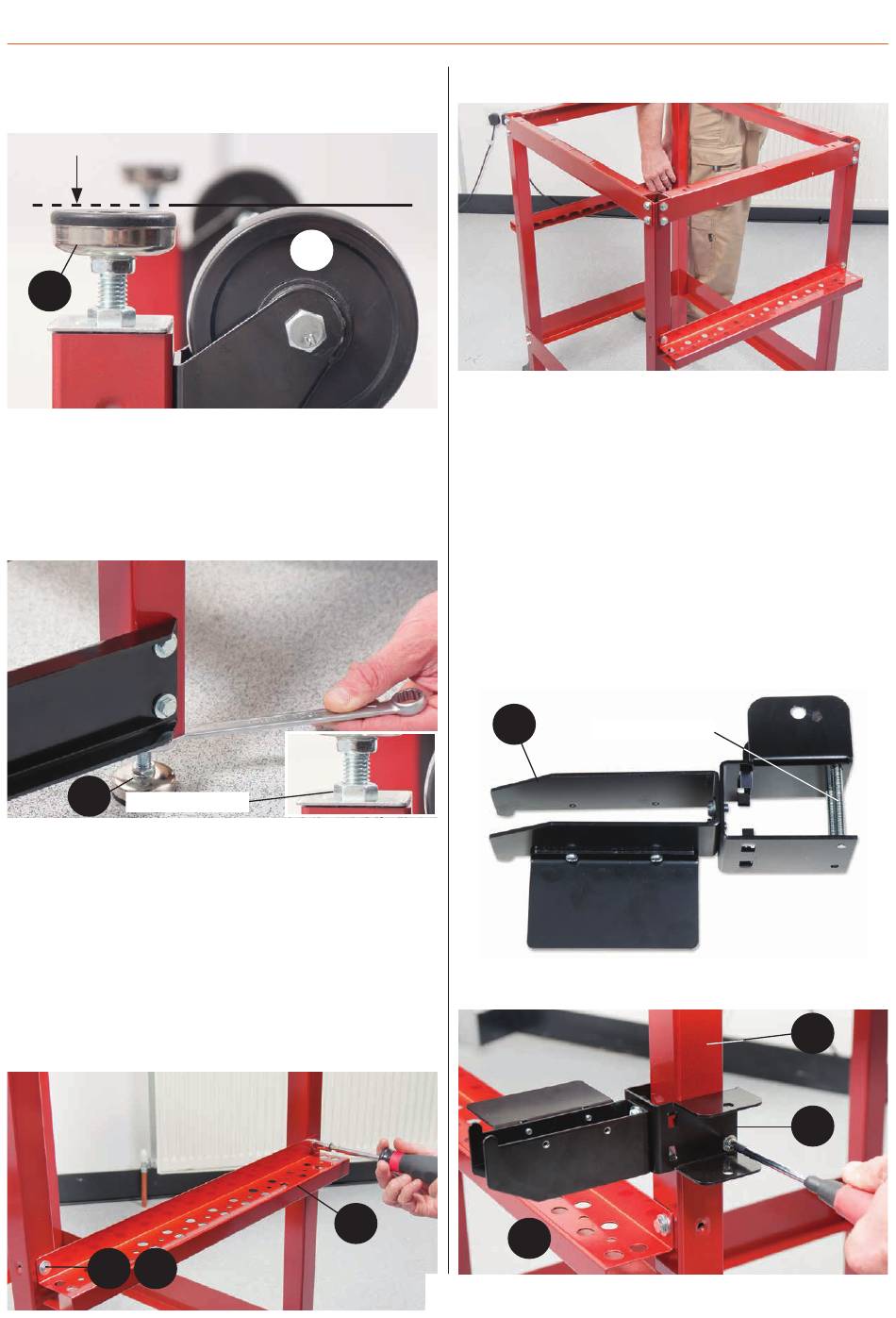

Adjust the foot (4) until it's level with the top of the wheel
(a), see image below. Repeat for the other side.
4
Step 12 Turn the stand upright, place a level on top of the
stand and adjust the nuts on the front feet (4) until the
stand is level and the mobility wheel operates correctly,
see fig 18.
Fig 18
4
Adjustable nut
Cutter Holder Assembly
Step 13 Locate the two cutter holders (F) and four M6 bolts
and washers (1-2). Line up the pre-drilled holes in the cutter
holder with the threaded holes to ends of the upright sup-
ports (A), secure using two M6 bolts and washer, see fig 19.
Repeat for the opposite side, see fig 20.
Fig 19
1 2
a
Mitre Fence Tool Rest Assembly
Step 14 Locate the mitre fence tool rest (K), see fig 21,
remove the two Phillips screws from the tool rest and place
safely aside. From the front of the stand position the tool
rest over the left upright support column (A), above the
cutter holder (F). Replace the Phillips screws and tighten,
see fig 22
The tool rest (K) can be reposition to face inside the stand,
see fig 23.
F
18
K
Phillips screws
F
Fig 20
Fig 21
Fig 22
A
K
