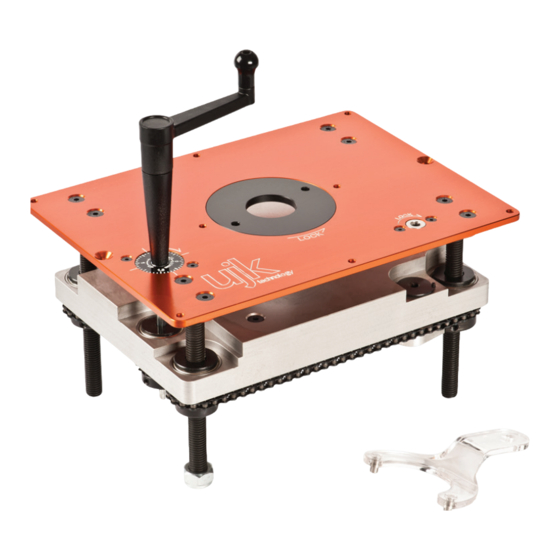

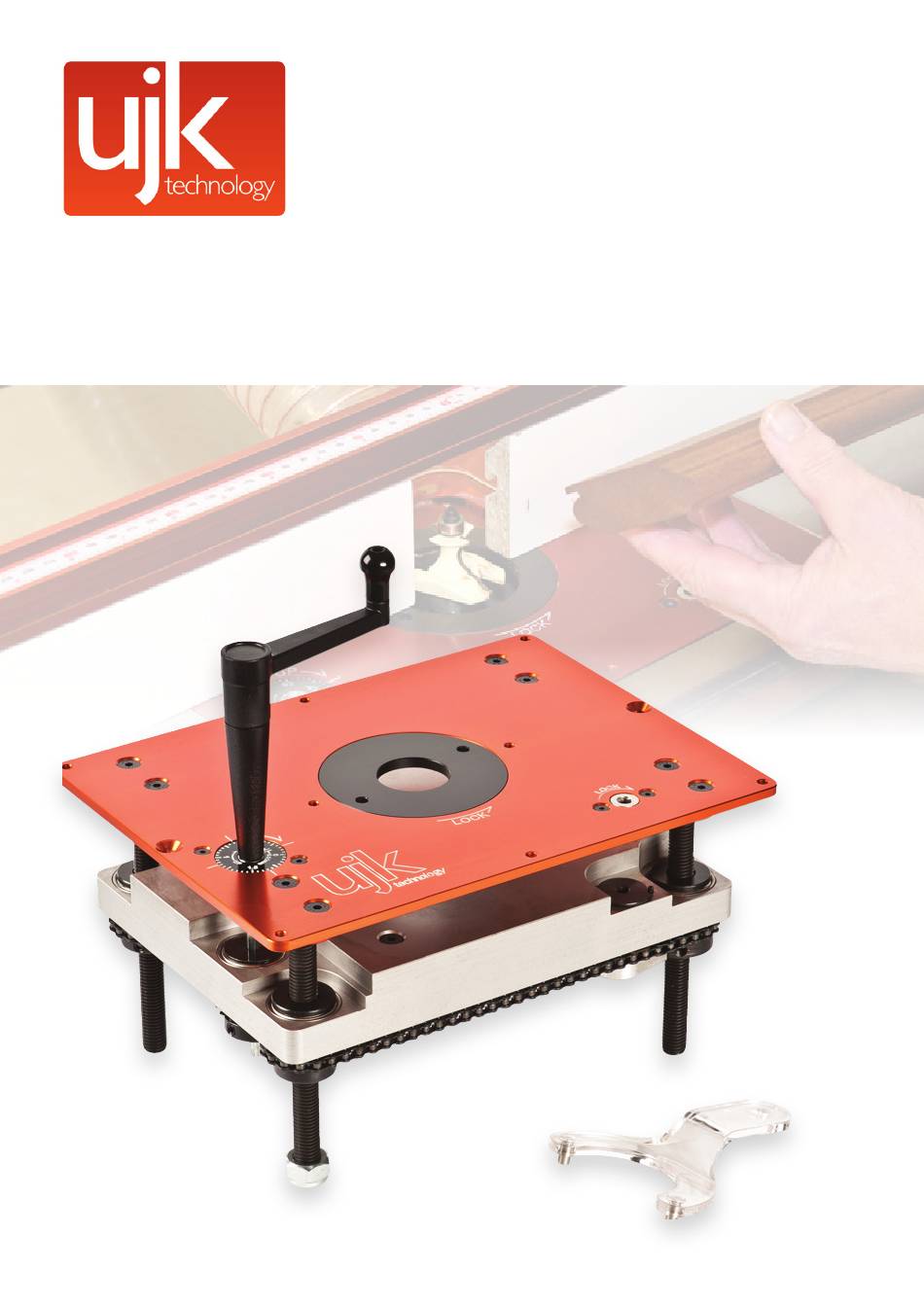

- Page 1 Code 502701 Router Elevator Fast accurate height adjustment from above the table AT&M: 29/08/2018...
-
Page 2: Table Of Contents
Parts List 14-15 Copyright This product has been wholly designed by Axminster Power Tool Centre Ltd who have exclusive use of the design. As such it should not be copied or reproduced. Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. -
Page 3: What's Included
What’s Included Quantity Item Model Number 1 No. Router Elevator with Measurement Dial 502701 (router mounting plate and table Insert fitted) 1 No. Winding Handle 1 No. Packet containing:- 6 No. M6 Grub Screws 2 No. M6 Countersunk Bolts 1 No. Nippled ‘Y’... -
Page 4: What's Included
”What’s in the box” , if there are any discrepancies, please readily accessible for any others who may also be required contact Axminster Tool Centre using the procedures laid to use the machine. down in the catalogue. Please dispose of the packaging responsibly;... -
Page 5: Dimensions Position Diagram
Dimensions Position Diagram... -
Page 6: Illustration & Description Of The Router Elevator
Illustration & Description of the Router Elevator Lock Turn the handle clock-wise to raise the table Locking the table in position 38mm Table insert x4 Grub screw hole for x2 Grub screw hole for levelling function support functions x2 Countersunk hole Winding handle Machine table... -
Page 7: Illustration & Description Of The Router Elevator
Illustration & Description of the Router Elevator Lock Un-Lock Insert the Nippled “Y” wrench into the table insert Remove the table insert and place safely aside and turn un-clockwise to remove the insert Machine table Locking mechanism Idler sprocket Sprocket Drive sprocket Clamping lug Universal router... - Page 8 Fitting the Router and the Cutters Introduction The information below is reproduced from the Axminster different router models to the router elevator base plate. universal base plate fitting instructions and the hole layout For advice on models suitable for fitting to the router elevator please call our technical sales team on 0800 on the router elevator base plate is identical.
- Page 9 Fitting the Router and the Cutters Universal Base Plate 176mm...
- Page 10 Fitting the Router and the Cutters IN ORDER TO FIT SOME OF THE ROUTERS TO THE ELEVATOR AND ACHIEVE UNRESTRICTED MOVEMENT, IT MAY BE NECESSARY TO REMOVE THE HANDLES; PLUNGE THE ROUTER BODY TO DEPTH, ETC., ETC. Sole plate Lower the table to almost its fullest extent. Using the Allen key provided loosen the bolts and therefore the lugs holding the universal mounting plate (UMP) in position and remove.
-
Page 11: Setup/Operating Instructions
Axminster No. 211367. (See Page 4) When everything is assembled to your satisfaction. Check the speed setting of the router is correct for the cutter diameter. -
Page 12: Maintenance
Maintenance The router elevator requires minimum maintenance, but you are advised to observe the following points:- 1. Keep the elevator clean. Ensure that dust/chips etc., are cleaned away at the end of a work session. 2. Do not allow a build up of dust/chips etc., between the machine table and the rise and fall platform, or under the machine, where it may foul the chain drive. -
Page 13: Parts Drawing
Parts Drawing... -
Page 14: Parts List
Parts List Index Part No Description Size 60700001 Aluminum Carriage Bracket 60500002 Main Gear Shaft 60500003 Lead Screw 60100017 Insert Ring 60500005 Gear Shaft 60500006 Upper Guide Nut 60700008 Upper Guide Nut Base 60700007 Top Table 60700031 Starter Pin 906M06025 Round Head Screw M6 x 25 60500009... -
Page 15: Parts List
Parts List 9180404018A M4 x 4 x 12 9236804Z0 Ball Bearing 6804ZZ 60700009B Crank Handle Sleeve 9236900Z0 Ball Bearing 6900ZZ 903M06030 Flat Head Cap Screw M6x30 60700020 Chain 919S01000 C-Ring 917M03018 Lock Pin M3 x 18 60100018 Insert Wrench 910M06000 Hex Nut 1/4”... - Page 16 The UJK technology brand was launched by Axminster in 2012 with the deliberate intention of encompassing a range of carefully selected products that we hold in high esteem. Many of these products are designed by us and are manufactured here in the United Kingdom, whilst those that are not are entrusted to one of our most respected Far Eastern suppliers.
