Quick Start Guide

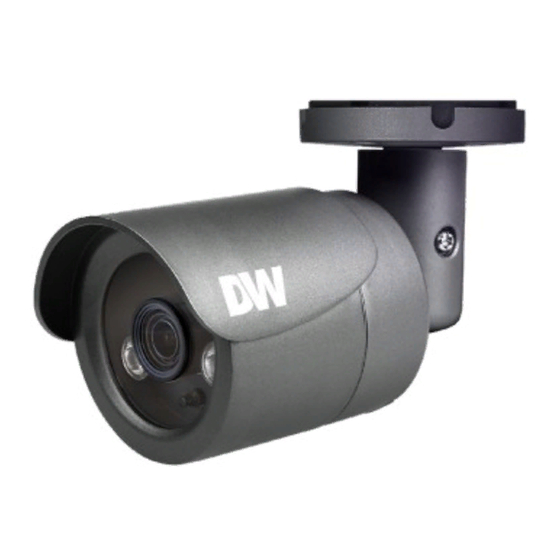

DWC-MB72Wi4T
Default Login Information: admin | admin
When logging into the camera for the first time, you will be prompted
to set up a new password. You can set the new password using the
DW® IP Finder™ software or directly from the camera's browser menu.
WHAT'S IN THE BOX
Quick setup Screws and
and download 1 set plastic anchors
guides – 4pcs
Mounting Hex Allen
1
template wrench
Waterproof
1 set
cap
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for the initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line
cover can be damaged. This may cause a short or fire.
3. Using the mounting template sheet or the camera itself, mark and drill
the necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO THE POWER
Pass the wires through the bracket and make all necessary connections.
1. NETWORK CONNECTIONS - If you are using a PoE switch, connect
the camera using an Ethernet cable for both data and power.
2. NETWORK CONNECTIONS - If you are using a non-PoE switch,
connect the camera to the switch using an Ethernet cable for data
transmission and use a power adapter to power the camera.
Power requirements
DC 12V, PoE (IEEE 802.3af Class 2)
Adapter not included.

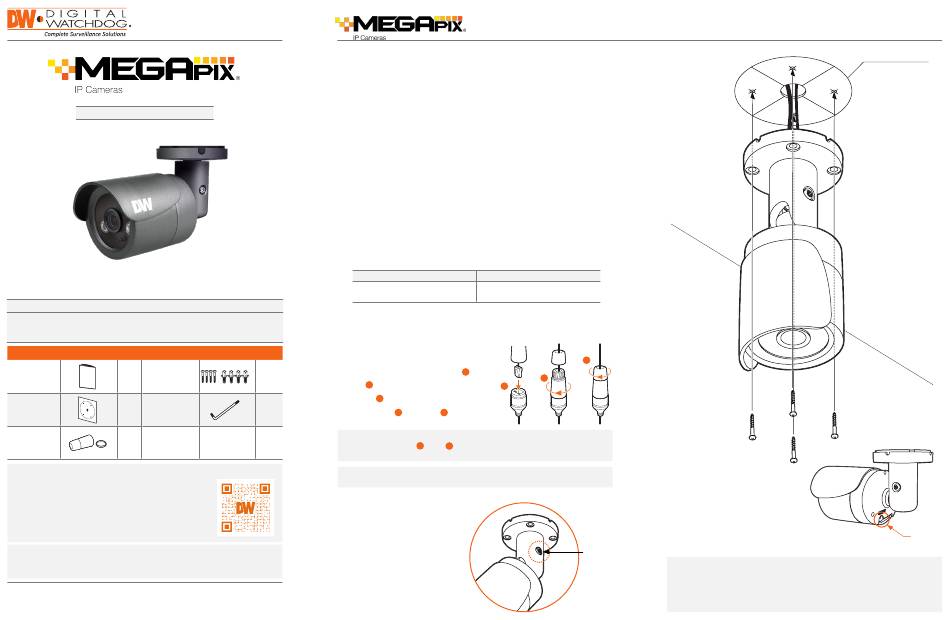

STEP 3 – INSTALLING THE CAMERA
1. Attach the camera's bracket to the mounting surface using the
included four (4) screws.
2. To use the camera's waterproof wiring:
a. Install the LAN cable into
1 set
b. b will be assembled
to with a 1/4 turn.
a
1
c. Thread
NOTE: To ensure moisture seal, make sure the o-ring is in place
between
outdoor rated sealer is recommended.
NOTE: When using the waterproof cap, crimp the RJ45 connector
after passing the cable through the waterproof cap.
3. Loosen the pan and tilt screw
at the base of the camera's
bracket to adjust the camera's
view and position.
digital-watchdog.com
Power consumption
DC12V: max 4.5W
PoE: max 6.0W
a .
b
a
tightly to .
c b
and . In extreme environments use of an
a b
c
Pan / tilt
screw
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for five (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
Quick Start Guide
Mounting template
Reset
button
