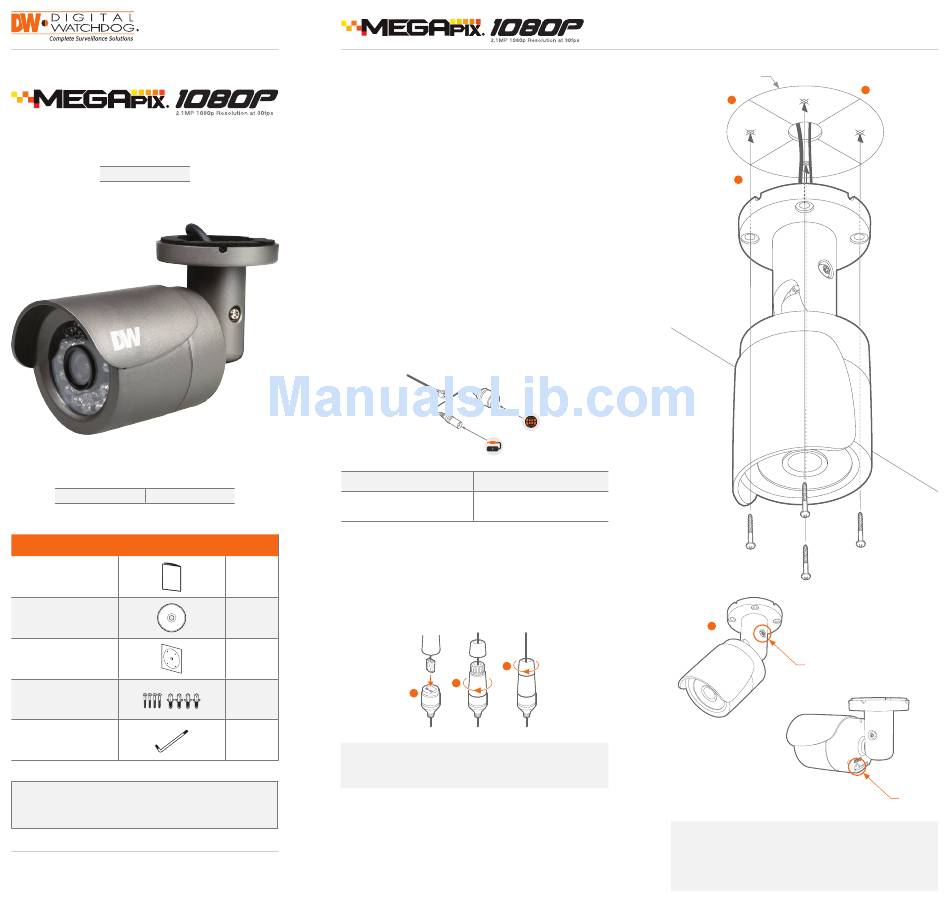

Digital Watchdog MEGApix DWC-MB72I4V Quick Start Manual

Quick Start Guide
DWC-MB72I4V
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual
Manual CD
Template Sheet
Screw & Plastic Anchor – 4pcs
Torx Wrench
Attention: This document is intended to serve as a quick reference page for
initial set-up. It is recommended that the user read the entire instruction
manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your
camera.
2. Do not let the cables get caught in improper places or the electric
line cover to be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL
4. Pass the wires through the mount bracket and make all necessary
connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch,
connect the camera using an Ethernet cable for both data and
power.
b. NETWORK CONNECTIONS – If you are using a non-PoE
switch, connect the camera to the switch using an Ethernet
cable for data transmission and use a power adapter to power
the camera.
Power Requirements
DC 12V
PoE IEEE 802.3atPoE+ / PoE Class 2
Step 3 – INSTALLING THE CAMERA
5. To use the camera's water proof wiring:
1 Set
( 1 ) .
Install the LAN cable into (a).
( 2 ) .
(b) will be assembled to (a) with a 1/4 turn.
( 3 ) .
Thread (c) tightly to (b).
1 Set
1 Set
1 Set
1 Set
Note: To ensure moisture seal, make sure the o-ring is in place
between (a) and (b). In extreme environments use of an
outdoor rated sealer is recommended.
6. Before mounting the camera, loosen the pan/tilt screw on the side
of the camera's bracket. This will make adjustment after mounting
the camera easier.
7. Fix the camera on to the mounting surface using the screws
included with the camera.
digital-watchdog.com
8. Adjust the camera's pan and tilt. Tighten the pan/tilt screw on the
camera's bracket until it is secured properly.
DEVICES
NETWORK
CONNECTION
POWER
Power Consumption
LED Off: 1.92W, 160mA
LED On: 2.7W, 230mA (IR models only)
c
b
a
Quick Start Guide
Template
Sheet
1
3
2
8
Pan/Tilt
Screw
Resetting the camera: To reset the camera, use the tip of
a paper clip or a pencil and press the reset button. Pressing
the button for five (5) seconds will initiate a camera-wide reset
of all the settings, including network settings.
Reset
Button
