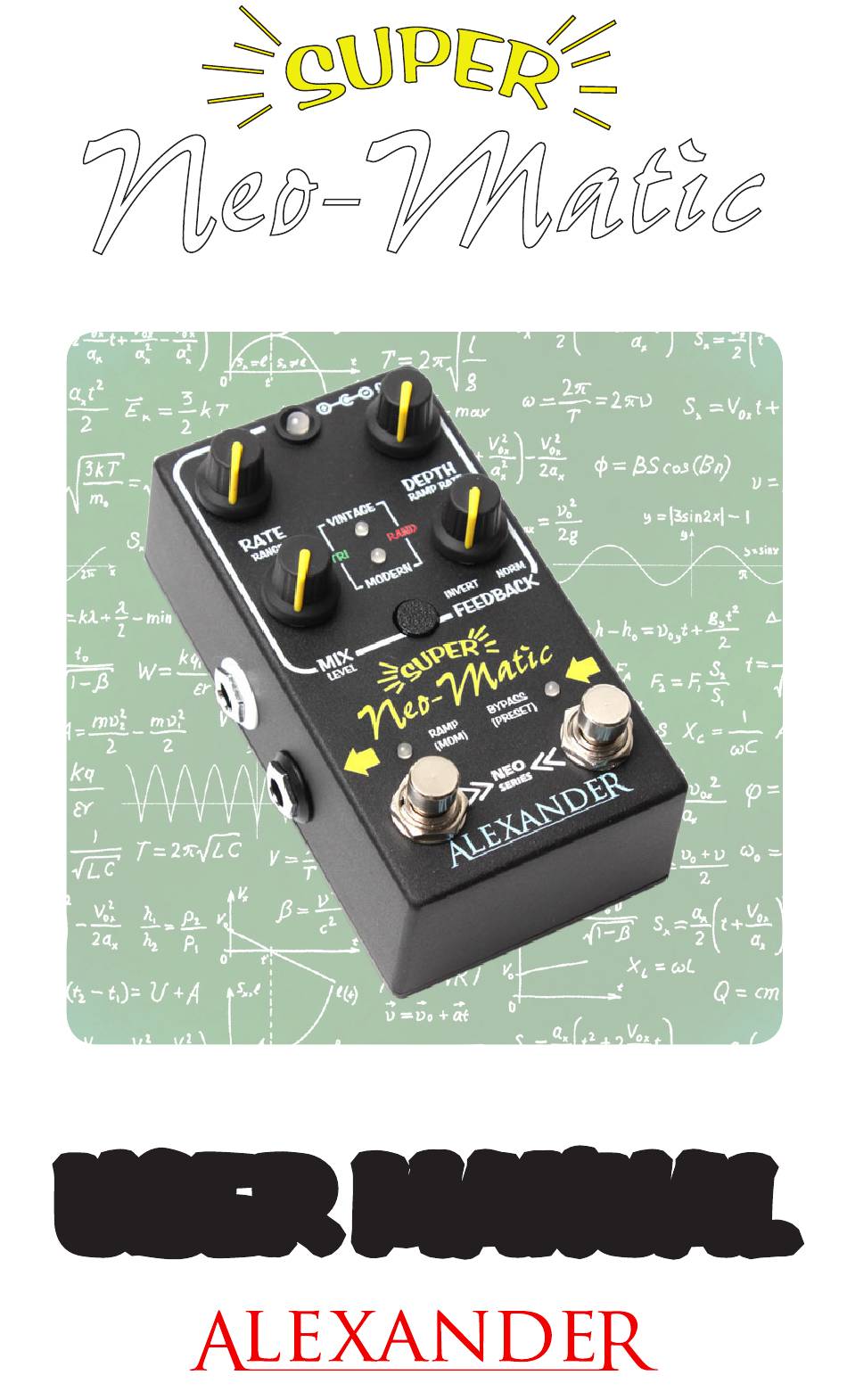

  • Page 1 Neo-Matic USER MANUAL G R E A T T O N E S . D O I N G G O O D .

  • Page 2: Table Of Contents

    Alexander Pedals was started for two reasons - to make great tones, and to do good. The great tones part you probably have some idea about. As for doing good, Alexander Pedals donates a portion of the profits from every pedal sold to charity, whether you buy from us or our dealers.

  • Page 3: I Ntroduction

    Super Neo-Matic is pretty much like any other pedal. Plug in on the right side, then plug the lower jack on the left side to your amp or next pedal. Power it up, hit the footswitch and see...

  • Page 4: S Ounds And

    And ontrols Super Neo-Matic does a lot of stuff, but that doesn’t mean that it’s hard to use! Generally you can just turn the knobs on the pedal and explore new sounds, but we put a few extra controls on the pedal that we think you can use.
  • Page 5 ounds And ontrols Continued VINTAGE RANDOM (upper red) Random delay modulation! Set the Depth knob low for subtle doubling and chorus effects, or up high to make some robot barf. The vintage version of this mode uses a low bit rate and sampling frequency to get real gritty. Higher Depth settings can cause glitching.

  • Page 6: L Oading And

    Presets to the rescue! Super Neo-Matic and all of our other Neo Series pedals have built-in preset capability. That means you can save and recall four sounds from a single pedal with no extra hardware or funny business.

  • Page 7: W Arp

    If you want to engage RAMP for a short time, for example to accentuate a phrase, you can hold the left footswitch to engage To set the normal and RAMP sounds on Super Neo-Matic, first tap TAP TO TOGGLE the left footswitch until the RAMP LED is off.

  • Page 8: S Etting U

    ettinG edAl Your Neo Series pedal has a few user settings stored in memory. These settings include the function of the MultiJack on the left side of the pedal, LED brightness, and others. To enter setup, power on the pedal and then hold down the center Select button.

  • Page 9: E Xpression P Edal

    Super Neo-Matic supports most types of expression pedals for performance control. We recommend the Roland EV-5 and Moog EP-3, but just about any expression pedal that uses a TRS cable should work. The supported expression wiring is SLEEVE = 0V, RING = 3.3V, TIP = 0-3.3V.

  • Page 10: N Eo F Ootswitch

    Super Neo-Matic also supports our Neo Footswitch for preset Select or Ramp functions. To use the Neo Footswitch, you’ll need to configure Super Neo-Matic to use its MultiJack for footswitch input. Consult the instructions on page 6, Setting Up Your Pedal.
  • Page 11 C onFiGurAtion All Neo Series pedals support full control using MIDI. In order to use your Super Neo-Matic with a MIDI controller, you’ll need to follow these instructions to configure its MultiJack and set up the MIDI channel. First, you’ll need a way to connect your MIDI controller to the MultiJack.

  • Page 12: Midi C Ommands

    MIDI Continuous Controller 59: Mode Select 0: Vintage Triangle 2: Vintage Random Modern Triangle 3: Modern Random Super Neo-Matic does not respond to MIDI Beat Clock and does not have tap tempo capability. PeCiFiCAtions Input Impedance: 1M ohm Output Impedance: 560 ohm...
